What is the Mitsubishi Electric FX5-CCLIEF?

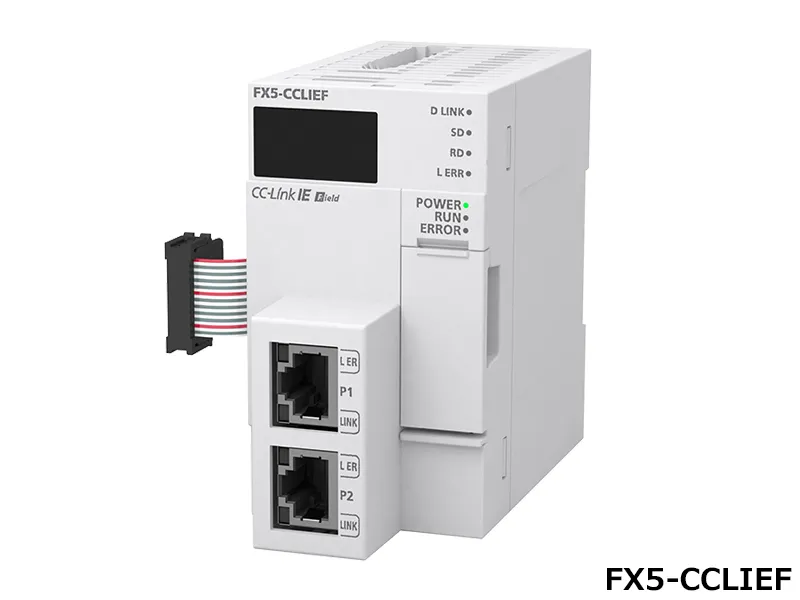

The Mitsubishi Electric FX5-CCLIEF is a network/communication module in the MELSEC iQ-F Series. CC-Link IE field network Intelligent device station module. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC iQ-F Series
CategoryNetwork/communication module
OutlineCC-Link IE field network Intelligent device station module

Specifications

Applicable CPU moduleFX5UJ CPU module: From the first FX5U CPU module: Ver. 1.030 or later FX5UC CPU module*: Ver. 1.030 or later * FX5-CNV-IFC or FX5-C1PS-5V is required to connect to the FX5UC CPU module.
Number of occupied I/O points8 points
Mass (weight)Approx. 0.3 kg
Communication methodToken passing
Communication speed1 Gbps
Network topologyLine topology, star topology (coexistence of line topology and star topology is also possible), and ring topology
Station typeIntelligent device station
Station number1 to 120 (set by parameter or program)
Maximum number of link points: RX384 points, 48 bytes The maximum number of points that a manager station can assign to one FX5-CCLIEF unit.
Maximum number of link points: RY384 points, 48 bytes The maximum number of points that a manager station can assign to one FX5-CCLIEF unit.
Maximum number of link points: RWr1024 points, 2048 bytes The maximum number of points that a manager station can assign to one FX5-CCLIEF unit. 256 points (512 bytes) when the mode of the manager station is online (high-speed mode).
Maximum number of link points: RWw1024 points, 2048 bytes The maximum number of points that a manager station can assign to one FX5-CCLIEF unit. 256 points (512 bytes) when the mode of the manager station is online (high-speed mode).
Maximum station-to-station distance100 m (conforms to ANSI/TIA/EIA-568-B (Category 5e))
Number of cascade connectionsMax. 20 stages

Power supply specifications

External power supply: Power supply voltage24 V DC +20%/-15% ripple (p-p) 5% or less
External power supply: Allowable instantaneous power failure timePS1: Operation continues when the instantaneous power failure is shorter than 1 ms.
External power supply: Current consumption230 mA
Internal power supply: Power supply voltage5 V DC
Internal power supply: Current consumption10 mA

The general specifications other than below are the same as those for the CPU module.

Dielectric withstand voltage: Between all terminals and ground terminal500 V AC for one minute
Insulation resistance: Between all terminals and ground terminal5 MΩ or higher by 500 V DC insulation resistance tester

FX5-CCLIEF: frequently asked questions

When can FX5-CCLIEF be shipped?

FX5-CCLIEF is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FX5-CCLIEF in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FX5-CCLIEF and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FX5-CCLIEF, subject to availability and destination.
