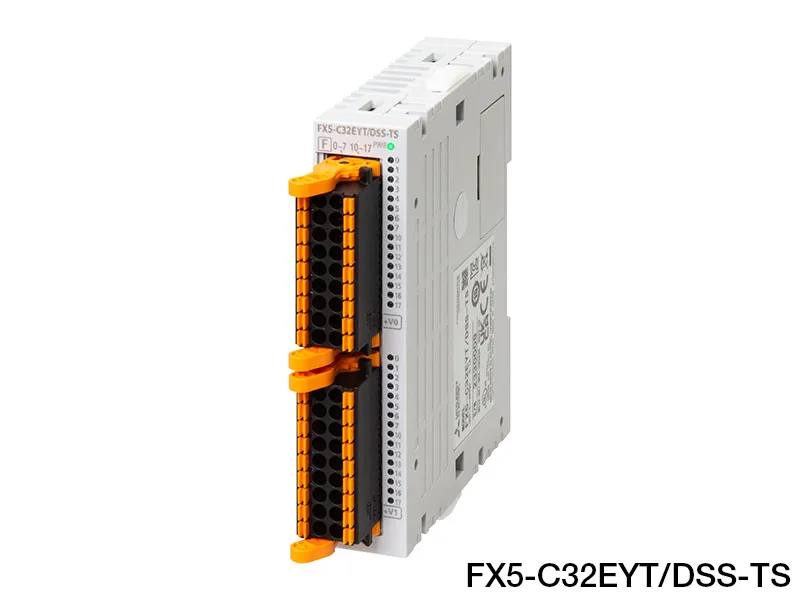

Mitsubishi Electric FX5-C32EYT/DSS-TS

Mitsubishi MELSEC iQ-F Series Input/Output Module

MPN
FX5-C32EYT/DSS-TS
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric FX5-C32EYT/DSS-TS?

The Mitsubishi Electric FX5-C32EYT/DSS-TS is a input/Output Module in the MELSEC iQ-F Series. Spring clamp terminal block Output: 32 points Transistor Source. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC iQ-F Series
CategoryInput/Output Module
OutlineSpring clamp terminal block Output: 32 points Transistor Source

Specifications

Applicable CPU moduleFX5UJ CPU module*1 FX5U CPU module*2 FX5UC CPU module *1 Connection with FX5UJ CPU module requires FX5-CNV-IF. *2 Connection with FX5U CPU module requires FX5-CNV-IF.
Mass (weight)Approx. 0.15 kg

Power supply specifications

Rated voltage24 V DC (supplied from PLC) 5 V DC (supplied from PLC)
Current consumption (5 V DC)120 mA
Current consumption (24 V DC)200 mA

Output specifications

No. of output points32 points
Output connection typeSpring clamp terminal block
Output typeTransistor/source output
External power supply5-30 V DC
Max. load0.1 A/point The total load current of resistance loads per common terminal should be the following value. • 8 output points/common terminal: 0.8 A or less
Min. load-
Open circuit leakage current0.1 mA/30 V DC
Voltage drop when ON1.5 V or less
Response time: OFF→ON0.2 ms or less/100 mA (at 24 V DC)
Response time: ON→OFF0.2 ms or less/100 mA (at 24 V DC)
Output circuit insulationPhoto-coupler insulation
Indication of output operationLED is lit when output is on

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

FX5-C32EYT/DSS-TS: frequently asked questions

When can FX5-C32EYT/DSS-TS be shipped?

FX5-C32EYT/DSS-TS is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FX5-C32EYT/DSS-TS in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FX5-C32EYT/DSS-TS and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FX5-C32EYT/DSS-TS, subject to availability and destination.

More Mitsubishi Electric (Factory Automation) parts

Mitsubishi Electric FX5-C32EX/DS-TS – Mitsubishi MELSEC iQ-F Series Input/Output Module
Mitsubishi Electric
FX5-C32EX/DS-TS

Mitsubishi MELSEC iQ-F Series Input/Output Module

Mitsubishi Electric FX5-C32EYT/D – Mitsubishi MELSEC iQ-F Series Input/Output Module
Mitsubishi Electric
FX5-C32EYT/D

Mitsubishi MELSEC iQ-F Series Input/Output Module

Mitsubishi Electric FX5-C32EYT/D-TS – Mitsubishi MELSEC iQ-F Series Input/Output Module
Mitsubishi Electric
FX5-C32EYT/D-TS

Mitsubishi MELSEC iQ-F Series Input/Output Module

Mitsubishi Electric FX5-C32EYT/DSS – Mitsubishi MELSEC iQ-F Series Input/Output Module
Mitsubishi Electric
FX5-C32EYT/DSS

Mitsubishi MELSEC iQ-F Series Input/Output Module

Mitsubishi Electric FX5-CCL-MS – Mitsubishi MELSEC iQ-F Series Network/communication module
Mitsubishi Electric
FX5-CCL-MS

Mitsubishi MELSEC iQ-F Series Network/communication module

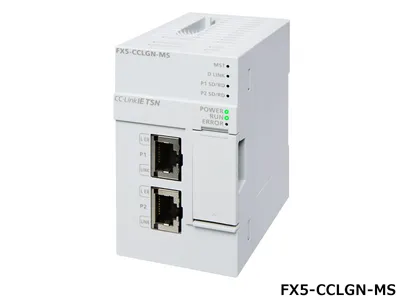

Mitsubishi Electric FX5-CCLGN-MS – Mitsubishi MELSEC iQ-F Series Network/communication module
Mitsubishi Electric
FX5-CCLGN-MS

Mitsubishi MELSEC iQ-F Series Network/communication module

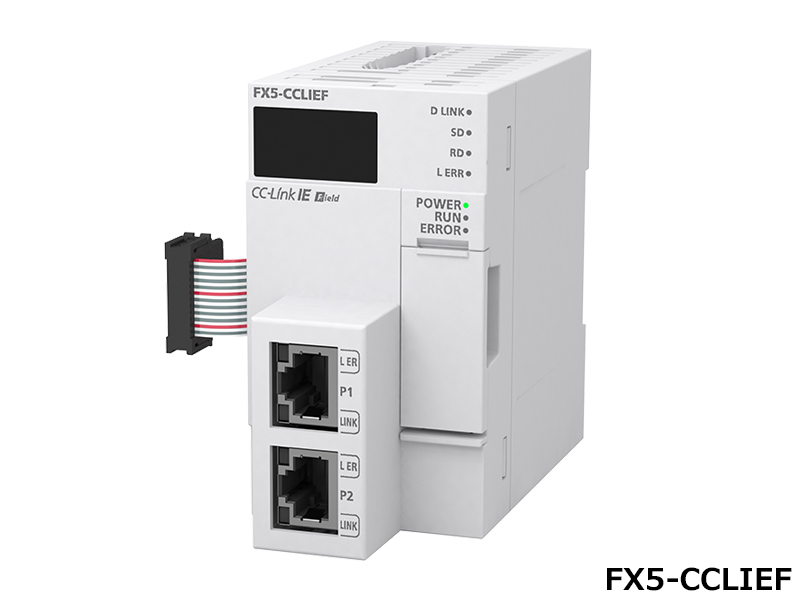

Mitsubishi Electric FX5-CCLIEF – Mitsubishi MELSEC iQ-F Series Network/communication module
Mitsubishi Electric
FX5-CCLIEF

Mitsubishi MELSEC iQ-F Series Network/communication module

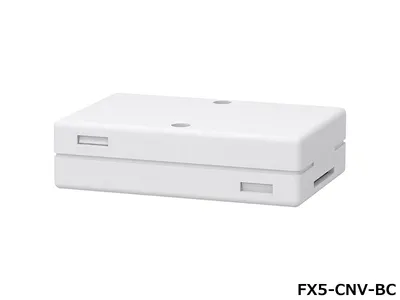

Mitsubishi Electric FX5-CNV-BC – Mitsubishi MELSEC iQ-F Series Option
