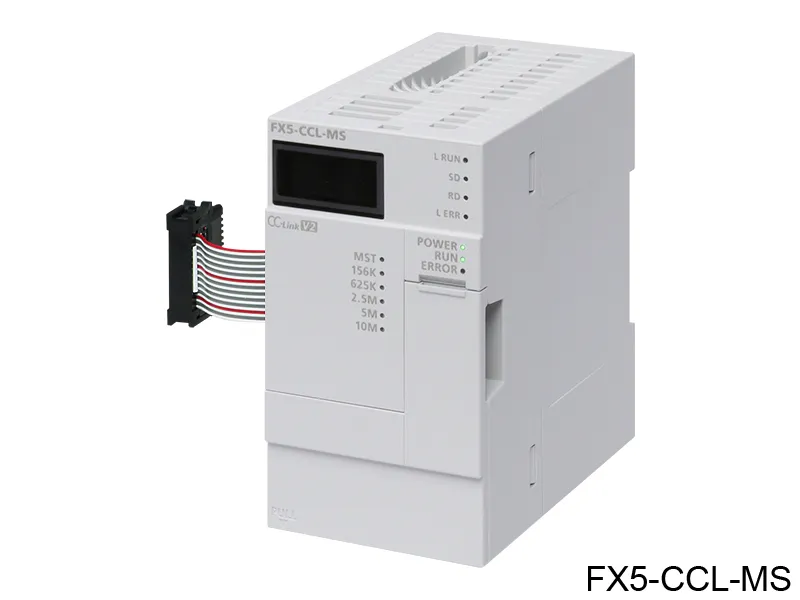

Mitsubishi Electric FX5-CCL-MS

Mitsubishi MELSEC iQ-F Series Network/communication module

MPN
FX5-CCL-MS
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric FX5-CCL-MS?

The Mitsubishi Electric FX5-CCL-MS is a network/communication module in the MELSEC iQ-F Series. Manager station for CC-Link Intelligent device station for CC-Link. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC iQ-F Series
CategoryNetwork/communication module
OutlineManager station for CC-Link Intelligent device station for CC-Link

Specifications

Applicable ControllerMX Controller MX-F model *1
Applicable CPU moduleFX5UJ CPU module: From the first FX5U CPU module: Ver. 1.050 or later FX5UC CPU module*: Ver. 1.050 or later * FX5-CNV-IFC or FX5-C1PS-5V is required to connect to the FX5UC CPU module.
Applicable engineering tool: GX Works3FX5UJ CPU module: Ver. 1.060N or later FX5U CPU module: Ver. 1.035M or later FX5UC CPU module: Ver. 1.035M or later
Number of occupied I/O points8 points
Mass (weight)Approx. 0.3 kg
Communication methodBroadcast polling method
Network topologyBus (RS-485)
Transmission speed・Manager station: Selected from 156 kbps/625 kbps/2.5 Mbps/5 Mbps/10 Mbps ・Intelligent device station: Selected from 156 kbps/625 kbps/2.5 Mbps/5 Mbps/10 Mbps/Auto-tracking
Transmission distance1200 m maximum (varies depending on the transmission speed.)
Transmission formatHDLC compliant
Synchronization methodFrame synchronization method
Encoding methodNRZI method
Error control systemCRC (X 16 +X 12 +X 5 +1)
Station typeManager station or intelligent device station
Station number・Manager station: 0 ・Intelligent device station: 1 to 64
Connectable station type (manager station)Remote I/O station, remote device station and intelligent device station (local station and standby manager station cannot be connected)
Number of connectable modulesOne unit of each station type can be connected to a CPU module. ・Manager station: 1*1 ・Intelligent device station: 1*2 *1 When FX5-CCL-MS is being used as the manager station, FX3U-16CCL-M cannot be used. *2 When FX5-CCL-MS is being used as the intelligent device station, FX3U-64CCL cannot be used.
Maximum number of connectable stations (manager station)FX5UJ CPU module: ・Remote I/O stations: 6 maximum (The total number of I/O points of remote I/O station is 192 or less.) ・The total number of remote device stations +intelligent device stations: 8 maximum (For each remote device station + intelligent device station, the total number of I/O points are 256 points or less) FX5U/FX5UC CPU module: ・Remote I/O stations: 14 maximum (The total number of I
Number of occupied stations (intelligent device station)1 to 4 stations (The number of stations can be changed using the engineering tool.)
Maximum number of link points per system (manager station): CC-Link Ver. 1FX5UJ CPU module: ・Remote I/O (RX, RY): 448 points (Remote I/O station: 192 points* + remote device station + intelligent device station: 256 points) ・Remote register (RWw): 32 points ・Remote register (RWr): 32 points FX5U/FX5UC CPU module: ・Remote I/O (RX, RY): 896 points (Remote I/O station: 448 points* + remote device station + intelligent device station: 448 points) ・Remote register (RWw): 56
Maximum number of link points per system (manager station): CC-Link Ver. 2FX5UJ CPU module: ・Remote I/O (RX, RY): 448 points (Remote I/O station: 192 points*4 + remote device station + intelligent device station: 256 points) ・Remote register (RWw): 64 points ・Remote register (RWr): 64 points FX5U/FX5UC CPU module: ・Remote I/O (RX, RY): 896 points (Remote I/O station: 448 points*4 + remote device station + intelligent device station: 448 points) ・Remote register (RWw): 1
Connection cableVer. 1.10 compatible CC-Link dedicated cable
CC-Link applicable versionVer. 2.00 (Ver. 1.10 also supported.)

Power supply specifications

External power supply: Power supply voltage24 V DC +20%, -15%
External power supply: Allowable instantaneous power failure timeOperation continues for an instantaneous power failure of 1 ms or less.
External power supply: Current consumption100 mA

The general specifications other than below are the same as those for the CPU module.

Dielectric withstand voltage: Between all external terminals and ground terminal of CPU module500 V AC for one minute
Insulation resistance: Between all external terminals and ground terminal of CPU module10 MΩ or higher by 500 V DC insulation resistance tester

FX5-CCL-MS: frequently asked questions

When can FX5-CCL-MS be shipped?

FX5-CCL-MS is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FX5-CCL-MS in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FX5-CCL-MS and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FX5-CCL-MS, subject to availability and destination.
