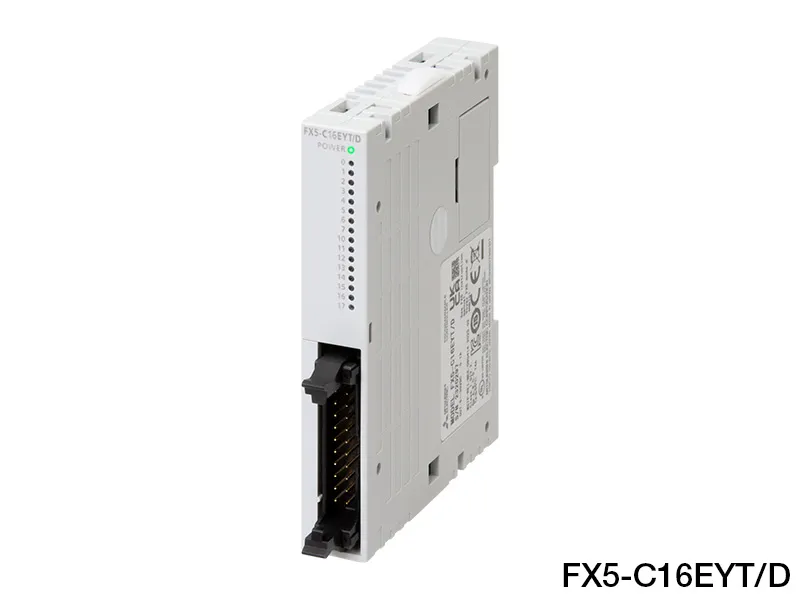

FX5-C16EYT/D Mitsubishi MELSEC iQ-F Series Input/Output Module
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Mitsubishi MELSEC iQ-F Series – Input/Output Module |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can FX5-C16EYT/D be shipped?
FX5-C16EYT/D is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up FX5-C16EYT/D in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for FX5-C16EYT/D and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FX5-C16EYT/D, subject to availability and destination.
The Mitsubishi Electric FX5-C16EYT/D is a input/Output Module in the MELSEC iQ-F Series. Connector type Output: 16 points Transistor Sink. Specifications and manuals below are Mitsubishi Electric's own data.
Specifications
Product
| Series | MELSEC iQ-F Series |
| Category | Input/Output Module |
| Outline | Connector type Output: 16 points Transistor Sink |
Specifications
| Applicable CPU module | FX5UJ CPU module*1 FX5U CPU module*2 FX5UC CPU module *1 Connection with FX5UJ CPU module requires FX5-CNV-IF. *2 Connection with FX5U CPU module requires FX5-CNV-IF. |
| Mass (weight) | Approx. 0.1 kg |
Power supply specifications
| Rated voltage | 24 V DC (supplied from PLC) 5 V DC (supplied from PLC) |
| Current consumption (5 V DC) | 100 mA |
| Current consumption (24 V DC) | 100 mA |
Output specifications
| No. of output points | 16 points |
| Output connection type | Connector |
| Output type | Transistor/sink output |
| External power supply | 5-30 V DC |
| Max. load | 0.1 A/point The total load current of resistance loads per common terminal should be the following value. • 8 output points/common terminal: 0.8 A or less |
| Min. load | － |
| Open circuit leakage current | 0.1 mA/30 V DC |
| Voltage drop when ON | 1.5 V or less |
| Response time: OFF→ON | 0.2 ms or less/100 mA (at 24 V DC) |
| Response time: ON→OFF | 0.2 ms or less/100 mA (at 24 V DC) |
| Output circuit insulation | Photo-coupler insulation |
| Indication of output operation | LED is lit when output is on |
Downloads & documentation
Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.
Data sheets & manuals
| MELSEC iQ-F FX5S/FX5UJ/FX5U/FX5UC User's Manual (Hardware) (SH-082452ENG-Q) | PDF · 7.58MB |
