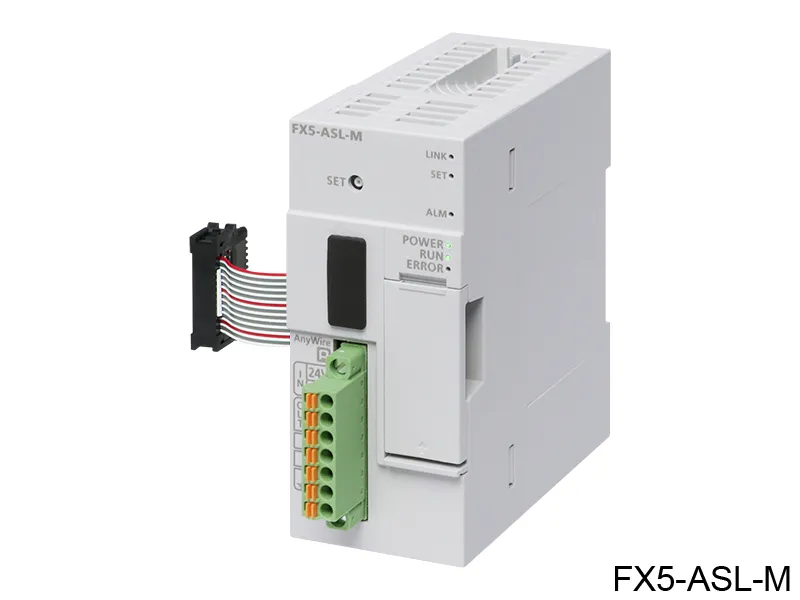

FX5-ASL-M Mitsubishi MELSEC iQ-F Series Network/communication module

MPN: FX5-ASL-M · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC iQ-F Series – Network/Communication Module
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can FX5-ASL-M be shipped?

FX5-ASL-M is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FX5-ASL-M in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FX5-ASL-M and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FX5-ASL-M, subject to availability and destination.

The Mitsubishi Electric FX5-ASL-M is a network/communication module in the MELSEC iQ-F Series. AnyWireASLINK system master. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC iQ-F Series
Category	Network/communication module
Outline	AnyWireASLINK system master

Specifications

Applicable CPU module	FX5UJ CPU module: From the first FX5U CPU module: Ver. 1.050 or later FX5UC CPU module: Ver. 1.050 or later FX5-CNV-IFC or FX5-C1PS-5V is required to connect to the FX5UC CPU module.
Applicable engineering tool: GX Works3	FX5UJ CPU module: Ver. 1.060N or later FX5U CPU module: Ver. 1.035M or later FX5UC CPU module: Ver. 1.035M or later
Mass (weight)	Approx. 0.2 kg
Transmission clock	27.0 kHz
Maximum transmission distance (total length)	200 m For remote modules with integrated transmission cables (DP, DN), the length of the transmission cables (DP, DN) is included in the total length. For wiring of 50 m or more with 4 wires (DP, DN, 24V, 0V), insert the noise filter for power supply cables between the power supply and cables.
Transmission system	DC power superimposed total frame cyclic system
Connection type	Bus topology (multidrop system, T-branch system, tree branch system)
Transmission protocol	Dedicated protocol (AnyWireASLINK)
Error control	Checksum, double-check system
Number of connected I/O points	FX5UJ CPU module: 216 points maximum1 (input: maximum 192 points, output: maximum 192 points) FX5U/FX5UC CPU module: 448 points maximum12 (input: maximum 256 points, output: maximum 256 points) 1: The number of available remote I/O points per system varies depending on the number of I/O points of the extension devices. *2: The maximum number of points that can be used differs depending on the
Number of connected remote modules	128 maximum (varies depending on the current consumption of each remote module)
External interface (power supply part/communication part)	Push-in type 7-piece spring clamp terminal block
RAS function	・Disconnected transmission cable location detection function ・Transmission cable short detection function ・Transmission cable voltage drop detection function
Transmission cable (DP, DN)	・UL-listed general-purpose 2-wire cable (VCTF, VCT 1.25 mm 2 , 0.75 mm 2 , temperature rating 70℃ or higher) ・UL-listed general-purpose wire (1.25 mm 2 , 0.75 mm 2 , temperature rating 70℃ or higher) ・Dedicated flat cable (1.25 mm 2 , 0.75 mm 2 , temperature rating 90℃)
Power supply cable (24V, 0V)	・UL-listed general-purpose 2-wire cable (VCTF, VCT 0.75 to 2.0 mm 2 , temperature rating 70℃ or higher) ・UL-listed general-purpose wire (0.75 to 2.0 mm 2 , temperature rating 70℃ or higher) ・Dedicated flat cable (1.25 mm 2 , 0.75 mm 2 , temperature rating 90℃)
Memory	Built-in EEPROM (Number of times of overwrite: 100000 times)
Number of occupied I/O points	8 points
Number of connectable modules	1 module FX5-ASL-M and FX3U-128ASL-M cannot be used together.

Power supply specifications

External power supply: Power supply voltage	24 V DC +15%, -10%, ripple voltage 0.5 Vp-p or lower Recommended voltage: 26.4 V DC (24 V DC +10%) Please use a UL Class 2 power supply
External power supply: Current consumption	100 mA
External power supply: Transmission cable supply current	MAX 2 A
Internal power supply: Power supply voltage	5 V DC
Internal power supply: Current consumption	200 mA

The general specifications other than below are the same as those for the CPU module.

Operating ambient temperature	-20 to 55℃, non-freezing The simultaneous ON ratio of available PLC inputs or outputs changes with respect to the ambient temperature. For details, refer to the manual. In the case where operating ambient temperature is lower than 0℃, the specifications are different from the above description. For details, refer to the manual.
Storage ambient temperature	-25 to 75℃, non-freezing
Operating ambient humidity	5 to 95%RH, non-condensation When used in a low-temperature environment, use in an environment with no sudden temperature changes. If there are sudden temperature changes because of opening/closing of the control panel or other reasons, condensation may occur, which may cause a fire, fault, or malfunction. Furthermore, use an air conditioner in dehumidifier mode to prevent condensation.
Storage ambient humidity	5 to 95%RH, non-condensation
Operating altitude	0 to 2000 m The PLC cannot be used at a pressure higher than the atmospheric pressure to avoid damage.
Dielectric withstand voltage: Between all external terminals and ground terminal of CPU module	500 V AC for one minute
Insulation resistance: Between all external terminals and ground terminal of CPU module	10 MΩ or higher by 500 V DC insulation resistance tester

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

MELSEC iQ-F FX5S/FX5UJ/FX5U/FX5UC User's Manual (Hardware) (SH-082452ENG-Q)	PDF · 7.58MB
MELSEC iQ-F FX5 AnyWireASLINK System Master Module User's Manual (SH-081796ENG-L)	PDF · 2.01MB
MELSEC iQ-F FX5-ASL-M Hardware Manual (JY997D73301)	PDF · 0.34MB
