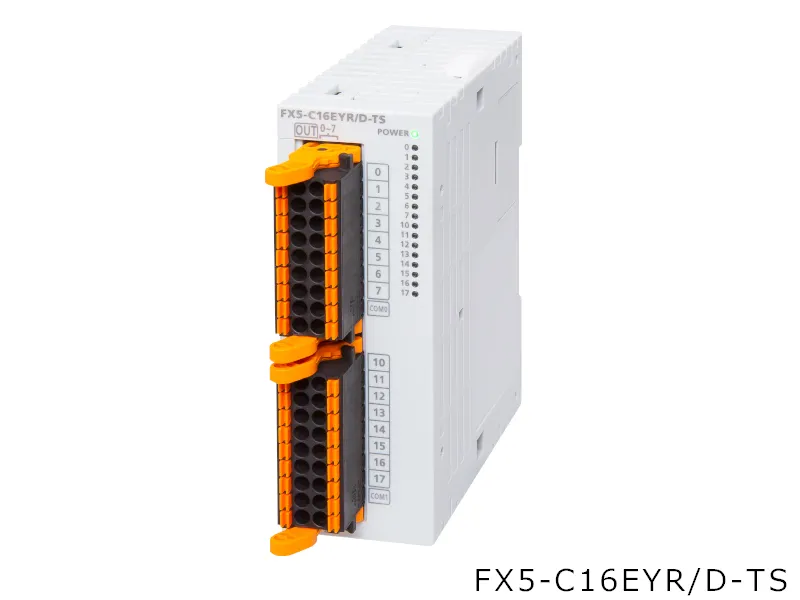

What is the Mitsubishi Electric FX5-C16EYR/D-TS?

The Mitsubishi Electric FX5-C16EYR/D-TS is a input/Output Module in the MELSEC iQ-F Series. Spring clamp terminal block Output: 16 points Relay. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC iQ-F Series
CategoryInput/Output Module
OutlineSpring clamp terminal block Output: 16 points Relay

Specifications

Applicable CPU moduleFX5UJ CPU module*1 FX5U CPU module*2 FX5UC CPU module *1 Connection with FX5UJ CPU module requires FX5-CNV-IF. *2 Connection with FX5U CPU module requires FX5-CNV-IF.
Mass (weight)Approx. 0.20 kg

Power supply specifications

Rated voltage24 V DC (supplied from PLC) 5 V DC (supplied from PLC)
Current consumption (5 V DC)100 mA
Current consumption (24 V DC)100 mA

Output specifications

No. of output points16 points
Output connection typeSpring clamp terminal block
Output typeRelay output
External power supply30 V DC or less 240 V AC or less ("250 V AC or less" if not a CE, UL, cUL compliant item)
Max. load2 A/point The total load current per common terminal should be the following value. 8 output points/common terminal: 4 A or less (When two common terminals are connected outside the I/O module, resistance load is 8 A or less.)
Min. load5 V DC, 2 mA (reference values)
Open circuit leakage current-
Response time: OFF→ONApprox. 10 ms
Response time: ON→OFFApprox. 10 ms
Output circuit insulationMechanical insulation
Indication of output operationLED is lit when output is on
