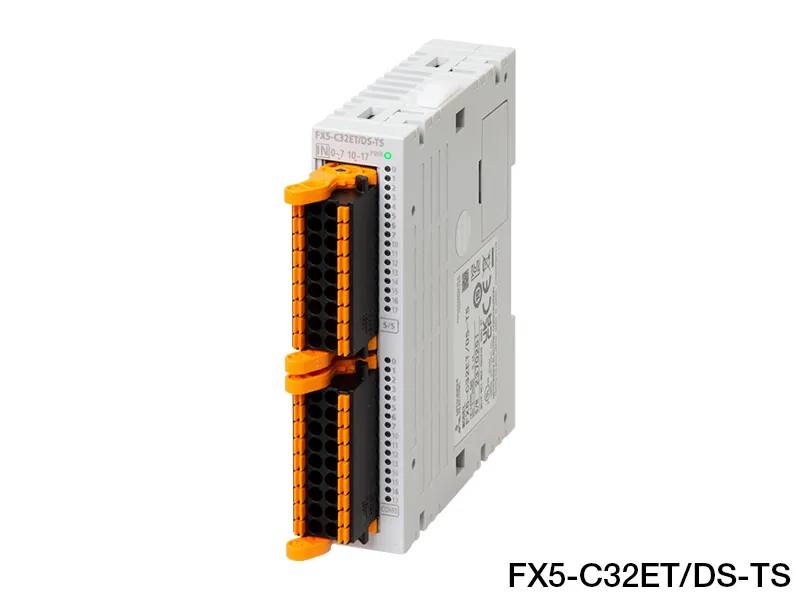

FX5-C32ET/DS-TS Mitsubishi MELSEC iQ-F Series Input/Output Module

MPN: FX5-C32ET/DS-TS · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC iQ-F Series – Input/Output Module
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can FX5-C32ET/DS-TS be shipped?

FX5-C32ET/DS-TS is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FX5-C32ET/DS-TS in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FX5-C32ET/DS-TS and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FX5-C32ET/DS-TS, subject to availability and destination.

The Mitsubishi Electric FX5-C32ET/DS-TS is a input/Output Module in the MELSEC iQ-F Series. Spring clamp terminal block type Input: 16 points 24 V DC Sink/source Output: 16 points Transistor Sink. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC iQ-F Series
Category	Input/Output Module
Outline	Spring clamp terminal block type Input: 16 points 24 V DC Sink/source Output: 16 points Transistor Sink

Specifications

Applicable CPU module	FX5UJ CPU module1 FX5U CPU module2 FX5UC CPU module 1 Connection with FX5UJ CPU module requires FX5-CNV-IF. 2 Connection with FX5U CPU module requires FX5-CNV-IF.
Mass (weight)	Approx. 0.15 kg

Power supply specifications

Rated voltage: Input	24 V DC (supplied from 24 V DC service power supply or external power supply) 5 V DC (supplied from PLC)
Rated voltage: Output	24 V DC (supplied from PLC) 5 V DC (supplied from PLC)
Current consumption (5 V DC)	120 mA
Current consumption (24 V DC)	165 mA (100 mA) Current consumption when external power supply is used for the input circuit.

Input specifications

No. of input points	16 points
Input connection type	Spring clamp terminal block
Input type	Sink/source
Input signal voltage	24 V DC +20%, -15%
Input signal current	4.0 mA/24 V DC
Input impedance	5.6 kΩ
Input sensitivity current: ON	3.0 mA or more
Input sensitivity current: OFF	1.5 mA or less
Input response time	ON: 50 μs or less OFF: 150 μs or less
Input signal format (Input sensor form)	No-voltage contact input Sink: NPN open collector transistor Source: PNP open collector transistor
Input circuit insulation	Photo-coupler insulation
Indication of input operation	LED is lit when output is on

Output specifications

No. of output points	16 points
Output connection type	Spring clamp terminal block
Output type	Transistor/sink output
External power supply	5-30 V DC
Max. load	0.1 A/point The total load current of resistance loads per common terminal should be the following value. • 8 output points/common terminal: 0.8 A or less
Min. load	－
Open circuit leakage current	0.1 mA/30 V DC
Voltage drop when ON	1.5 V or less
Response time: OFF→ON	0.2 ms or less/100 mA (at 24 V DC)
Response time: ON→OFF	0.2 ms or less/100 mA (at 24 V DC)
Output circuit insulation	Photo-coupler insulation
Indication of output operation	LED is lit when output is on
