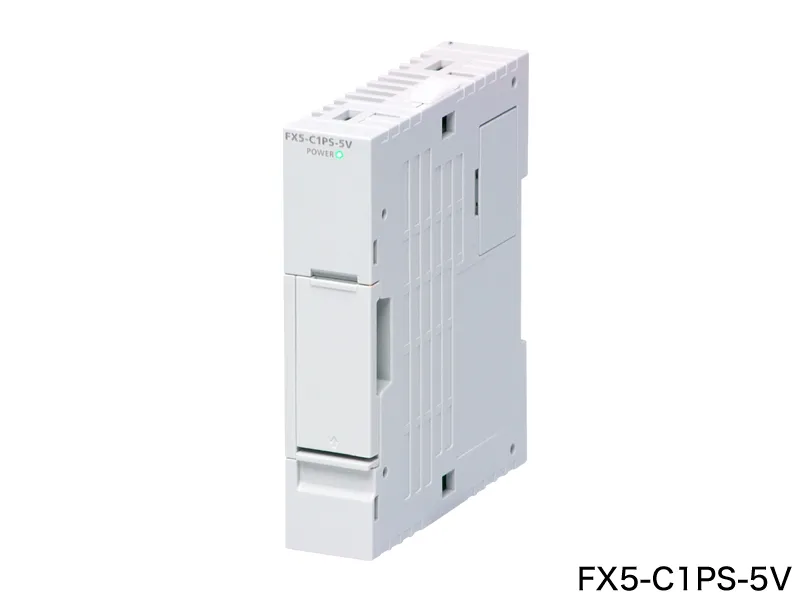

Mitsubishi Electric FX5-C1PS-5V

Mitsubishi MELSEC iQ-F Series Option

MPN
FX5-C1PS-5V
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric FX5-C1PS-5V?

The Mitsubishi Electric FX5-C1PS-5V is a option in the MELSEC iQ-F Series. Extension power supply. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC iQ-F Series
CategoryOption
OutlineExtension power supply

Specifications

Applicable ControllerMX Controller MX-F model
Applicable CPU moduleFX5U CPU module (DC power supply type)* FX5UC CPU module * Connection with FX5U CPU module (DC power supply type) requires FX5-CNV-IF.
Number of occupied I/O points0 point (This number is not related to the maximum number of I/O points of the PLC.)
Mass (weight)Approx. 0.1 kg
Number of connectable modulesUp to 2 modules

Power supply specifications

Power supply voltage24 V DC
Voltage fluctuation range+20%, -15%
Allowable instantaneous power failure timeOperation can be continued upon occurrence of instantaneous power failure for 5 ms or less.
Power fuse125 V, 3.15 A Time-lag fuse
Rush current35 A max. 0.5 ms or less/24 V DC
Power consumption30 W Voltage fluctuation range is included.
Output current (Supply for extension modules connected after this module.)1200 mA/5 V DC 625 mA/24 V DC Maximum output current depends on the ambient temperature. For details, refer to the MELSEC iQ-F FX5S/FX5UJ/FX5U/FX5UC User's Manual (Hardware).

The general specifications other than below are the same as those for the CPU module.

Dielectric withstand voltage: Between power supply terminal (24 V DC) and ground terminal500 V AC for one minute
Insulation resistance: Between power supply terminal (24 V DC) and ground terminal10 MΩ or higher by 500 V DC insulation resistance tester

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

FX5-C1PS-5V: frequently asked questions

When can FX5-C1PS-5V be shipped?

FX5-C1PS-5V is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FX5-C1PS-5V in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FX5-C1PS-5V and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FX5-C1PS-5V, subject to availability and destination.
