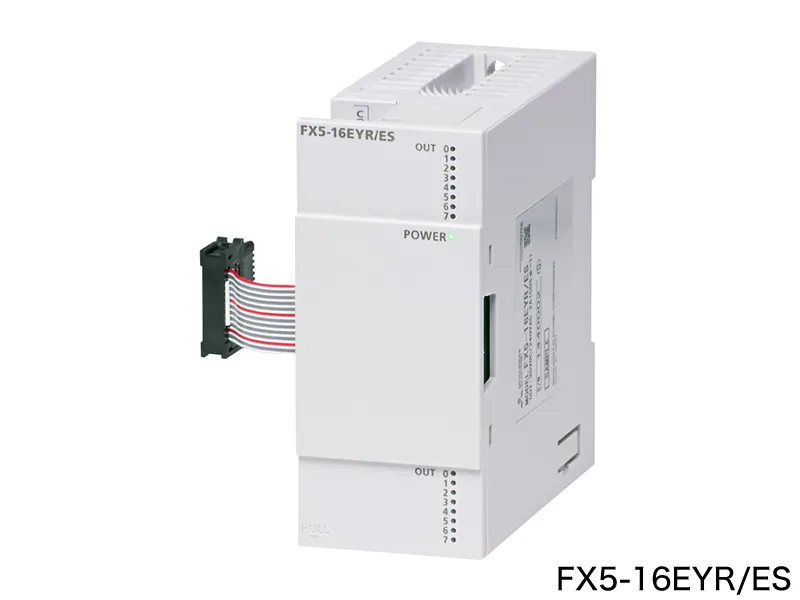

FX5-16EYR/ES Mitsubishi MELSEC iQ-F Series Input/Output Module

MPN: FX5-16EYR/ES · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC iQ-F Series – Input/Output Module
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can FX5-16EYR/ES be shipped?

FX5-16EYR/ES is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FX5-16EYR/ES in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FX5-16EYR/ES and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FX5-16EYR/ES, subject to availability and destination.

The Mitsubishi Electric FX5-16EYR/ES is a input/Output Module in the MELSEC iQ-F Series. Screw terminal block type Output: 16 points Relay. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC iQ-F Series
Category	Input/Output Module
Outline	Screw terminal block type Output: 16 points Relay

Specifications

Applicable Controller	MX Controller MX-F model *1
Applicable CPU module	FX5UJ CPU module FX5U CPU module FX5UC CPU module* * FX5-CNV-IFC or FX5-C1PS-5V is required to connect to the FX5UC CPU module.
Mass (weight)	Approx. 0.25 kg

Power supply specifications

Rated voltage	24 V DC (supplied from PLC) 5 V DC (supplied from PLC)
Current consumption (5 V DC)	100 mA
Current consumption (24 V DC)	125 mA

Output specifications

No. of output points	16 points
Output connection type	Screw terminal block (M3 screws)
Output type	Relay output
External power supply	30 V DC or less 240 V AC or less (250 V AC or less when the module does not comply with CE UL, cUL standards)
Max. load	2 A/point The total load current of resistance loads per common terminal should be the following value. • 8 output points/common terminal: 8 A or less
Min. load	5 V DC, 2 mA (reference values)
Open circuit leakage current	－
Response time: OFF→ON	Approx. 10 ms
Response time: ON→OFF	Approx. 10 ms
Output circuit insulation	Mechanical insulation
Indication of output operation	LED is lit when output is on
