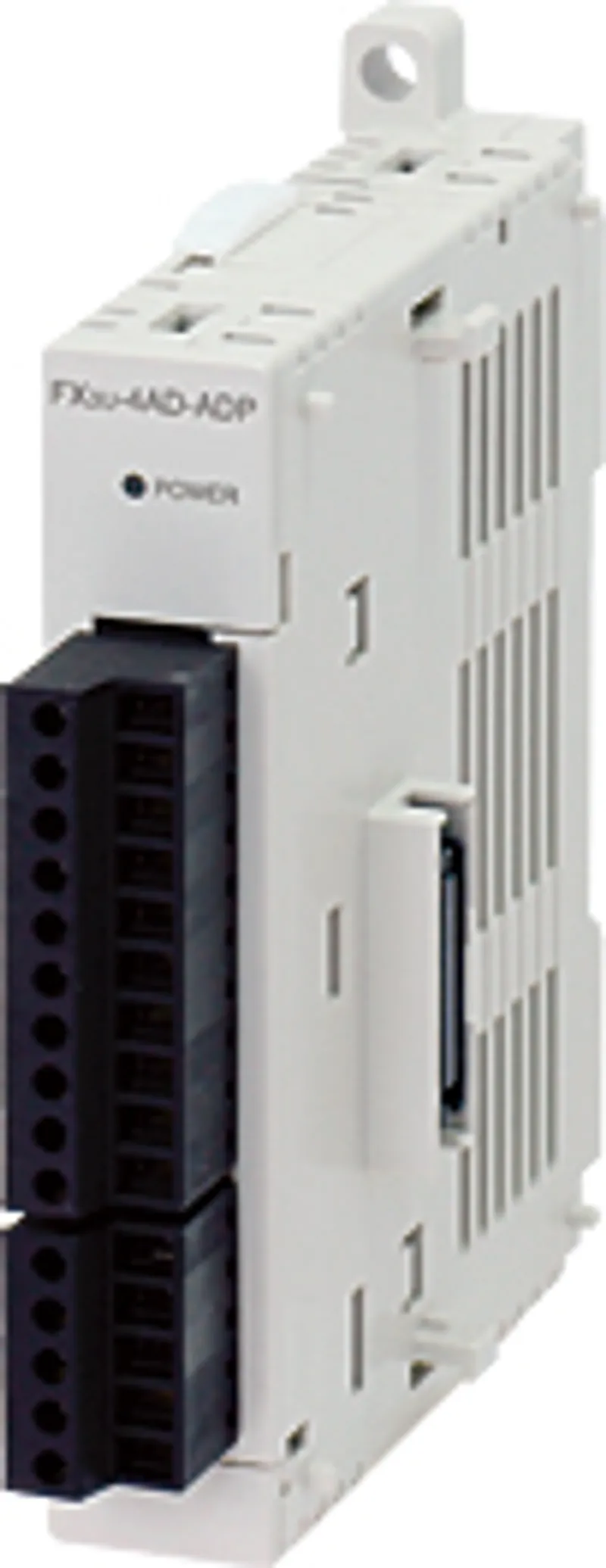

What is the Mitsubishi Electric FX3U-4AD-ADP?

The Mitsubishi Electric FX3U-4AD-ADP is a analog in the MELSEC-F (FX) Series. Analog input: 4ch. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC-F (FX) Series
CategoryAnalog
OutlineAnalog input: 4ch

Specifications

Applicable PLCFX3S, FX3G, FX3U, FX3GC, FX3UC (FX3UC-32MT-LT is Ver.1.20 or later) The FX3S-CNV-ADP is required to connect the FX3S PLC. The FX3G-CNV-ADP is required to connect the FX3G PLC. An expansion board is required to connect the FX3U,FX3UC-32MT-LT(-2).
Number of occupied I/O points0 point (This number is not related to the maximum number of input/output points of the PLC.)
Mass (weight)0.1 kg
Analog input: Analog input range: Voltage input0 V to 10 V DC (Input resistance 194 kΩ)
Analog input: Analog input range: Current input4 mA to 20 mA DC (Input resistance 250 Ω)
Analog input: Number of input channels4 channels
Analog input: Absolute maximum input: Voltage input-0.5 V, +15 V
Analog input: Absolute maximum input: Current input-2 mA, +30 mA
Analog input: Input characteristicsThe input mode (voltage/current input) can be set for each channel.
Analog input: Digital output: Voltage input12 bits, binary
Analog input: Digital output: Current input11 bits, binary
Analog input: Resolution: Voltage input2.5 mV (10 V × 1/4000)
Analog input: Resolution: Current input10 μA (16 mA × 1/1600)
Analog input: Total accuracy: Voltage inputAmbient temperature: 25°C±5°C ±0.5% (±50 mV) for 10 V full scale Ambient temperature: 0°C to 55°C ±1.0% (±100 mV) for 10 V full scale
Analog input: Total accuracy: Current inputAmbient temperature: 25°C±5°C ±0.5% (±80 μA) for 16 mA full scale Ambient temperature: 0°C to 55°C ±1.0% (±160 μA) for 16 mA full scale
Analog input: A/D conversion time: FX3U/FX3UC Series PLC200 μs (The data will be updated at every scan time.)
Analog input: A/D conversion time: FX3S/FX3G/FX3GC Series PLC250 μs (The data will be updated at every scan time.)
Analog input: Isolation method・The photocoupler is used to insulate the analog input area from the PLC. ・The DC/DC converter is used to insulate the analog input area from the power supply unit. ・Channels are not insulated from each other.

Power supply specifications

Power supply5 V DC 15 mA (internal power supply from PLC main unit) 24 V DC +20% -15% 40 mA (External power supply)

Specifications

Ambient temperature0 to 55°C (32 to 131 °F) when operating and -25 to 75°C (-13 to 167 °F) when stored
Ambient humidity5 to 95%RH (no condensation) when operating
Vibration resistance: Installed on DIN rail: Frequency: 10 to 57 HzHalf amplitude: 0.035 mm Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Vibration resistance: Installed on DIN rail: Frequency: 57 to 150 HzAcceleration: 4.9 m/s 2 Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Vibration resistance: Direct installing: Frequency: 10 to 57 HzHalf amplitude: 0.075 mm Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Vibration resistance: Direct installing: Frequency: 57 to 150 HzAcceleration: 9.8 m/s 2 Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Shock resistance147 m/s 2 Acceleration, Action time: 11 ms, 3 times by half-sine pulse in each direction X, Y, and Z
Noise resistanceBy noise simulator at noise voltage of 1,000 Vp-p, noise width of 1 μs, rise time of 1 ns and period of 30 to 100 Hz
Dielectric withstand voltageBetween batch of all terminals and ground terminal: 500 V AC for 1 min
Insulation resistanceBetween batch of all terminals and ground terminal: 5 MΩ or higher by 500 V DC insulation resistance tester
GroundingClass D grounding (grounding resistance: 100 Ω or less) (Common grounding with a heavy electrical system is not allowed) Ground the PLC independently or jointly.
Working atmosphereFree from corrosive or flammable gas and excessive conductive dusts
Working altitude2000 m or less Do not use the PLC under pressure higher than the atmospheric pressure. Doing so may damage the PLC.
