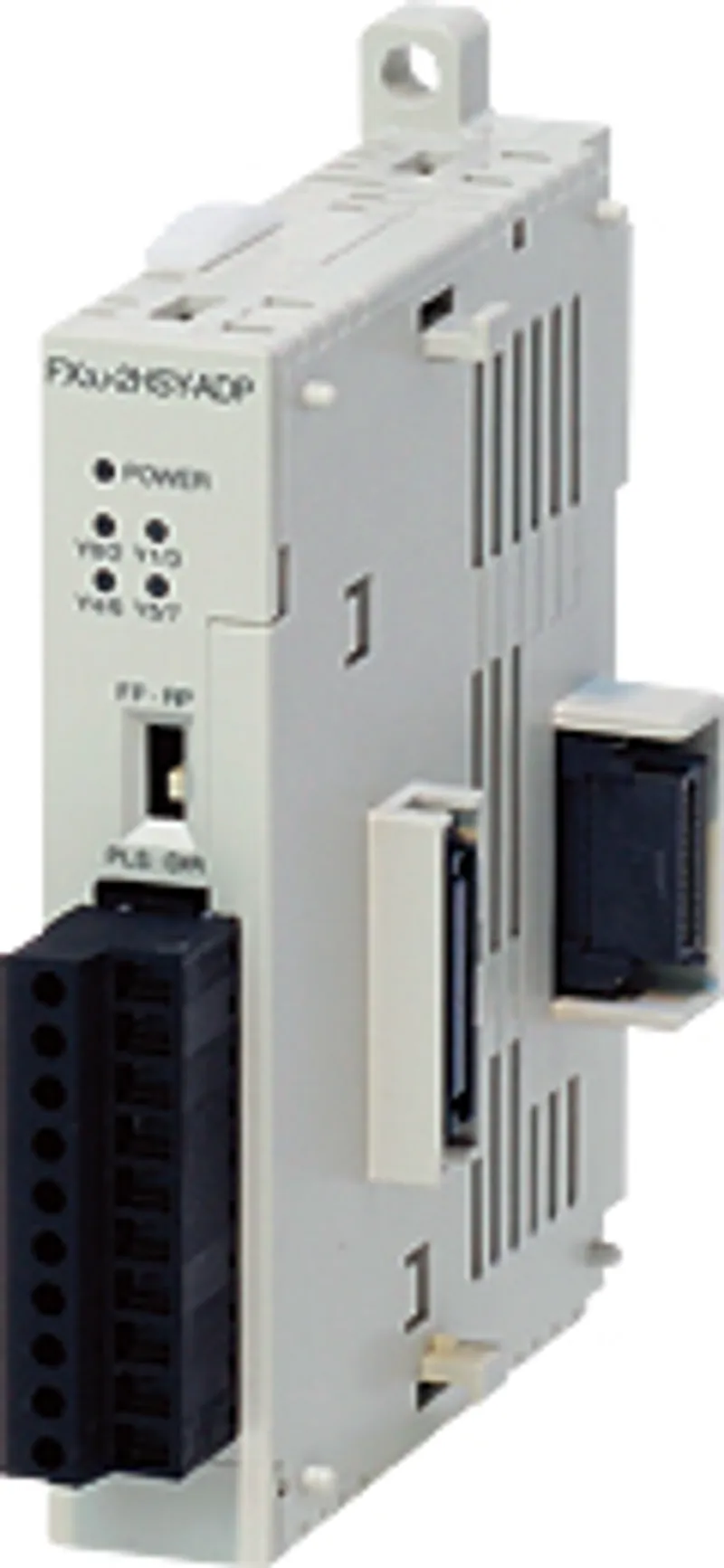

FX3U-2HSY-ADP Mitsubishi MELSEC-F (FX) Series Positioning

MPN: FX3U-2HSY-ADP · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC-F (FX) Series – Positioning
Lifecycle	Active mature
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can FX3U-2HSY-ADP be shipped?

FX3U-2HSY-ADP is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FX3U-2HSY-ADP in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FX3U-2HSY-ADP and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FX3U-2HSY-ADP, subject to availability and destination.

The Mitsubishi Electric FX3U-2HSY-ADP is a positioning in the MELSEC-F (FX) Series. Pulse output: 2 axes (individual). Mitsubishi Electric has announced its discontinuation (2028/03 To be end of order) — plan spares now; PartnerPLC also sources it on the surplus market after the end of order. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC-F (FX) Series
Category	Positioning
Sales status	2028/03 To be end of order (Mitsubishi Electric)
Outline	Pulse output: 2 axes (individual)

Specifications

Applicable PLC	FX3U
Number of occupied I/O points	When one FX3U-2HSY-ADP is connected, the outputs Y000, Y001, Y004, and Y005 of the main unit are used. When two adapters are connected, outputs Y000 to Y007 of the main module are used.
Mass (weight)	0.08 kg
Programming language	Sequence program
Pulse output system	Differential line driver system
Pulse output form	Pulse train + Direction, Forward/reverse pulse train
Number of control axes	Independent two axes (Connect 2 adapters to the main unit to control 4 axes independently).
Maximum frequency	200 kHz
Acceleration/deceleration process	In accordance with a sequence program
Control unit	pulse
Detection of absolute position (Reads out the current value of ABS.)	Using the ABS instruction of the PLC
Positioning range	In accordance with a sequence program
Position data	1 point (set in sequence program)

Power supply specifications

Power supply voltage

5 V DC 30 mA (internal power supply from PLC main unit) 24 V DC 60 mA (internal power supply from PLC service power)

Output specifications

No. of output points	4 points When 1st adapter is connected: Y000, Y001, Y004, and Y005 are used. When 1st and 2nd adapters are connected: Y000 to Y007 are used. (The output terminal for the PLC module with the same number as FX3U-2HSY-ADP cannot be used.)
Output form	Forward (FP) and reverse (RP) pulse or pulse (PLS) with direction (DIR) can be selected.
Output method	Differential line driver output
Output frequency	200 kHz
Indication of operation	LED is lit when output is on

Specifications

Ambient temperature	0 to 55°C when operating and -25 to 75°C when stored
Ambient humidity	5 to 95%RH (no condensation) when operating
Vibration resistance: Installed on DIN rail: Frequency: 10 to 57 Hz	Half amplitude: 0.035 mm Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Vibration resistance: Installed on DIN rail: Frequency: 57 to 150 Hz	Acceleration: 4.9 m/s 2 Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Vibration resistance: Direct installing: Frequency: 10 to 57 Hz	Half amplitude: 0.075 mm Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Vibration resistance: Direct installing: Frequency: 57 to 150 Hz	Acceleration: 9.8 m/s 2 Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Shock resistance	147 m/s 2 Acceleration, Action time: 11 ms, 3 times by half-sine pulse in each direction X, Y, and Z
Noise resistance	By noise simulator at noise voltage of 1,000 Vp-p, noise width of 1 μs, rise time of 1 ns and period of 30 to 100 Hz
Dielectric withstand voltage	Between output terminal of high-speed output special adapter and ground terminal of PLC main unit: 500 V AC for 1 min
Insulation resistance	Between output terminal of high-speed output special adapter and ground terminal of PLC main unit: 5 MΩ or higher by 500 V DC insulation resistance tester
Working atmosphere	Free from corrosive or flammable gas and excessive conductive dusts
Working altitude	2000 m or less Do not use the PLC under pressure higher than the atmospheric pressure. Doing so may damage the PLC.
