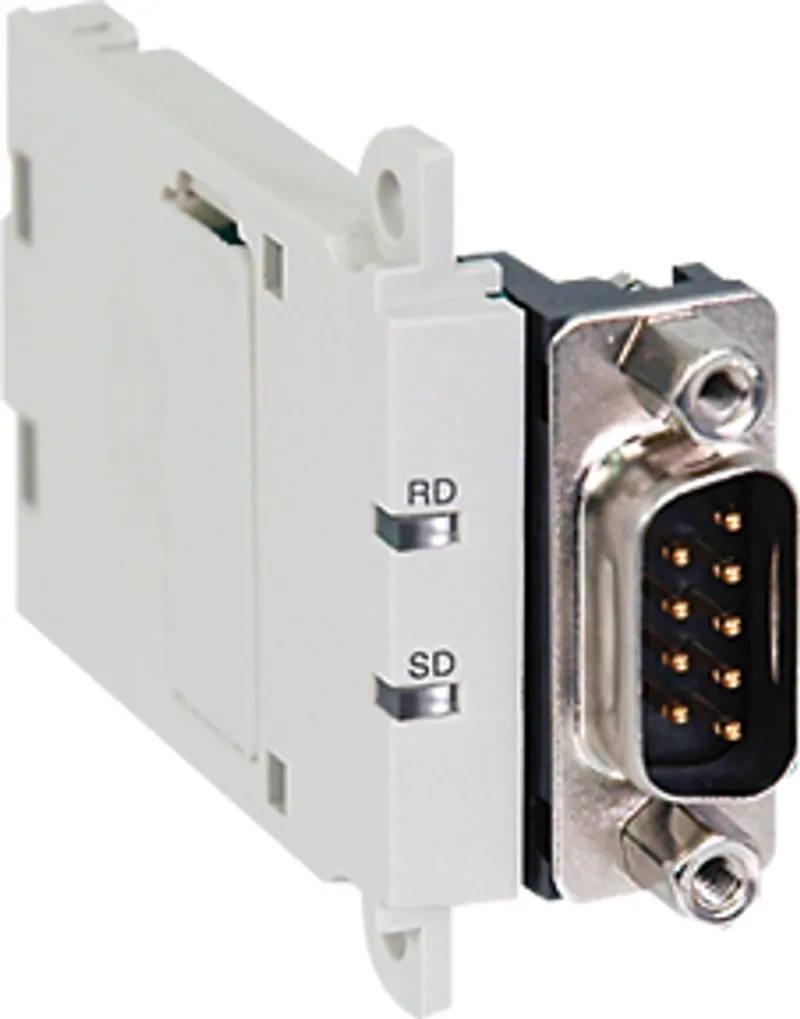

The Mitsubishi Electric FX3U-232-BD is a data link/Communication in the MELSEC-F (FX) Series. RS-232C communication (FX3UC PLC can be installed only on FX3UC-32MT-LT(-2)). Mitsubishi Electric has announced its discontinuation (2028/03 To be end of order) — plan spares now; PartnerPLC also sources it on the surplus market after the end of order. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC-F (FX) Series
Category	Data link/Communication
Sales status	2028/03 To be end of order (Mitsubishi Electric)
Outline	RS-232C communication (FX3UC PLC can be installed only on FX3UC-32MT-LT(-2))

Specifications

Applicable PLC	FX3U, FX3UC-32MT-LT(-2)
Number of occupied I/O points	0 point (This number is not related to the maximum number of input/output points of the PLC.)
Communication method	Full-duplex
Communication speed: Non-protocol communication, Computer link	300/600/1200/2400/4800/9600/19200 (bps)
Communication speed: Programming communication	9600/19200/38400/57600/115200 (bps)
Communication format	Non-protocol communication, Computer link (Dedicated protocol formats 1, Dedicated protocol formats 4), Programming communication
Transmission standard	RS-232C standard
Transmission distance	15 m maximum
Connection method	9-pin D-Sub connector (male)
LED	RD, SD
Isolation method	Non-isolated (between communication line and CPU)

Power supply specifications

Power supply

5 V DC 20 mA (internal power supply from PLC main unit)

Specifications

Ambient temperature	0 to 55°C when operating and -25 to 75°C when stored
Ambient humidity	5 to 95%RH (no condensation) when operating
Vibration resistance: Installed on DIN rail: Frequency: 10 to 57 Hz	Half amplitude: 0.035 mm Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Vibration resistance: Installed on DIN rail: Frequency: 57 to 150 Hz	Acceleration: 4.9 m/s 2 Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Vibration resistance: Direct installing: Frequency: 10 to 57 Hz	Half amplitude: 0.075 mm Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Vibration resistance: Direct installing: Frequency: 57 to 150 Hz	Acceleration: 9.8 m/s 2 Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Shock resistance	147 m/s 2 Acceleration, Action time: 11 ms, 3 times by half-sine pulse in each direction X, Y, and Z
Noise resistance	By noise simulator at noise voltage of 1,000 Vp-p, noise width of 1 μs, rise time of 1 ns and period of 30 to 100 Hz
Dielectric withstand voltage	Non-isolated between communication line and PLC main unit (Do not perform a withstand voltage test.)
Insulation resistance	Non-isolated between communication line and PLC main unit (Do not perform an insulation resistance test.)
Working atmosphere	Free from corrosive or flammable gas and excessive conductive dusts
Working altitude	2000 m or less Do not use the PLC under pressure higher than the atmospheric pressure. Doing so may damage the PLC.
