What is the Mitsubishi Electric FX3U-32DP?

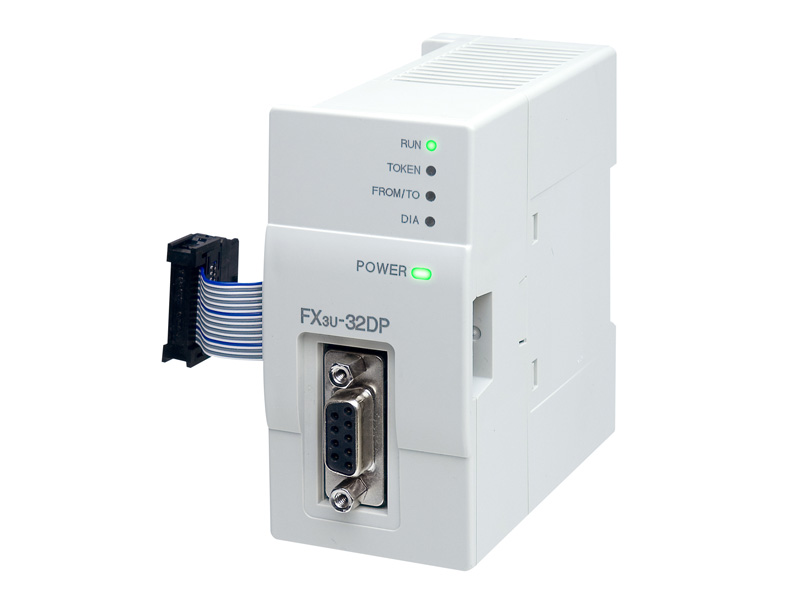

The Mitsubishi Electric FX3U-32DP is a network/communication module in the MELSEC iQ-F Series. FX3U-32DP PROFIBUS-DP Interface Block. Mitsubishi Electric has announced its discontinuation (2028/03 To be end of order) — plan spares now; PartnerPLC also sources it on the surplus market after the end of order. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC iQ-F Series
CategoryNetwork/communication module
Sales status2028/03 To be end of order (Mitsubishi Electric)
OutlineFX3U-32DP PROFIBUS-DP Interface Block

Specifications

Applicable PLC[FX3G][FX3GC][FX3U][FX3UC] The FX2NC-CNV-IF or FX3UC-1PS-5V is required to connect the FX3GC/FX3UC PLC. Cannot connect to the FX3UC-32MT-LT(-2). [FX5U][FX5UC] The FX5-CNV-BUS or FX5-CNV-BUSC is required to connect the FX5U/FX5UC CPU module.
Mass (weight)Approx. 0.2 kg
Transmission TypeBus network
Unit typePROFIBUS-DP Slave
Transmission Data (Maximum Exchanged Data Length)Cyclic Data: 144 Byte Acyclic Data: 140 Byte
Number of connectable units to the main unit8 units
Supported transmission speed (bps) and bus length: 9.6k, 19.2k, 45.45k, 93.75k1,200 m/segment
Supported transmission speed (bps) and bus length: 187.5k1,000 m/segment
Supported transmission speed (bps) and bus length: 500k400 m /segment
Supported transmission speed (bps) and bus length: 1.5M200 m/segment
Supported transmission speed (bps) and bus length: 3M, 6M, 12M100 m/segment
PROFIBUS module IDF332h
Connector: PROFIBUS-DP networkPort for PROFIBUS-DP network (9 pin D-SUB Connector)
Global controlSupports SYNC, UNSYNC, FREEZE, and UNFREEZE modes
Terminal resistorNot built in.
LED Name: DIA: LED color: RedUnlit: During normal operation Otherwise: An error detected
LED Name: RUN: LED color: GreenON: In cyclic data exchange mode Flashing: DP-Master is in clear mode, or DP-Slave is in Fail/Safe state.
LED Name: TOKEN: LED color: GreenON: Established connection with the DP-Master
LED Name: FROM/TO: LED color: GreenON: Constant FROM/TO access within 200 ms intervals
LED Name: POWER: LED color: GreenON: Correct power supply from the PLC

Power supply specifications

Internal power supply145 mA at 24 V DC is supplied from the internal service power in the main unit

Specifications

Ambient temperature0 to 55°C (32 to 131°F) when operating and -25 to 75°C (-13 to 167°F) when stored
Ambient humidity5 to 95%RH (no condensation) when operating
Vibration resistance: Installed on DIN rail: Frequency: 10 to 57 HzHalf amplitude: 0.035 mm Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Vibration resistance: Installed on DIN rail: Frequency: 57 to 150 HzAcceleration: 4.9 m/s 2 Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Vibration resistance: Direct installing: Frequency: 10 to 57 HzHalf amplitude: 0.075 mm Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Vibration resistance: Direct installing: Frequency: 57 to 150 HzAcceleration: 9.8 m/s 2 Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Shock resistance147 m/s 2 Acceleration, Action time: 11 ms, 3 times by half-sine pulse in each direction X, Y, and Z
Noise resistanceBy noise simulator at noise voltage of 1,000 Vp-p, noise width of 1 μs, rise time of 1 ns and period of 30 to 100 Hz
Dielectric withstand voltage: 500 V AC for one minuteBetween communication connector frame and ground terminal of PLC main unit
Insulation resistance: 5 MΩ or higher by 500 V DC insulation resistance testerBetween communication connector frame and ground terminal of PLC main unit
GroundingClass D grounding (grounding resistance: 100 Ω or less) (Common grounding with a heavy electrical system is not allowed) Ground the PLC independently or jointly.
Working atmosphereFree from corrosive or flammable gas and excessive conductive dust
Working altitude2000 m or less The PLC cannot be used at a pressure higher than the atmospheric pressure to avoid damage.
