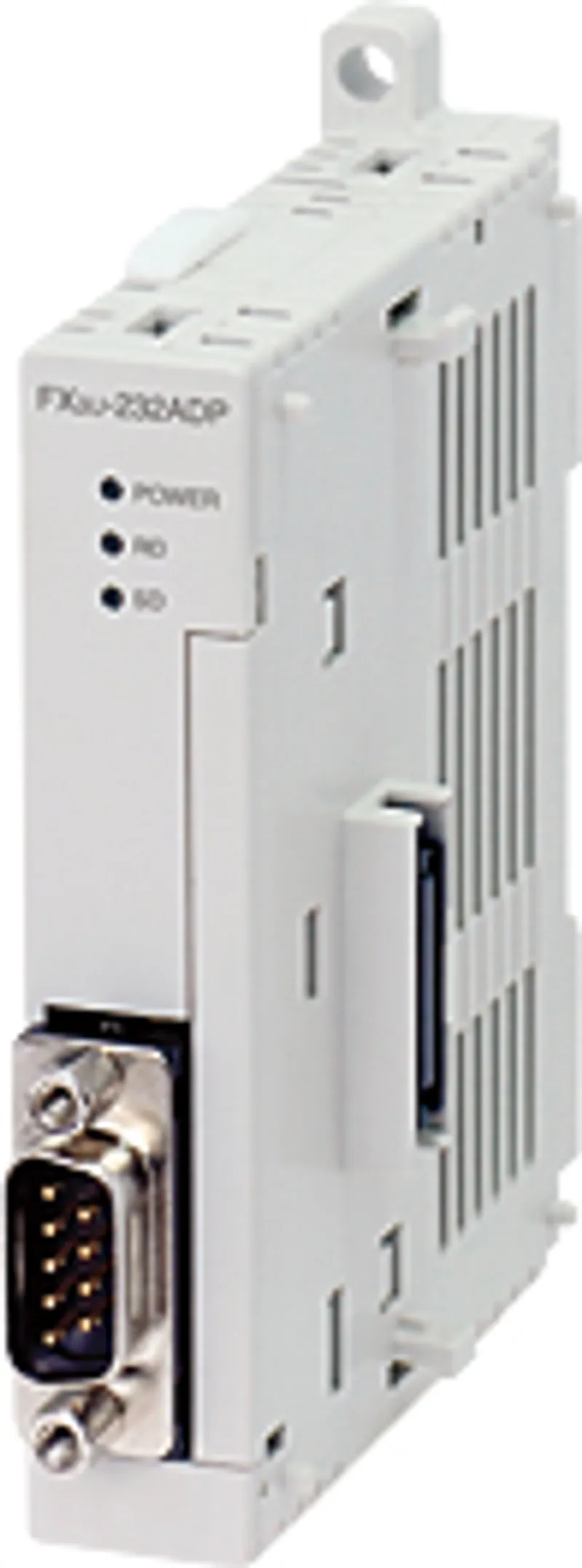

FX3U-232ADP Mitsubishi MELSEC-F (FX) Series Data link/Communication

MPN: FX3U-232ADP · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Discontinued by Mitsubishi Electric (Factory Automation) — we can still source the original FX3U-232ADP (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC-F (FX) Series – Data link/Communication
Lifecycle	Discontinued
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

Can I still buy the FX3U-232ADP now that it is discontinued?

Yes. Mitsubishi Electric (Factory Automation) has discontinued the FX3U-232ADP, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can FX3U-232ADP be shipped?

FX3U-232ADP is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FX3U-232ADP in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FX3U-232ADP and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FX3U-232ADP, subject to availability and destination.

The Mitsubishi Electric FX3U-232ADP is a data link/Communication in the MELSEC-F (FX) Series. RS-232C communication. Mitsubishi Electric has discontinued it (2013/09 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC-F (FX) Series
Category	Data link/Communication
Sales status	2013/09 Discontinued (Mitsubishi Electric)
Outline	RS-232C communication

Specifications

Applicable PLC	FX3S, FX3G, FX3U, FX3GC, FX3UC The FX3S-CNV-ADP is required to connect the FX3S PLC. The FX3G-CNV-ADP is required to connect the FX3G PLC. An expansion board is required to connect the FX3U,FX3UC-32MT-LT(-2).
Number of occupied I/O points	0 point (This number is not related to the maximum number of input/output points of the PLC.)
Mass (weight)	0.08 kg
Communication method	Full-duplex
Communication speed: Non-protocol communication, Computer link	300/600/1200/2400/4800/9600/19200/38400 (bps)
Communication speed: Programming communication	9600/19200/38400/57600/115200 (bps)
Communication format	Non-protocol communication, Computer link (Dedicated protocol formats 1, Dedicated protocol formats 4), Programming communication
Transmission standard	RS-232C standard
Transmission distance	15 m maximum
Connection method	9-pin D-Sub connector (male)
LED	RD, SD, POWER
Isolation method	Photocoupler insulation

Power supply specifications

Power supply

5 V DC 30 mA (internal power supply from PLC main unit)

Specifications

Ambient temperature	0 to 55°C when operating and -25 to 75°C when stored
Ambient humidity	5 to 95%RH (no condensation) when operating
Vibration resistance: Installed on DIN rail: Frequency: 10 to 57 Hz	Half amplitude: 0.035 mm Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Vibration resistance: Installed on DIN rail: Frequency: 57 to 150 Hz	Acceleration: 4.9 m/s 2 Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Vibration resistance: Direct installing: Frequency: 10 to 57 Hz	Half amplitude: 0.075 mm Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Vibration resistance: Direct installing: Frequency: 57 to 150 Hz	Acceleration: 9.8 m/s 2 Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Shock resistance	147 m/s 2 Acceleration, Action time: 11 ms, 3 times by half-sine pulse in each direction X, Y, and Z
Noise resistance	By noise simulator at noise voltage of 1,000 Vp-p, noise width of 1 μs, rise time of 1 ns and period of 30 to 100 Hz
Dielectric withstand voltage	Between 9-pin D-Sub connector and ground terminal of main unit: 500 V AC for 1 min
Insulation resistance	Between 9-pin D-Sub connector and ground terminal of main unit: 5 MΩ or higher by 500 V DC insulation resistance tester
Working atmosphere	Free from corrosive or flammable gas and excessive conductive dusts
Working altitude	2000 m or less Do not use the PLC under pressure higher than the atmospheric pressure. Doing so may damage the PLC.
