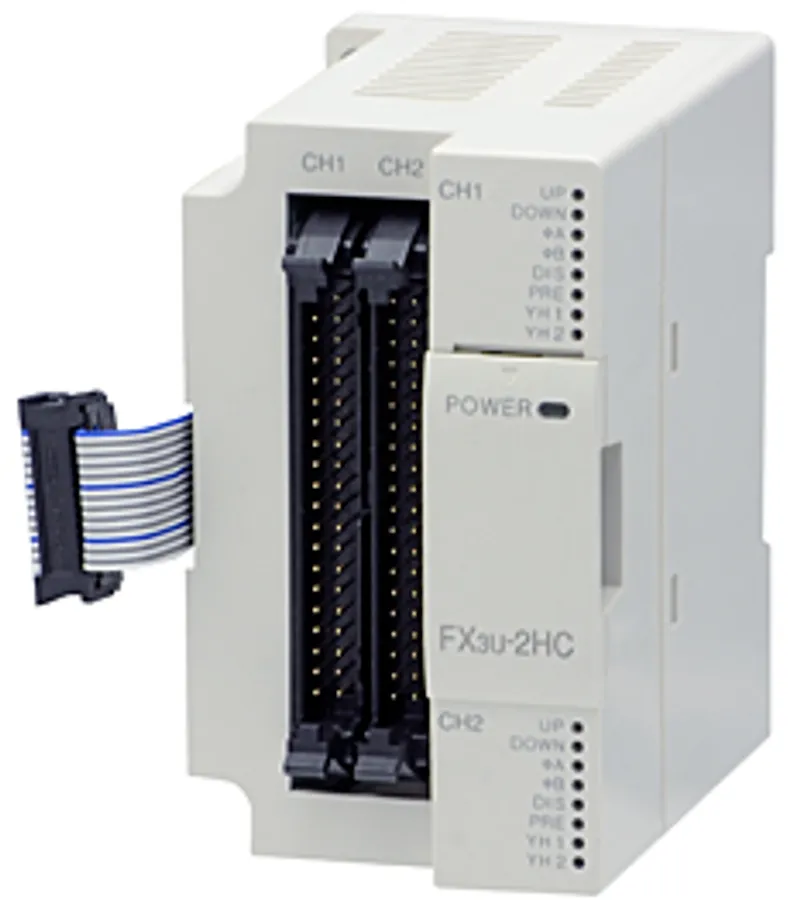

Mitsubishi Electric FX3U-2HC

Mitsubishi MELSEC iQ-F Series High-speed counter module

MPN
FX3U-2HC
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric FX3U-2HC?

The Mitsubishi Electric FX3U-2HC is a high-speed counter module in the MELSEC iQ-F Series. Connector type High speed counter: 2ch Input type: Open collector, differential line driver. Mitsubishi Electric has announced its discontinuation (2028/03 To be end of order) — plan spares now; PartnerPLC also sources it on the surplus market after the end of order. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC iQ-F Series
CategoryHigh-speed counter module
Sales status2028/03 To be end of order (Mitsubishi Electric)
OutlineConnector type High speed counter: 2ch Input type: Open collector, differential line driver

Specifications

Applicable PLCFX5U, FX5UC, FX3U (V2.20 and later), FX3UC (V2.20 or later) [Connecting to the FX5U, FX5UC CPU module] FX5-CNV-BUS or FX5-CNV-BUSC is required to connect to the FX5U/FX5UC CPU module. Select one of the modules according to the system configuration. [Connecting to the connector-type PLC] The FX2NC-CNV-IF or FX3UC-1PS-5V is required to connect the FX3UC.
Number of occupied I/O points8 point (Count either the input or output points of the PLC.)
Mass (weight)0.2 kg
RangeWhen 32-bit is specified: -2,147,483,648 to +2,147,483,647 When 16-bit is specified: 0 to 65,535 (upper limit is set up by BFM #3, #2, #43, #42.)
Counter modeAutomatic UP/DOWN (However, when on 1-phase 1-input mode, UP/DOWN is determined by the following.) [Hardware UP/DOWN] Up/down count is decided by OFF/ON of the A-phase input terminal. [Software UP/DOWN] Up/down count is decided by the current value (K0/K1) of BFM #1, #41.
LEDφA, φB, DIS, PRE, YH1, YH2, POWER, UP, DOWN
No. of input channels2 ch
Input typeOpen collector, differential line driver (The differential line driver output type encoder is connected to 5 V terminal.)
Input voltage5 V DC, 12 V DC, or 24 V DC can be selected with the connection terminal.
Max. response frequency: 1-phase 1-input200 kHz or less
Max. response frequency: 1-phase 2-input200 kHz or less
Max. response frequency: 2-phase input200 kHz or less (1 edge count), 100 kHz or less (2 edge count), 50 kHz or less (4 edge count)
Match output (comparison)When the present value and the comparison set value of the counter are equal, the comparison output is set (ON) within 30 ms and is cleared (OFF) within 100 ms by the reset command.
Output typeOpen collector output 2 points 5 V to 24 V DC, 0.5 A

Power supply specifications

Power supply5 V DC, 245 mA (internal power supply from PLC main unit)

Specifications

Ambient temperature0 to 55°C (32 to 131 °F) when operating and -25 to 75°C (-13 to 167 °F) when stored
Ambient humidity5 to 95%RH (no condensation) when operating
Vibration resistance: Installed on DIN rail: Frequency: 10 to 57 HzHalf amplitude: 0.035 mm Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Vibration resistance: Installed on DIN rail: Frequency: 57 to 150 HzAcceleration: 4.9 m/s 2 Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Vibration resistance: Direct installing: Frequency: 10 to 57 HzHalf amplitude: 0.075 mm Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Vibration resistance: Direct installing: Frequency: 57 to 150 HzAcceleration: 9.8 m/s 2 Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Shock resistance147 m/s 2 Acceleration, Action time: 11 ms, 3 times by half-sine pulse in each direction X, Y, and Z
Noise resistanceBy noise simulator at noise voltage of 1,000 Vp-p, noise width of 1 μs, rise time of 1 ns and period of 30 to 100 Hz
Dielectric withstand voltageBetween batch of all terminals and ground terminal: 500 V AC for 1 min
Insulation resistanceBetween batch of all terminals and ground terminal: 5 MΩ or higher by 500 V DC insulation resistance tester
GroundingClass D grounding (grounding resistance: 100 Ω or less) (Common grounding with a heavy electrical system is not allowed) Ground the PLC independently or jointly.
Working atmosphereFree from corrosive or flammable gas and excessive conductive dusts
Working altitude2000 m or less Do not use the PLC under pressure higher than the atmospheric pressure. Doing so may damage the PLC.

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

FX3U-2HC: frequently asked questions

When can FX3U-2HC be shipped?

FX3U-2HC is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FX3U-2HC in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FX3U-2HC and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FX3U-2HC, subject to availability and destination.
