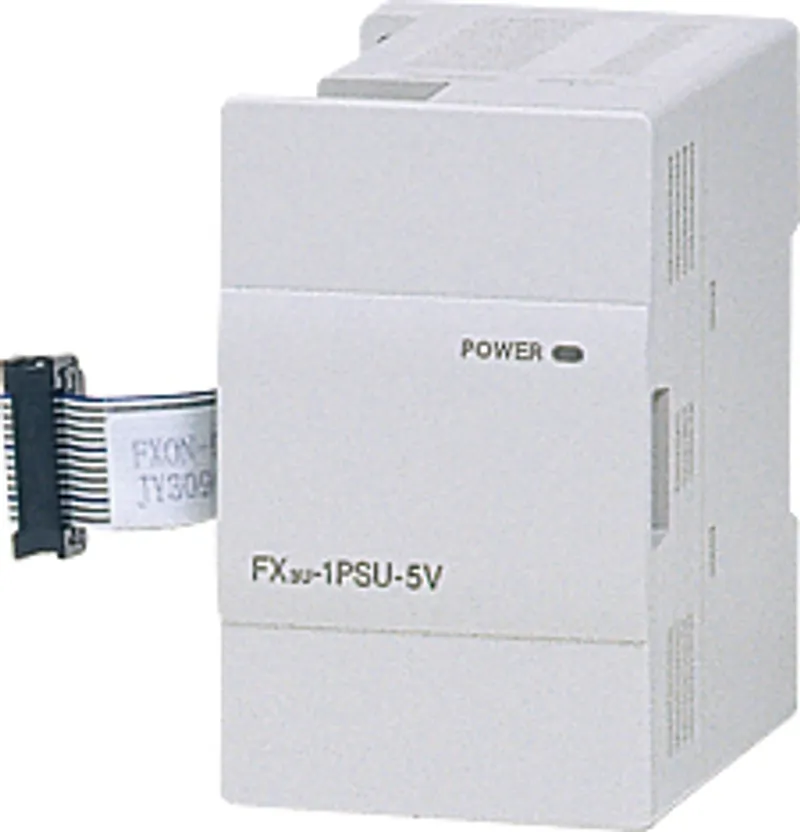

Mitsubishi Electric FX3U-1PSU-5V

Mitsubishi MELSEC iQ-F Series Option

MPN
FX3U-1PSU-5V
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric FX3U-1PSU-5V?

The Mitsubishi Electric FX3U-1PSU-5V is a option in the MELSEC iQ-F Series. For adding when expansion power supply (5 V DC) is insufficient. Mitsubishi Electric has announced its discontinuation (2028/03 To be end of order) — plan spares now; PartnerPLC also sources it on the surplus market after the end of order. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC iQ-F Series
CategoryOption
Sales status2028/03 To be end of order (Mitsubishi Electric)
OutlineFor adding when expansion power supply (5 V DC) is insufficient

Specifications

Applicable PLCFX5U CPU module: Up to two FX5-1PSU-5V and FX3U-1PSU-5V modules can be connected. FX3G PLC: Only one FX3U-1PSU-5V unit can be connected per system. FX3U PLC: Up to two FX3U-1PSU-5V units can be connected per system. [Connecting to the FX5U CPU module] The FX5-CNV-BUS or FX5-CNV-BUSC is required to connect the FX5U. Select one of the modules according to the system configuration.

Power supply specifications

Power supply voltage100 to 240 V AC
Supply voltage fluctuation range85 to 264 V AC
Frequency rating50/60 Hz
Allowable instantaneous power failure timeThe allowable momentary power failure time depends on the power supply used. ・100 V AC power supply system: The operation is continued to the momentary power failure for 10 ms or less. ・200 V AC power supply system: The operation is continued to the momentary power failure for 100 ms or less.
Rush current30 A Max. 5 ms or less/100 V AC 65 A Max. 5 ms or less/200 V AC
Power consumptionMax.20 W
Output current (Internal for supply)24 V DC: 0.3 A 5 V DC: 1 A

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

FX3U-1PSU-5V: frequently asked questions

When can FX3U-1PSU-5V be shipped?

FX3U-1PSU-5V is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FX3U-1PSU-5V in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FX3U-1PSU-5V and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FX3U-1PSU-5V, subject to availability and destination.
