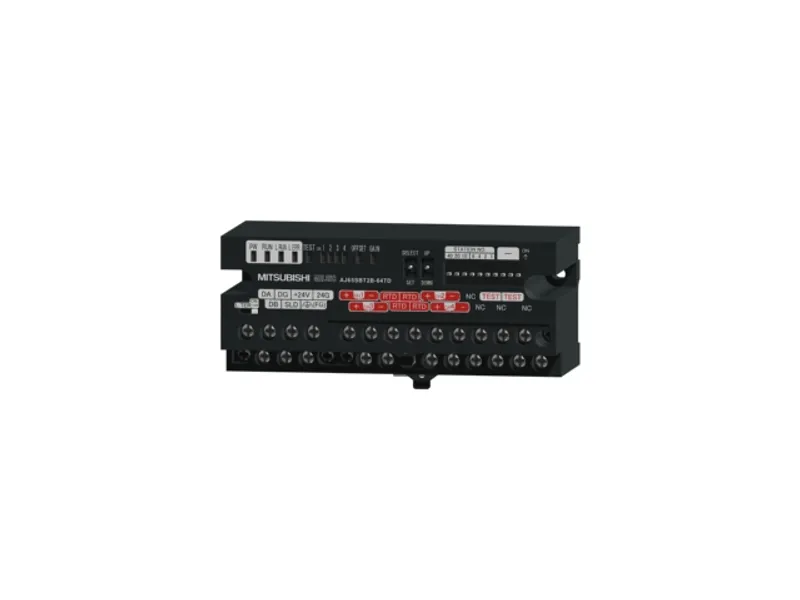

What is the Mitsubishi Electric AJ65SBT2B-64TD?

The Mitsubishi Electric AJ65SBT2B-64TD is a remote I/O in the MELSEC network modules. 4 channels, thermocouple (B, R, S, K, E, J, T, N), conversion speed: 640 ms/4 channels, 2-piece terminal block type, number of occupied stations: 1 station. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC network modules
CategoryRemote I/O
TypeAnalog I/O
SubtypeTemperature input
Outline4 channels, thermocouple (B, R, S, K, E, J, T, N), conversion speed: 640 ms/4 channels, 2-piece terminal block type, number of occupied stations: 1 station

Specifications

Number of analog input points4 points (4 channels + cold junction compensation channels x 2)
Number of channels4 channels
Digital output: Temperature measured value16-bit signed binary value (-2700...18200)
Temperature sensor input-270...1820 ˚C
ResolutionB, R, S, N: 0.3 ˚C K, E, J, T: 0.1 ˚C
Accuracy: Thermocouple type: Measured temperature rangeAccuracy (℃) = (Conversion accuracy) + (Temperature characteristics) Conversion accuracy (at operating ambient temperature 25±5 ゚C) Temperature characteristic (per operating ambient temperature variation of 1 ゚C) Maximum temperature error at ambient temperature 55゚C Effect per wiring resistance 1Ω
Accuracy: B: 0...600 ゚C―
Accuracy: B: 600...1700 ゚CConversion accuracy: ±2.5 ˚C Temperature characteristic: ±0.4 ˚C Maximum temperature error at ambient temperature 55 ゚C: ±12.5 ˚C Effect per wiring resistance: -0.042 ˚C/Ω
Accuracy: B: 1700...1820 ゚C―
Accuracy: R: -50...0 ゚C―
Accuracy: R: 0...1600 ゚CConversion accuracy: ±2.0 ˚C Temperature characteristic: ±0.4 ˚C Maximum temperature error at ambient temperature 55 ゚C: ±12.0 ˚C Effect per wiring resistance: -0.050 ˚C/Ω
Accuracy: R: 1600...1760 ゚C―
Accuracy: S: -50...0 ゚C―
Accuracy: S: 0...1600 ゚CConversion accuracy: ±2.0 ˚C Temperature characteristic: ±0.4 ˚C Maximum temperature error at ambient temperature 55 ゚C: ±12.0 ˚C Effect per wiring resistance: -0.050 ˚C/Ω
Accuracy: S: 1600...1760 ゚C―
Accuracy: K: -270...-200 ゚C―
Accuracy: K: -200...0 ゚CConversion accuracy: Larger value of ±0.5 ˚C and ±0.25 % of measured temperature Temperature characteristic: Larger value of ±0.06 ˚C and ±0.3 % of measured temperature Maximum temperature error at ambient temperature 55 ゚C: ±15.5 ˚C Effect per wiring resistance: -0.009 ˚C/Ω
Accuracy: K: 0...1200 ゚CConversion accuracy: Larger value of ±0.5 ˚C and ±0.25 % of measured temperature Temperature characteristic: Larger value of ±0.06 ˚C and ±0.02 % of measured temperature Maximum temperature error at ambient temperature 55 ゚C: ±9.0 ˚C Effect per wiring resistance: -0.007 ˚C/Ω
Accuracy: K: 1200...1370 ゚C―
Accuracy: E: -270...-200 ゚C―
Accuracy: E: -200...0 ゚CConversion accuracy: Larger value of ±0.5 ˚C and ±0.25 % of measured temperature Temperature characteristic: Larger value of ±0.06 ˚C and ±0.3 % of measured temperature Maximum temperature error at ambient temperature 55 ゚C: ±15.5 ˚C Effect per wiring resistance: -0.006 ˚C/Ω
Accuracy: E: 0...900 ゚CConversion accuracy: Larger value of ±0.5 ˚C and ±0.25 % of measured temperature Temperature characteristic: Larger value of ±0.06 ˚C and ±0.02 % of measured temperature Maximum temperature error at ambient temperature 55 ゚C: ±6.75 ˚C Effect per wiring resistance: -0.005 ˚C/Ω
Accuracy: E: 900...1000 ゚C―
Accuracy: J: -210...-40 ゚C―
Accuracy: J: -40...750 ゚CConversion accuracy: Larger value of ±0.5 ˚C and ±0.25 % of measured temperature Temperature characteristic: Larger value of ±0.06 ˚C and ±0.02 % of measured temperature Maximum temperature error at ambient temperature 55 ゚C: ±5.625 ˚C Effect per wiring resistance: -0.006 ˚C/Ω
Accuracy: J: 750...1200 ゚C―
Accuracy: T: -270...-200 ゚C―
Accuracy: T: -200...0 ゚CConversion accuracy: Larger value of ±0.5 ˚C and ±0.25 % of measured temperature Temperature characteristic: Larger value of ±0.06 ˚C and ±0.3 % of measured temperature Maximum temperature error at ambient temperature 55 ゚C: ±15.5 ˚C Effect per wiring resistance: -0.009 ˚C/Ω
Accuracy: T: 0...350 ゚CConversion accuracy: Larger value of ±0.5 ˚C and ±0.25 % of measured temperature Temperature characteristic: Larger value of ±0.06 ˚C and ±0.02 % of measured temperature Maximum temperature error at ambient temperature 55 ゚C: ±2.625 ˚C Effect per wiring resistance: -0.007 ˚C/Ω
Accuracy: T: 350...400 ゚C―
Accuracy: N: -270...-200 ゚C―
Accuracy: N: -200...0 ゚CConversion accuracy: Larger value of ±0.5 ˚C and ±0.25 % of measured temperature Temperature characteristic: Larger value of ±0.06 ˚C and ±0.3 % of measured temperature Maximum temperature error at ambient temperature 55 ゚C: ±15.5 ˚C Effect per wiring resistance: -0.012 ˚C/Ω
Accuracy: N: 0...1250 ゚CConversion accuracy: Larger value of ±0.5 ˚C and ±0.25 % of measured temperature Temperature characteristic: Larger value of ±0.06 ˚C and ±0.02 % of measured temperature Maximum temperature error at ambient temperature 55 ゚C: ±9.375 ˚C Effect per wiring resistance: -0.010 ˚C/Ω
Accuracy: N: 1250...1300 ゚C―
Accuracy: Cold junction compensation accuracy±1.0 ˚C
Sampling cycle160 ms/4 channels
Conversion speed640 ms/4 channels
Absolute maximum input±5 V
Disconnection detectionAvailable (each channel independent)
Isolation methodBetween all power supply systems and all communication systems and cold junction compensation channels, between thermocouple input and all communication systems and cold junction compensation channels, between thermocouple input channels: transformer isolation
Dielectric withstand voltageBetween all power supply systems and all communication systems and cold junction compensation channels, between thermocouple input and all communication systems and cold junction compensation channels, between thermocouple input channels: 500 V AC for 1 minute
Station typeRemote device station (Ver. 1 remote device station)
Number of occupied stations1 station
Module power supply: Voltage24 V DC (20.4...28.8 V DC)
Module power supply: Current0.12 A (at 24 V DC)
Module power supply: Inrush current1.5 A, 1.3 ms
External interfaceCommunication part, module power supply part: 7-point two-piece terminal block (M3 screw) I/O part: 18-point two-piece terminal block (M3 screw)
Communication cableCC-Link dedicated cable
External dimensions: Height50 mm
External dimensions: Width122 mm
External dimensions: Depth54 mm
Weight0.3 kg

Specifications

Operating ambient temperature0...55 ˚C
Storage ambient temperature-20...75 ˚C
Operating ambient humidity10...90 %RH, non-condensing
Storage ambient humidity10...90 %RH, non-condensing
Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under intermittent vibrationFrequency: 5...8.4 Hz, Half amplitude: 3.5 mm Frequency: 8.4...150 Hz, Constant acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, Z directions
Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under continuous vibrationFrequency: 5...8.4 Hz, Half amplitude: 1.75 mm Frequency: 8.4...150 Hz, Constant acceleration: 4.9 m/s 2
Shock resistanceCompliant with JIS B 3502 and IEC 61131-2 (147 m/s 2 , 3 times each in 3 directions X, Y, Z)
Operating atmosphereNo corrosive gases
Operating altitude0...2000 m
Installation locationInside a control panel
Overvoltage categoryII or less
Pollution degree2 or less
