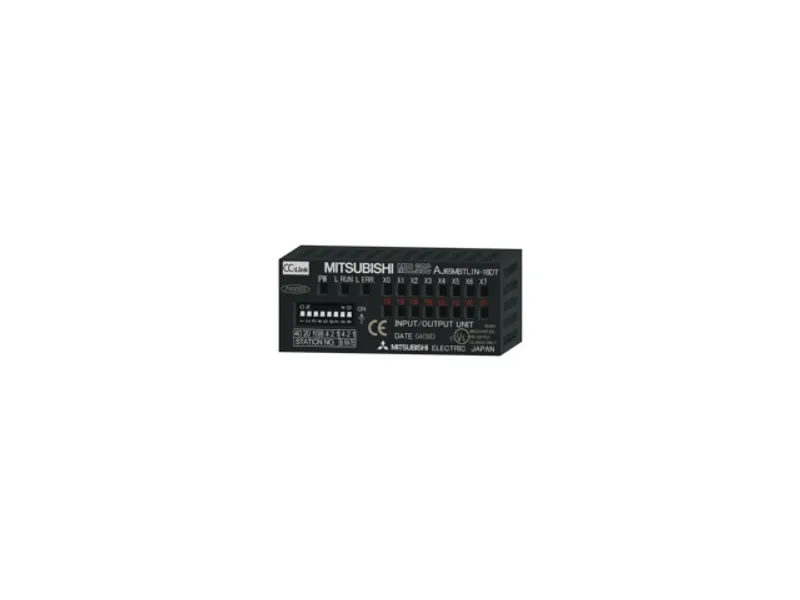

AJ65MBTL1N-16DT Mitsubishi MELSEC network modules Remote I/O

MPN: AJ65MBTL1N-16DT · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC network modules – CC-Link
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can AJ65MBTL1N-16DT be shipped?

AJ65MBTL1N-16DT is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up AJ65MBTL1N-16DT in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for AJ65MBTL1N-16DT and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for AJ65MBTL1N-16DT, subject to availability and destination.

The Mitsubishi Electric AJ65MBTL1N-16DT is a remote I/O in the MELSEC network modules. DC input: 8 points, 24 V DC, 7 mA, response time: 1.5 ms, positive common type, transistor output: 8 points, 24 V DC, 0.1 A/point, 0.8 A/common, response time: 1 ms, sink type, 16 points/common, pin header 44 pin (2-row), number of occupied stations: 1 station. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC network modules
Category	Remote I/O
Type	I/O
Subtype	I/O
Outline	DC input: 8 points, 24 V DC, 7 mA, response time: 1.5 ms, positive common type, transistor output: 8 points, 24 V DC, 0.1 A/point, 0.8 A/common, response time: 1 ms, sink type, 16 points/common, pin header 44 pin (2-row), number of occupied stations: 1 station

Input specifications

Input type	DC input (positive common type)
Number of input points	8 points
Rated input voltage	24 V DC (ripple ratio: within 5 %) (allowable voltage range: 19.2...26.4 V DC)
Rated input current	Approx. 7 mA
Maximum number of simultaneous input points	50 %, refer to the derating chart.
ON voltage/ON current	14 V or more/3.5 mA or more
OFF voltage/OFF current	6 V or less/1.7 mA or less
Input resistance	Approx. 3.3 kΩ
Input response time: OFF to ON	1.5 ms or less (24 V DC)
Input response time: ON to OFF	1.5 ms or less (24 V DC)
Input isolation method	Photocoupler

Output specifications

Output type	Transistor output (sink type)
Number of output points	8 points
Rated load voltage	24 V DC
Operating load voltage range	19.2...26.4 V DC (ripple ratio: within 5 %)
Maximum load current	0.1 A/point, 0.8 A/common
Maximum inrush current	0.7 A, 10 ms or less
Leakage current at OFF	0.1 mA or less
Maximum voltage drop at ON	0.1 V DC or less (TYP.) 0.1 A, 0.2 V DC or less (MAX.) 0.1 A
Output response time: OFF to ON	1 ms or less
Output response time: ON to OFF	1 ms or less (rated load, resistive load)
Surge suppressor	Zener diode
Protection function	Overload protection, overvoltage protection, overheat protection
External power supply for output part: Voltage	19.2...26.4 V DC (ripple ratio: within 5 %)
External power supply for output part: Current	5 mA or less (at 24 V DC and all points ON), excluding external load current
Output isolation method	Photocoupler

Common specifications

Common terminal arrangement	16 points/common
Dielectric withstand voltage	Between all DC external terminals and ground: 500 V AC for 1 minute
Insulation resistance	Between all DC external terminals and ground: 10 MΩ or higher by 500 V DC insulation resistance tester
Station type	Remote I/O station
Number of occupied stations	1 station
Module power supply: Voltage	20.4...26.4 V DC (ripple ratio: within 5 %)
Module power supply: Current	50 mA or less (at TYP. 24 V DC)
External interface	44-pin, 2-row, 2 mm-pitch pin header
Weight	0.03 kg

Specifications

Operating ambient temperature	0...55 ˚C
Storage ambient temperature	-20...75 ˚C
Operating ambient humidity	10...90 %RH, non-condensing
Storage ambient humidity	10...90 %RH, non-condensing
Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under intermittent vibration	Frequency: 10...57 Hz, Amplitude: 0.075 mm Frequency: 57...150 Hz, Acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, Z directions
Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under continuous vibration	Frequency: 10...57 Hz, Amplitude: 0.035 mm Frequency: 57...150 Hz, Acceleration: 4.9 m/s 2
Shock resistance	Compliant with JIS B 3502 and IEC 61131-2 (147 m/s 2 , 3 times each in 3 directions X, Y, Z)
Operating atmosphere	No corrosive gases
Operating altitude	0...2000 m
Installation location	Inside a control panel
Overvoltage category	II or less
Pollution degree	2 or less
