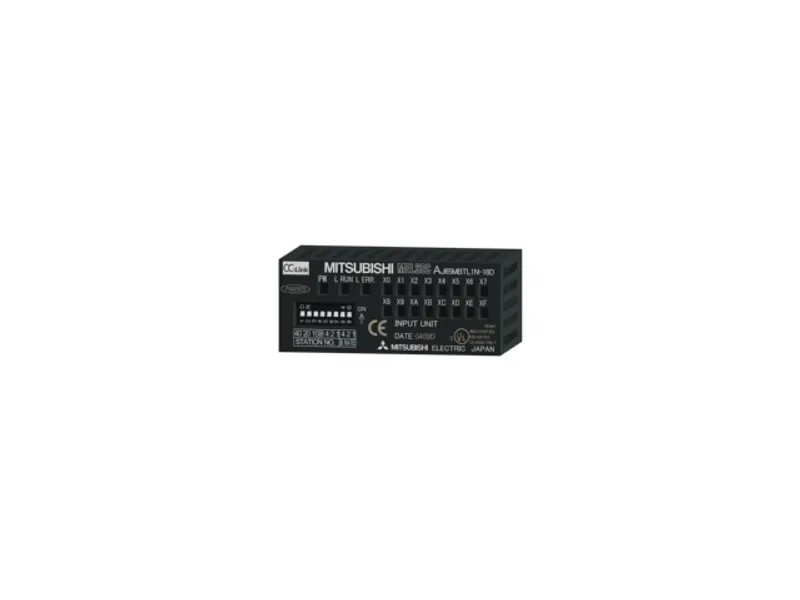

The Mitsubishi Electric AJ65MBTL1N-16D is a remote I/O in the MELSEC network modules. DC input: 16 points, 24 V DC 4 mA, response time: 1.5 ms, 16 points/common, positive common type, 44-pin pin header (2-row), embedded type, number of occupied stations: 1 station. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC network modules
Category	Remote I/O
Type	I/O
Subtype	Input
Outline	DC input: 16 points, 24 V DC 4 mA, response time: 1.5 ms, 16 points/common, positive common type, 44-pin pin header (2-row), embedded type, number of occupied stations: 1 station

Input specifications

Input type	DC input (positive common type)
Number of input points	16 points
Rated input voltage	24 V DC (ripple ratio: within 5 %) (allowable voltage range: 19.2...26.4 V DC)
Rated input current	Approx. 4 mA
Maximum number of simultaneous input points	50 %, refer to the derating chart.
ON voltage/ON current	18 V DC or more/3.5 mA or more
OFF voltage/OFF current	6 V or less/1.7 mA or less
Input resistance	Approx. 5.1 kΩ
Input response time: OFF to ON	1.5 ms or less (24 V DC)
Input response time: ON to OFF	1.5 ms or less (24 V DC)
Input common terminal arrangement	16 points/common
Input isolation method	Photocoupler

Common specifications

Dielectric withstand voltage	Between all DC external terminals and ground: 500 V AC for 1 minute
Insulation resistance	Between all DC external terminals and ground: 10 MΩ or higher by 500 V DC insulation resistance tester
Station type	Remote I/O station
Number of occupied stations	1 station
Module power supply: Voltage	20.4...26.4 V DC (ripple ratio: within 5 %)
Module power supply: Current	35 mA or less (at TYP. 24 V DC)
External interface	44-pin, 2-row, 2 mm-pitch pin header
Weight	0.03 kg

Specifications

Operating ambient temperature	0...55 ˚C
Storage ambient temperature	-20...75 ˚C
Operating ambient humidity	10...90 %RH, non-condensing
Storage ambient humidity	10...90 %RH, non-condensing
Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under intermittent vibration	Frequency: 10...57 Hz, Amplitude: 0.075 mm Frequency: 57...150 Hz, Acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, Z directions
Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under continuous vibration	Frequency: 10...57 Hz, Amplitude: 0.035 mm Frequency: 57...150 Hz, Acceleration: 4.9 m/s 2
Shock resistance	Compliant with JIS B 3502 and IEC 61131-2 (147 m/s 2 , 3 times each in 3 directions X, Y, Z)
Operating atmosphere	No corrosive gases
Operating altitude	0...2000 m
Installation location	Inside a control panel
Overvoltage category	II or less
Pollution degree	2 or less
