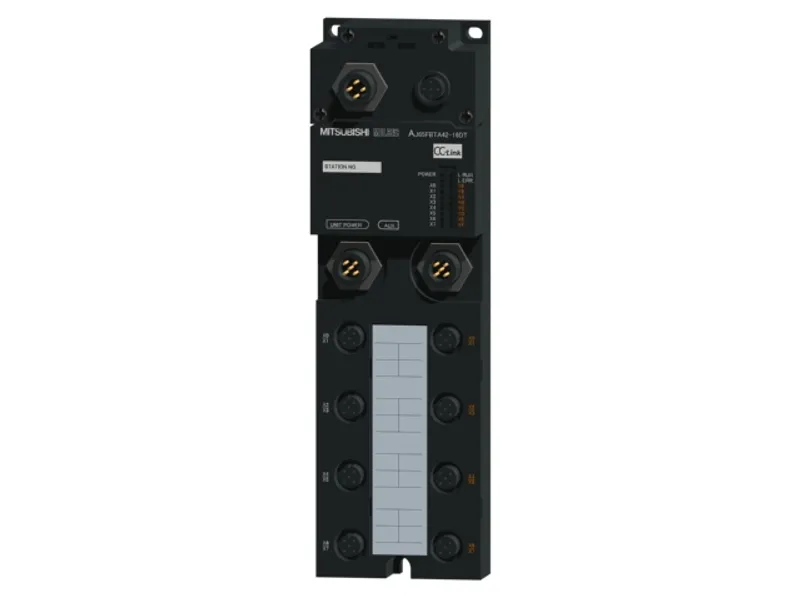

AJ65FBTA42-16DT Mitsubishi MELSEC network modules Remote I/O
Discontinued by Mitsubishi Electric (Factory Automation) — we can still source the original AJ65FBTA42-16DT (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Mitsubishi MELSEC network modules – CC-Link |
| Lifecycle | Discontinued |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
Can I still buy the AJ65FBTA42-16DT now that it is discontinued?
Yes. Mitsubishi Electric (Factory Automation) has discontinued the AJ65FBTA42-16DT, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can AJ65FBTA42-16DT be shipped?
AJ65FBTA42-16DT is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up AJ65FBTA42-16DT in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for AJ65FBTA42-16DT and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for AJ65FBTA42-16DT, subject to availability and destination.
The Mitsubishi Electric AJ65FBTA42-16DT is a remote I/O in the MELSEC network modules. DC input: 8 points, 24 V DC 7 mA, response time: 1.5 ms, 8 points/common, positive common type, 4-wire, transistor output: 8 points, 24 V DC, 0.5 A/point, 2.4 A/common, response time: 1.5 ms, 8 points/common, sink type, 2-wire low profile waterproof type, number of occupied stations: 1 station. Mitsubishi Electric has discontinued it (2022/06 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.
Specifications
Product
| Series | MELSEC network modules |
| Category | Remote I/O |
| Type | I/O |
| Subtype | I/O |
| Sales status | 2022/06 Discontinued (Mitsubishi Electric) |
| Outline | DC input: 8 points, 24 V DC 7 mA, response time: 1.5 ms, 8 points/common, positive common type, 4-wire, transistor output: 8 points, 24 V DC, 0.5 A/point, 2.4 A/common, response time: 1.5 ms, 8 points/common, sink type, 2-wire low profile waterproof type, number of occupied stations: 1 station |
Input specifications
| Input type | DC input (positive common type) |
| Number of input points | 8 points |
| Rated input voltage | 24 V DC (ripple ratio: within 5 %) (allowable voltage range: 20.4...26.4 V DC) |
| Rated input current | Approx. 7 mA |
| Maximum number of simultaneous input points | 100 % |
| ON voltage/ON current | 14 V or more/3.5 mA or more |
| OFF voltage/OFF current | 6 V or less/1.7 mA or less |
| Input resistance | Approx. 3.3 kΩ |
| Input response time: OFF to ON | 1.5 ms or less (24 V DC) |
| Input response time: ON to OFF | 1.5 ms or less (24 V DC) |
| Input isolation method | Photocoupler |
Output specifications
| Output type | Transistor output (sink type) |
| Number of output points | 8 points |
| Rated load voltage | 24 V DC |
| Operating load voltage range | 20.4...26.4 V DC (ripple ratio: within 5 %) |
| Maximum load current | 0.5 A/point, 2.4 A/common |
| Maximum inrush current | 1.0 A, 10 ms or less |
| Leakage current at OFF | 0.25 mA or less |
| Maximum voltage drop at ON | 0.15 V DC or less (TYP.) 0.5 A, 0.25 V DC or less (MAX.) 0.5 A |
| Output response time: OFF to ON | 0.5 ms or less |
| Output response time: ON to OFF | 1.5 ms or less (resistive load) |
| Surge suppressor | Zener diode |
| Protection function | Overload protection, overheat protection |
| External power supply for output part: Voltage | 20.4...26.4 V DC (ripple ratio: within 5 %) |
| External power supply for output part: Current | 10 mA or less (at 24 V DC and all points ON), excluding external load current |
| Output isolation method | Photocoupler |
Common specifications
| Common terminal arrangement | 16 points/common (2- to 4-wire, waterproof connector type) |
| Dielectric withstand voltage | Between all DC external terminals and ground: 500 V AC for 1 minute |
| Insulation resistance | Between all DC external terminals and ground: 10 MΩ or higher by 500 V DC insulation resistance tester |
| Protection degree | IP67 |
| Station type | Remote I/O station |
| Number of occupied stations | 1 station |
| Module power supply: Voltage | 20.4...26.4 V DC (ripple ratio: within 5 %) |
| Module power supply: Current | 50 mA or less (at 24 V DC, all points ON) |
| External interface | Communication part: Waterproof Plug (Male / Female) ･･･ M12-4-pin / M12-5-pin can be used, LINK In Side (Female), LINK OUT Side (Male) module power supply part, I/O power supply part: Waterproof Plug (Female) ･･･ M12-5-pin only can be used. I/O part: Waterproof plug (male) ･･･ M12-4-pin / M12-5-pin can be used. (sold separately) |
| External dimensions: Height | 200 mm |
| External dimensions: Width | 60 mm |
| External dimensions: Depth | 48 mm |
| Weight | 0.40 kg |
Specifications
| Operating ambient temperature | 0...55 ˚C |
| Storage ambient temperature | -20...75 ˚C |
| Operating ambient humidity | Compliant with IP67 |
| Storage ambient humidity | 10...90 %RH, non-condensing |
| Vibration resistance: IEC 61131-2: 2007/JIS B 3502: 2011: Under intermittent vibration | Frequency: 5...8.4 Hz, Half amplitude: 3.5 mm Frequency: 8.4...150 Hz, Constant acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, and Z directions |
| Vibration resistance: IEC 61131-2: 2007/JIS B 3502: 2011: Under continuous vibration | Frequency: 5...8.4 Hz, Half amplitude: 1.75 mm Frequency: 8.4...150 Hz, Constant acceleration: 4.9 m/s 2 |
| Shock resistance: IEC 61131-2: 2007/JIS B 3502: 2011 | Three shocks in each direction per axis, on 3 mutually perpendicular axes (total of 18 shocks) |
| Operating atmosphere | No corrosive gases |
| Operating altitude | 0...2000 m |
| Installation location | Inside a control panel (It can also be used in an environment other than on the control panel if the conditions such as usage ambient temperature and humidity are satisfied.) |
| Overvoltage category | II or less |
| Pollution degree | 2 or less |
Downloads & documentation
Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.
Data sheets & manuals
