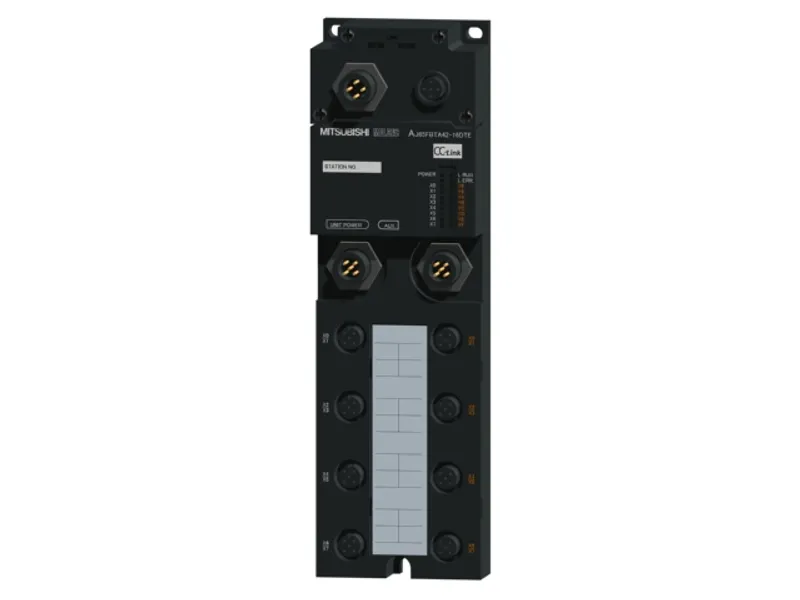

The Mitsubishi Electric AJ65FBTA42-16DTE is a remote I/O in the MELSEC network modules. DC input: 8 points, 24 V DC, 7 mA, response time: 1.5 ms, 8 points/common, negative common type, 4-wire, transistor output: 8 points, 24 V DC, 1.0 A/point, 4.0 A/common, response time: 1.5 ms, 8 points/common, source type, 2-wire, low profile waterproof type, number of occupied stations: 1 station. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC network modules
Category	Remote I/O
Type	I/O
Subtype	I/O
Outline	DC input: 8 points, 24 V DC, 7 mA, response time: 1.5 ms, 8 points/common, negative common type, 4-wire, transistor output: 8 points, 24 V DC, 1.0 A/point, 4.0 A/common, response time: 1.5 ms, 8 points/common, source type, 2-wire, low profile waterproof type, number of occupied stations: 1 station

Input specifications

Input type	DC input (negative common type)
Number of input points	8 points
Rated input voltage	24 V DC (ripple ratio: within 5 %) (allowable voltage range: 20.4...26.4 V DC)
Rated input current	Approx. 7 mA
Maximum number of simultaneous input points	100 %
ON voltage/ON current	14 V or more/3.5 mA or more
OFF voltage/OFF current	6 V or less/1.7 mA or less
Input resistance	Approx. 3.3 kΩ
Input response time: OFF to ON	1.5 ms or less (24 V DC)
Input response time: ON to OFF	1.5 ms or less (24 V DC)
Input isolation method	Photocoupler

Output specifications

Output type	Transistor output (source type)
Number of output points	8 points
Rated load voltage	24 V DC
Operating load voltage range	20.4...26.4 V DC (ripple ratio: within 5 %)
Maximum load current	1.0 A/point, 4.0 A/common
Maximum inrush current	2.0 A, 10 ms or less
Leakage current at OFF	0.3 mA or less
Maximum voltage drop at ON	0.15 V DC or less (TYP.) 1.0 A, 0.2 V DC or less (MAX.) 1.0 A
Output response time: OFF to ON	0.5 ms or less
Output response time: ON to OFF	1.5 ms or less (resistive load)
Surge suppressor	Zener diode
Protection function	Overload protection, overheat protection
External power supply for output part: Voltage	20.4...26.4 V DC (ripple ratio: within 5 %)
External power supply for output part: Current	15 mA or less (at 24 V DC and all points ON), excluding external load current
Output isolation method	Photocoupler

Common specifications

Common terminal arrangement	16 points/common (input: 2- to 4-wire, water-proof connector type, output: 2-wire, water-proof connector type)
Dielectric withstand voltage	Between all DC external terminals and ground: 500 V AC for 1 minute
Insulation resistance	Between all DC external terminals and ground: 10 MΩ or higher by 500 V DC insulation resistance tester
Protection degree	IP67
Station type	Remote I/O station
Number of occupied stations	1 station
Module power supply: Voltage	20.4...26.4 V DC (ripple ratio: within 5 %)
Module power supply: Current	45 mA or less (at 24 V DC, all points ON)
External interface	Communication part: Waterproof Plug (Male / Female) ･･･ M12-4-pin / M12-5-pin can be used, LINK In Side (Female), LINK OUT Side (Male) module power supply part, I/O power supply part: Waterproof Plug (Female) ･･･ M12-5-pin only can be used. I/O part: Waterproof plug (male) ･･･ M12-4-pin / M12-5-pin can be used. (sold separately)
External dimensions: Height	200 mm
External dimensions: Width	60 mm
External dimensions: Depth	48 mm
Weight	0.40 kg

Specifications

Operating ambient temperature	0...55 ˚C
Storage ambient temperature	-20...75 ˚C
Operating ambient humidity	Compliant with IP67
Storage ambient humidity	10...90 %RH, non-condensing
Vibration resistance: IEC 61131-2: 2007/JIS B 3502: 2011: Under intermittent vibration	Frequency: 5...8.4 Hz, Half amplitude: 3.5 mm Frequency: 8.4...150 Hz, Constant acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, and Z directions
Vibration resistance: IEC 61131-2: 2007/JIS B 3502: 2011: Under continuous vibration	Frequency: 5...8.4 Hz, Half amplitude: 1.75 mm Frequency: 8.4...150 Hz, Constant acceleration: 4.9 m/s 2
Shock resistance: IEC 61131-2: 2007/JIS B 3502: 2011	Three shocks in each direction per axis, on 3 mutually perpendicular axes (total of 18 shocks)
Operating atmosphere	No corrosive gases
Operating altitude	0...2000 m
Installation location	Inside a control panel (It can also be used in an environment other than on the control panel if the conditions such as usage ambient temperature and humidity are satisfied.)
Overvoltage category	II or less
Pollution degree	2 or less
