Mitsubishi Electric AJ65BTB2-16R

Mitsubishi MELSEC network modules Remote I/O

MPN
AJ65BTB2-16R
Price and lead time confirmed within 1 business day

Discontinued by Mitsubishi Electric (Factory Automation) — we can still source the original AJ65BTB2-16R (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric AJ65BTB2-16R?

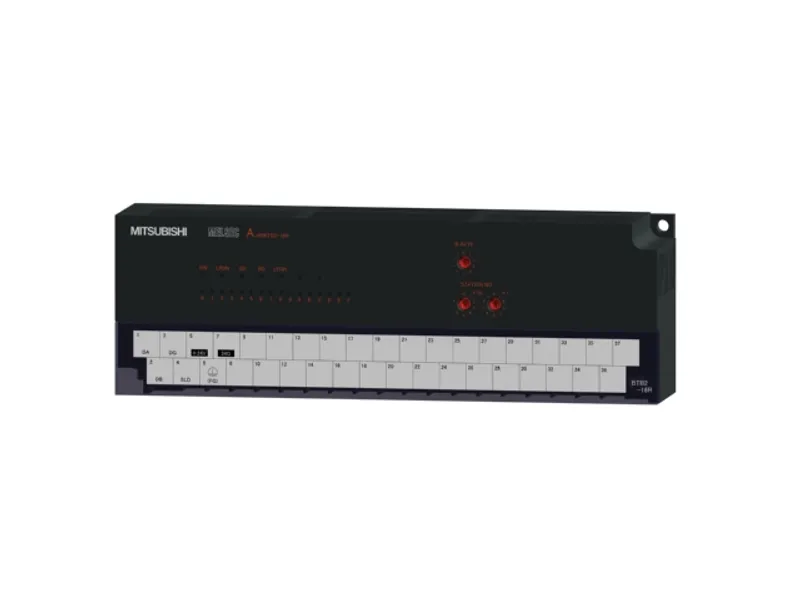

The Mitsubishi Electric AJ65BTB2-16R is a remote I/O in the MELSEC network modules. Contact output: 16 points, 24 V DC/240 V AC, 2 A/point, 8 A/common, response time: 12 ms, 8 points/common, 2-wire 2-piece terminal block type, number of occupied stations: 1 station. Mitsubishi Electric has discontinued it (2021/09 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC network modules
CategoryRemote I/O
TypeI/O
SubtypeOutput
Sales status2021/09 Discontinued (Mitsubishi Electric)
OutlineContact output: 16 points, 24 V DC/240 V AC, 2 A/point, 8 A/common, response time: 12 ms, 8 points/common, 2-wire 2-piece terminal block type, number of occupied stations: 1 station

Output specifications

Number of output points16 points
Rated switching voltage, current24 V DC 2 A (resistive load)/point, 240 V AC 2 A (cosø=1)/point, 8 A/common
Minimum switching load5 V DC, 1 mA
Maximum switching voltage250 V AC, 110 V DC
Life: Mechanical20 million times or more
Life: ElectricalRated switching voltage/current load: More than 100 thousand times 200 V AC 1.5 A, 240 V AC 1 A (COSø=0.7): 100 thousand times 200 V AC 1 A, 240 V AC 0.5 A (COSø=0.35): 100 thousand times 24 V DC 1 A, 100 V DC 0.1 A (L/R=7 ms): 100 thousand times
Maximum switching frequency3600 times/hour
Output response time: OFF to ON10 ms or less
Output response time: ON to OFF12 ms or less
Surge suppressorNone
External power supply for output part: Voltage24 V DC ±10 % (ripple voltage: 4 Vp-p or lower)
External power supply for output part: Current90 mA or less (at TYP. 24 V DC and all points ON)
Output common terminal arrangement8 points/common (2-wire, terminal block type)
Output isolation methodPhotocoupler

Common specifications

Dielectric withstand voltageBetween all AC external terminals and ground: 1500 V AC for 1 minute Between all DC external terminals and ground: 500 V AC for 1 minute
Insulation resistanceBetween all AC external terminals and ground, between all DC external terminals and ground: 10 MΩ or higher by 500 V DC insulation resistance tester
Station typeRemote I/O station
Number of occupied stations1 station
Module power supply: Voltage24 V DC (ripple ratio: within 5 %) (allowable voltage range: 15.6...28.8 V DC)
Module power supply: Current85 mA or less (at TYP. 24 V DC)
External interfaceCommunication part, module power supply part: 7-point two-piece terminal block (M3.5 screw) I/O power supply part, I/O part: 37-point two-piece terminal block (M3.5 screw)
External dimensions: Height65 mm
External dimensions: Width197.4 mm
External dimensions: Depth46 mm
Weight0.47 kg

Specifications

Operating ambient temperature0...55 ˚C
Storage ambient temperature-20...75 ˚C
Operating ambient humidity10...90 %RH, non-condensing
Storage ambient humidity10...90 %RH, non-condensing
Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under intermittent vibrationFrequency: 5...8.4 Hz, Half amplitude: 3.5 mm Frequency: 8.4...150 Hz, Constant acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, Z directions
Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under continuous vibrationFrequency: 5...8.4 Hz, Half amplitude: 1.75 mm Frequency: 8.4...150 Hz, Constant acceleration: 4.9 m/s 2
Shock resistanceCompliant with JIS B 3502 and IEC 61131-2 (147 m/s 2 , 3 times each in 3 directions X, Y, Z)
Operating atmosphereNo corrosive gases
Operating altitude0...2000 m
Installation locationInside a control panel
Overvoltage categoryII or less
Pollution degree2 or less

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

AJ65BTB2-16R: frequently asked questions

Can I still buy the AJ65BTB2-16R now that it is discontinued?

Yes. Mitsubishi Electric (Factory Automation) has discontinued the AJ65BTB2-16R, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can AJ65BTB2-16R be shipped?

AJ65BTB2-16R is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up AJ65BTB2-16R in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for AJ65BTB2-16R and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for AJ65BTB2-16R, subject to availability and destination.
