AJ65BT-D75P2-S3 Mitsubishi MELSEC network modules Remote I/O

MPN: AJ65BT-D75P2-S3 · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Discontinued by Mitsubishi Electric (Factory Automation) — we can still source the original AJ65BT-D75P2-S3 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC network modules – CC-Link
Lifecycle	Discontinued
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

Can I still buy the AJ65BT-D75P2-S3 now that it is discontinued?

Yes. Mitsubishi Electric (Factory Automation) has discontinued the AJ65BT-D75P2-S3, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can AJ65BT-D75P2-S3 be shipped?

AJ65BT-D75P2-S3 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up AJ65BT-D75P2-S3 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for AJ65BT-D75P2-S3 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for AJ65BT-D75P2-S3, subject to availability and destination.

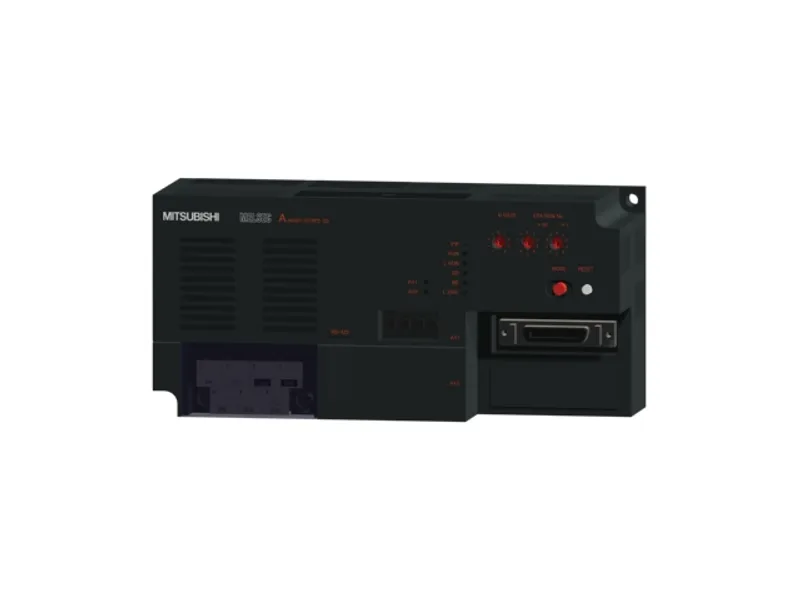

The Mitsubishi Electric AJ65BT-D75P2-S3 is a remote I/O in the MELSEC network modules. 2 axes, 2-axis linear interpolation, 2-axis circular interpolation, control unit: pulse/mm/inch/degree, number of positioning data: 600/axis, maximum output pulse: 400 kpps (differential driver)/200 kpps (open collector), 36-pin collector, number of occupied stations: 4 stations. Mitsubishi Electric has discontinued it (2021/03 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC network modules
Category	Remote I/O
Type	Positioning
Subtype	Open collector output
Sales status	2021/03 Discontinued (Mitsubishi Electric)
Outline	2 axes, 2-axis linear interpolation, 2-axis circular interpolation, control unit: pulse/mm/inch/degree, number of positioning data: 600/axis, maximum output pulse: 400 kpps (differential driver)/200 kpps (open collector), 36-pin collector, number of occupied stations: 4 stations

Specifications

No. of control axes	2 axes
Interpolation function	2-axis linear interpolation 2-axis circular interpolation
Control method	PTP (Point To Point) control, path control (both linear and arc can be set), speed control, speed-position switching control
Control unit	mm, inch, degree, pulse
Positioning data	600 data /axis
Backup	Parameters and positioning data can be saved on flash ROM (battery-less backup).
Positioning: Positioning system: PTP control	Incremental system/absolute system
Positioning: Positioning system: Speed-position switching control	Incremental system/absolute system
Positioning: Positioning system: Path control	Incremental system/absolute system
Positioning: Positioning range: In absolute system	Standard mode: ･ -214748364.8...214748364.7 µm ･ -21474.83648...21474.83647 inch ･ 0...359.99999 degree ･ -2147483648...2147483647 pulse Stepping motor mode: ･ -13421772.8...13421772.7 µm ･ -1342.17728...1342.17727 inch ･ 0...359.99999 degree ･ -134217728...134217727 pulse
Positioning: Positioning range: In incremental system	Standard mode: ･ -214748364.8...214748364.7 µm ･ -21474.83648...21474.83647 inch ･ -21474.83648...21474.83647 degree ･ -2147483648...2147483647 pulse Stepping motor mode: ･ -13421772.8...13421772.7 µm ･ -1342.17728...1342.17727 inch ･ -1342.17728...1342.17727 degree ･ -134217728...134217727 pulse
Positioning: Positioning range: In speed-position switching control (INC mode)	Standard mode: ･ 0...214748364.7 µm ･ 0...21474.83647 inch ･ 0...21474.83647 degree ･ 0...2147483647 pulse Stepping motor mode: ･ 0...13421772.7 µm ･ 0...1342.17727 inch ･ 0...1342.17727 degree ･ 0...134217727 pulse
Positioning: Positioning range: In speed-position switching control (ABS mode)	Standard mode: ･ 0...359.99999 degree Stepping motor mode: ･ 0...359.99999 degree
Positioning: Speed command	Standard mode: ･ 0.01...6000000.00 mm/min ･ 0.001...600000.000 inch/min ･ 0.001...600000.000 degree/min ･ 1...1000000 pulse/s Stepping motor mode: ･ 0.01...375000.00 mm/min ･ 0.001...37500.000 inch/min ･ 0.001...37500.000 degree/min ･ 1...62500 pulse/s
Positioning: Acceleration/deceleration process	Automatic trapezoidal acceleration/deceleration, S-curve acceleration/deceleration
Positioning: Acceleration/deceleration time	Changeover between 1 to 65535 ms / 1 to 8388608 ms possible Four patterns can be set each for acceleration time and deceleration time
Positioning: Sudden stop deceleration time	Changeover between 1 to 65535 ms / 1 to 8388608 ms possible (Same range as acceleration/deceleration time)
Positioning: Starting time	20 ms or less (link scan time excluded)
Maximum output pulse	When connected to differential driver : 400k pulse/s When connected to open collector : 200k pulse/s
Maximum connection distance between servos	When connected to differential driver : 10 m When connected to open collector : 2 m
Dielectric withstand voltage	Between all power supply and communication system terminals and external input/output terminals: 500 V AC for 1 minute
Insulation resistance	Between all power supply and communication system terminals and external input/output terminals: 10 MΩ or higher by 500 V DC insulation resistance tester
Station type	Intelligent device station (Ver. 1 intelligent device station)
Number of occupied stations	4 stations
External interface	Communication part, module power supply part: 7-point two-piece terminal block (M3.5 screw) External device connection part: 10136-3000VE (soldered type, accessory), 10136-6000EL (crimp type, sold separately)
Module power supply: Voltage	24 V DC (20.4...26.4 V DC)
Module power supply: Current	0.30 A
External dimensions: Height	80 mm
External dimensions: Width	170 mm
External dimensions: Depth	63.5 mm
Weight	0.5 kg

Specifications

Operating ambient temperature	0...55 ˚C
Storage ambient temperature	-20...75 ˚C
Operating ambient humidity	10...90 %RH, non-condensing
Storage ambient humidity	10...90 %RH, non-condensing
Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under intermittent vibration	Frequency: 5...8.4 Hz, Half amplitude: 3.5 mm Frequency: 8.4...150 Hz, Constant acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, Z directions
Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under continuous vibration	Frequency: 5...8.4 Hz, Half amplitude: 1.75 mm Frequency: 8.4...150 Hz, Constant acceleration: 4.9 m/s 2
Shock resistance	Compliant with JIS B 3502 and IEC 61131-2 (147 m/s 2 , 3 times each in 3 directions X, Y, Z)
Operating atmosphere	No corrosive gases
Operating altitude	0...2000 m
Installation location	Inside a control panel
Overvoltage category	II or less
Pollution degree	2 or less

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

AJ65BT-D75P2-S3 Positioning Module User's Manual (IB-66824-I)	PDF · 10.83MB
AJ65BT-D75P2-S3 Positioning Module User's Manual (Hardware) (IB-66829-G)	PDF · 1.35MB

12-month warrantyon all new stock

3-month warrantyon used & refurbished parts

30-day returnsno restocking fee on unused parts

Global shippingFast, tracked delivery worldwide
