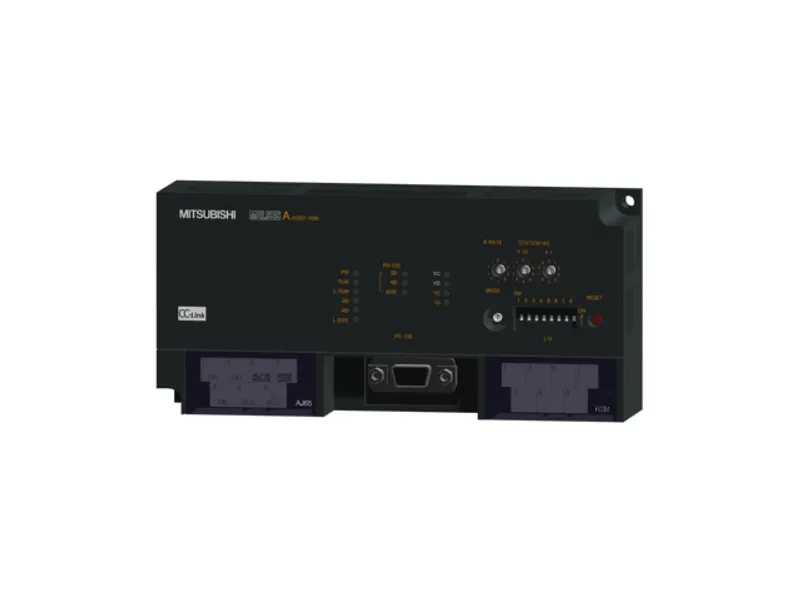

AJ65BT-R2N Mitsubishi MELSEC network modules Bridge/repeater

MPN: AJ65BT-R2N · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC I/OLINK, MELSECNET & A-Series Network Modules
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can AJ65BT-R2N be shipped?

AJ65BT-R2N is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up AJ65BT-R2N in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for AJ65BT-R2N and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for AJ65BT-R2N, subject to availability and destination.

The Mitsubishi Electric AJ65BT-R2N is a bridge/repeater in the MELSEC network modules. RS-232: 1 channel, DC input: 2 points, transistor output: 2 points number of occupied stations: 1 station. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC network modules
Category	Bridge/repeater
Type	Others
Subtype	RS-232 interface
Outline	RS-232: 1 channel, DC input: 2 points, transistor output: 2 points number of occupied stations: 1 station

Specifications

Interface	RS-232-compliance (D-sub 9 pin female)
Communication method	Full-duplex communications
Synchronization method	Start-stop synchronization method
Transmission speed	300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 bps
Transmission distance	Maximum 15 m
Data format: Start bits	1
Data format: Data bits	7/8
Data format: Parity bits	1 (vertical parity) or none
Data format: Stop bits	1/2
Error detection: Parity check	Yes (odd/even) / No
Communication control (flow control)	DTR/DSR (ER/DR) control DC1/DC3 control
OS reception area	5120 bytes

General purpose input specifications (DC input)

Number of input points	2 points
Input type	DC input (positive/negative shared common type)
Rated input voltage	24 V DC (ripple ratio: within 5 %) (allowable voltage range: 19.2...28.8 V DC)
Rated input current	Approx. 7 mA
Maximum number of simultaneous input points	100 %
ON voltage/ON current	14 V or more/3.5 mA or more
OFF voltage/OFF current	6 V or less/1.7 mA or less
Input resistance	Approx. 3.3 kΩ
Input response time: OFF to ON	10 ms or less
Input response time: ON to OFF	10 ms or less
Input common terminal arrangement	2 points/common
Input isolation method	Photocoupler

General purpose output specifications (Transistor output)

Number of output points	2 points
Output type	Transistor output (sink type)
Rated load voltage	12...24 V DC (+20/-15 %)
Operating load voltage range	10.2...28.8 V DC (ripple ratio: within 5 %)
Maximum load current	0.1 A/point, 0.2 A/common
Maximum inrush current	0.7 A, 10 ms or less
Leakage current at OFF	0.1 mA or less
Maximum voltage drop at ON	0.1 V DC (TYP.) 0.1 A, 0.2 V DC (MAX.) 0.1 A
Output response time: OFF to ON	1 ms or less
Output response time: ON to OFF	1 ms or less (resistive load)
Surge suppressor	Zener diode
Protection function: Overheat protection function	Activated in increments of 1 point.
Protection function: Overload protection function	Activated in increments of 1 point.
External power supply for output part: Voltage	10.2...28.8 V DC (ripple ratio: within 5 %)
External power supply for output part: Current	10 mA or less (at 24 V DC and all points ON)
Output common terminal arrangement	2 points/common
Output isolation method	Photocoupler

Common specifications

Dielectric withstand voltage	Between all DC external terminals and ground: 500 V AC for 1 minute
Insulation resistance	Between all DC external terminals and ground: 10 MΩ or higher by 500 V DC insulation resistance tester
Station type	Intelligent device station (Ver. 1 intelligent device station)
Number of occupied stations	1 station
External interface	Communication part, module power supply part: 7-point two-piece terminal block (M3.5 screw) RS-232 part: 9-pin D-sub (female) screw type General-purpose I/O part: 7-point two-piece terminal block (M3.5 screw)
Communication cable	Ver.1.10 compatible CC-Link dedicated cable CC-Link dedicated cable (Ver.1.00 compatible) CC-Link dedicated high-performance cable (Ver.1.00 compatible)
Module power supply: Voltage	24 V DC (20.4...26.4 V DC, ripple ratio: within 5 %)
Module power supply: Current	0.11 A (at TYP. 24 V DC)
Module power supply: Allowable momentary power failure time	1 ms
External dimensions: Height	80 mm
External dimensions: Width	170 mm
External dimensions: Depth	47 mm
Weight	0.40 kg

Specifications

Operating ambient temperature	0...55 ˚C
Storage ambient temperature	-20...75 ˚C
Operating ambient humidity	10...90 %RH, non-condensing
Storage ambient humidity	10...90 %RH, non-condensing
Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under intermittent vibration	Frequency: 5...8.4 Hz, Half amplitude: 3.5 mm Frequency: 8.4...150 Hz, Constant acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, Z directions
Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under continuous vibration	Frequency: 5...8.4 Hz, Half amplitude: 1.75 mm Frequency: 8.4...150 Hz, Constant acceleration: 4.9 m/s 2
Shock resistance	Compliant with JIS B 3502 and IEC 61131-2 (147 m/s 2 , 3 times each in 3 directions X, Y, Z)
Operating atmosphere	No corrosive gases
Operating altitude	0...2000 m
Installation location	Inside a control panel
Overvoltage category	II or less
Pollution degree	2 or less

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

CC-Link System RS-232 Interface Module User's Manual (Nonprocedural Protocol Mode) (SH-080685ENG-F)	PDF · 12.96MB
CC-Link System RS-232 Interface Module User's Manual (MELSOFT Connection Mode) (SH-080687ENG-E)	PDF · 3.76MB
CC-Link System RS-232 Interface Module User's Manual (Hardware) (IB-0800381E-E)	PDF · 0.48MB
