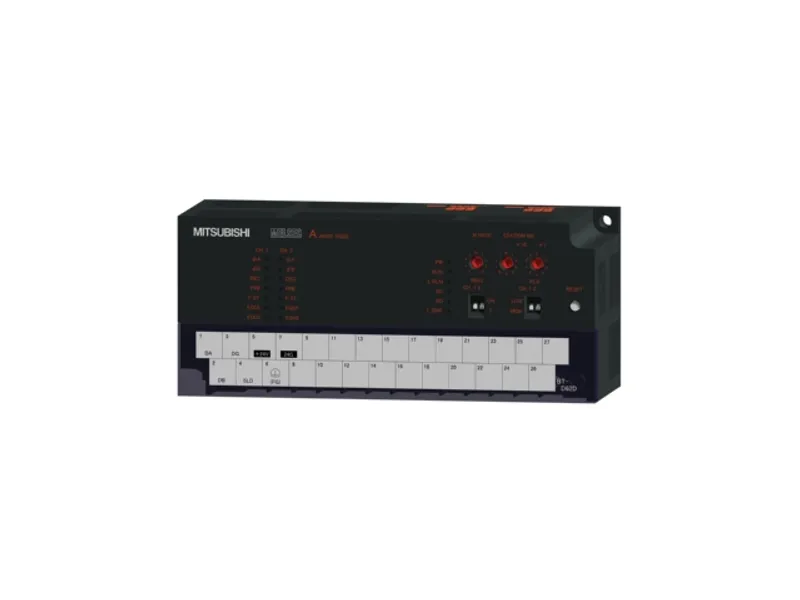

AJ65BT-D62D Mitsubishi MELSEC network modules Remote I/O

MPN: AJ65BT-D62D · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC I/OLINK, MELSECNET & A-Series Network Modules
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can AJ65BT-D62D be shipped?

AJ65BT-D62D is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up AJ65BT-D62D in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for AJ65BT-D62D and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for AJ65BT-D62D, subject to availability and destination.

The Mitsubishi Electric AJ65BT-D62D is a remote I/O in the MELSEC network modules. 2 channels, 400/10 kpps (1-phase input), 300/7 kpps (2-phase input), count input signal: differential line driver, external output: 5/12/24 V DC, coincidence output: transistor output (open collector), 12/24V DC, 0.5 A, terminal block type, number of occupied stations: 4 stations. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC network modules
Category	Remote I/O
Type	High-speed counter
Subtype	Differential input
Outline	2 channels, 400/10 kpps (1-phase input), 300/7 kpps (2-phase input), count input signal: differential line driver, external output: 5/12/24 V DC, coincidence output: transistor output (open collector), 12/24V DC, 0.5 A, terminal block type, number of occupied stations: 4 stations

Specifications

Number of channels	2 channels
Count input signal: Phase	1-phase input, 2-phase input
Count input signal: Signal level (øA, øB)	EIA Standard RS-422-A Differential line driver level (AM26LS31 [manufactured by Texas Instruments] or equivalent)
Counter: Counting speed (maximum)	HIGH position: 400k pulse/s (1-phase input), 300k pulse/s (2-phase input) LOW position: 10k pulse/s (1-phase input), 7k pulse/s (2-phase input)
Counter: Counting range	24-bit binary values (0...16777215)
Counter: Type	UP/DOWN Preset counter + Ring counter function
Counter: Minimum count pulse width (Duty ratio 50 %)	HIGH position: 1-phase input: 2.5 µs (ON/OFF 1.25 µs), 2-phase input: 3.3 µs (ON/OFF 1.65 µs) LOW position: 1-phase input: 100 µs (ON/OFF 50 µs), 2-phase input: 142 µs (ON/OFF 71 µs)
External input: Preset	5/12/24 V DC 2...5 mA
External input: Function start	5/12/24 V DC 2...5 mA
External input: Response time	OFF to ON： 0.5 ms or less ON to OFF： 3 ms or less
Coincidence output: Comparison range	24-bit binary
External output: Coincidence output	2 A/common
External output: Response time	0.1 ms or less
Dielectric withstand voltage	Between all DC external terminals and ground: 500 V AC for 1 minute
Insulation resistance	Between all DC external terminals and ground: 10 MΩ or higher by 500 V DC insulation resistance tester
Station type	Remote device station (Ver. 1 remote device station)
Number of occupied stations	4 stations
Module power supply: Voltage	18.0...28.8 V DC
Module power supply: Current	100 mA
Module power supply: Allowable momentary power failure time	1 ms
External interface	Communication part, module power supply part: 7-point two-piece terminal block (M3.5 screw) I/O part: 27-point two-piece terminal block (M3.5 screw)
Communication cable	CC-Link dedicated cable
External dimensions: Height	65 mm
External dimensions: Width	151.9 mm
External dimensions: Depth	63 mm
Weight	0.42 kg

Specifications

Operating ambient temperature	0...55 ˚C
Storage ambient temperature	-20...75 ˚C
Operating ambient humidity	10...90 %RH, non-condensing
Storage ambient humidity	10...90 %RH, non-condensing
Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under intermittent vibration	Frequency: 5...8.4 Hz, Half amplitude: 3.5 mm Frequency: 8.4...150 Hz, Constant acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, Z directions
Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under continuous vibration	Frequency: 5...8.4 Hz, Half amplitude: 1.75 mm Frequency: 8.4...150 Hz, Constant acceleration: 4.9 m/s 2
Shock resistance	Compliant with JIS B 3502 and IEC 61131-2 (147 m/s 2 , 3 times each in 3 directions X, Y, Z)
Operating atmosphere	No corrosive gases
Operating altitude	0...2000 m
Installation location	Inside a control panel
Overvoltage category	II or less
Pollution degree	2 or less
