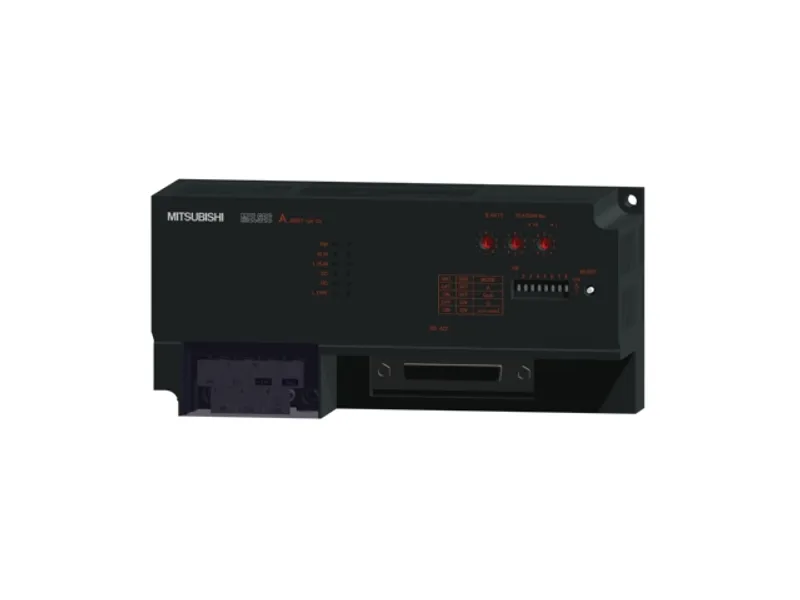

Mitsubishi Electric AJ65BT-G4-S3

Mitsubishi MELSEC network modules Bridge/repeater

MPN
AJ65BT-G4-S3
Price and lead time confirmed within 1 business day

Discontinued by Mitsubishi Electric (Factory Automation) — we can still source the original AJ65BT-G4-S3 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric AJ65BT-G4-S3?

The Mitsubishi Electric AJ65BT-G4-S3 is a bridge/repeater in the MELSEC network modules. RS-422 1 channel, peripheral device connection, manager station, reading/writing/monitoring/testing of local stations, number of occupied stations: 1 station. Mitsubishi Electric has discontinued it (2009/08 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC network modules
CategoryBridge/repeater
TypeOthers
SubtypePeripheral device connection
Sales status2009/08 Discontinued (Mitsubishi Electric)
OutlineRS-422 1 channel, peripheral device connection, manager station, reading/writing/monitoring/testing of local stations, number of occupied stations: 1 station

Specifications

RS-422 interfaceFor connection of peripheral device, 1 channel
Station typeIntelligent device station (Ver. 1 intelligent device station)
Number of occupied stations1 station
Dielectric withstand voltageBetween all DC external terminals and ground: 500 V AC for 1 minute
Insulation resistanceBetween all DC external terminals and ground: 10 MΩ or higher by 500 V DC insulation resistance tester
Module power supply: Voltage24 V DC (15.6...28.8 V DC)
Module power supply: Current0.19 A
Module power supply: Allowable momentary power failure time1 ms
External interfaceCommunication part, module power supply part: 7-point two-piece terminal block (M3.5 screw) RS-422 part: 25-pin D-sub (female) screw type
Communication cableVer.1.10 compatible CC-Link dedicated cable CC-Link dedicated cable (Ver.1.00 compatible) CC-Link dedicated high-performance cable (Ver.1.00 compatible)
External dimensions: Height80 mm
External dimensions: Width170 mm
External dimensions: Depth63.5 mm
Weight0.36 kg

Specifications

Operating ambient temperature0...55 ˚C
Storage ambient temperature-20...75 ˚C
Operating ambient humidity10...90 %RH, non-condensing
Storage ambient humidity10...90 %RH, non-condensing
Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under intermittent vibrationFrequency: 10...57 Hz, Amplitude: 0.075 mm Frequency: 57...150 Hz, Acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, Z directions
Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under continuous vibrationFrequency: 10...57 Hz, Amplitude: 0.035 mm Frequency: 57...150 Hz, Acceleration: 4.9 m/s 2
Shock resistanceCompliant with JIS B 3502 and IEC 61131-2 (147 m/s 2 , 3 times each in 3 directions X, Y, Z)
Operating atmosphereNo corrosive gases
Operating altitude0...2000 m
Installation locationInside a control panel
Overvoltage categoryII or less
Pollution degree2 or less

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

AJ65BT-G4-S3: frequently asked questions

Can I still buy the AJ65BT-G4-S3 now that it is discontinued?

Yes. Mitsubishi Electric (Factory Automation) has discontinued the AJ65BT-G4-S3, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can AJ65BT-G4-S3 be shipped?

AJ65BT-G4-S3 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up AJ65BT-G4-S3 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for AJ65BT-G4-S3 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for AJ65BT-G4-S3, subject to availability and destination.
