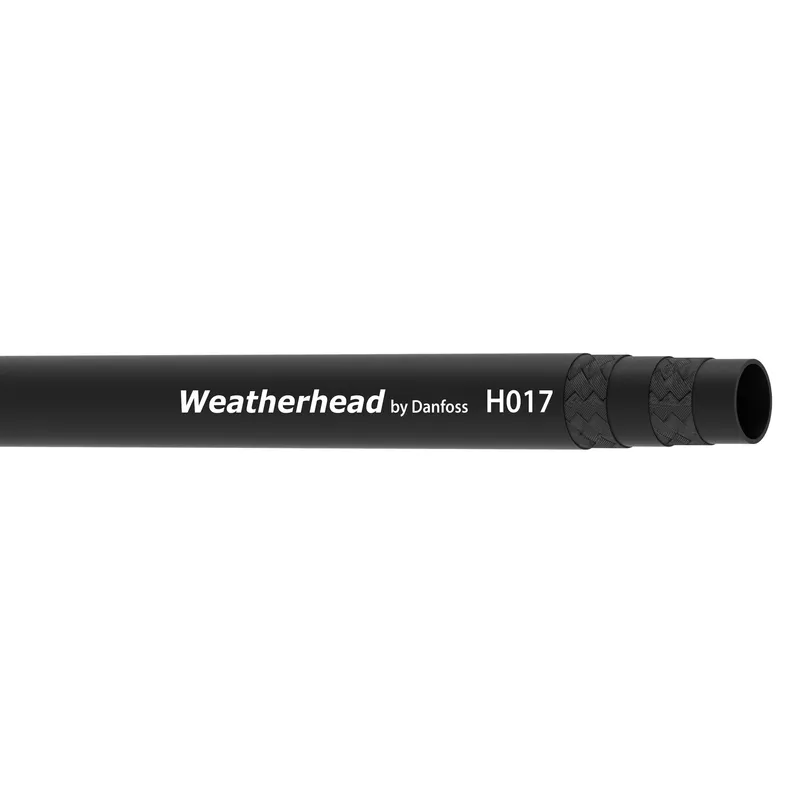

Danfoss H01712

HOSE-WTH, H017, -12, R3

MPN
H01712
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss H01712?

Danfoss HOSE-WTH, H017, -12, R3, manufacturer part number H01712. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

EAN/UPC725975009963
Abrasion resistanceStandard
ApplicationOil return line
Bend radius min (inch)5.910
Bend radius min (mm)150.000
BrandWeatherhead by Danfoss
Burst pressure (bar)208
Burst pressure (psi)3000
CertificationsUSCG
ColorBlack
CompliancesSAE J1942
ConductivityConductive
Construction2 Ply braid
Cover materialChloroprene (CR)
Impulse cycle (cycles)200000
Inside diameter (inch)0.75
Inside diameter (mm)19.00
Lay line styleInk jet
Outside diameter (inch)1.25
Outside diameter (mm)31.75
Package formBulk
Product height in0.750
Product height mm19.000
Product width in0.750
Product width mm19
Qualified hose fittings4SA
Reinforcement materialFabric
SeriesH0171 Series
Size-12
Tube materialNitrile (NBR)
Working pressure max (bar)52
Working pressure max (psi)750
Working temperature max (C)100
Working temperature max (F)212.0
Working temperature min (C)-40
Working temperature min (F)-40.0

H01712: frequently asked questions

When can H01712 be shipped?

H01712 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up H01712 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for H01712 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for H01712, subject to availability and destination.
