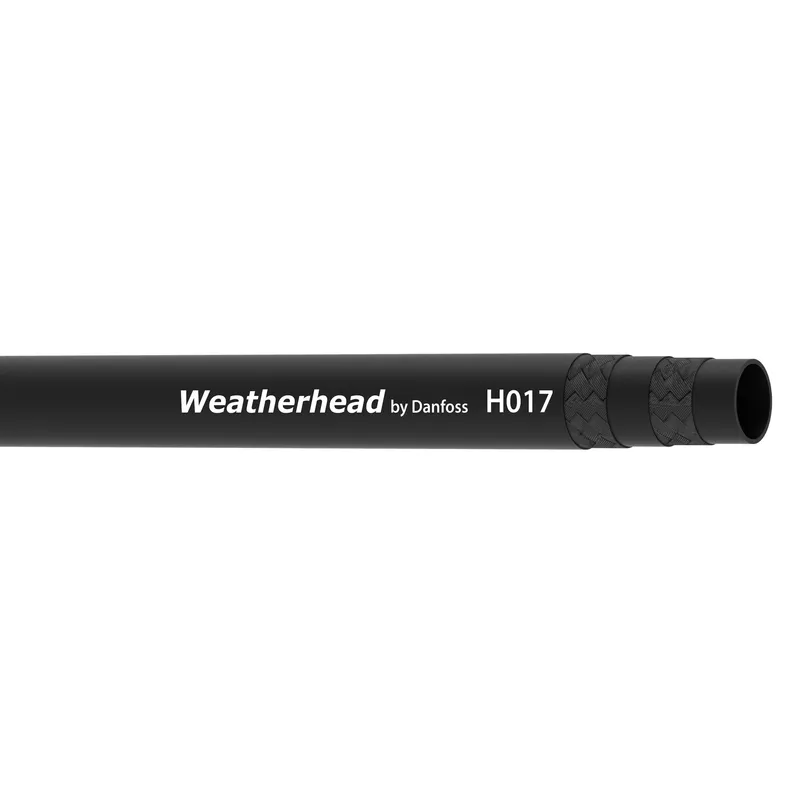

What is the Danfoss H01708-250R?

Danfoss HOSE-WTH, H017, -8, 250FT, RL, R3, manufacturer part number H01708-250R. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

EAN/UPC725975009956
Abrasion resistanceStandard
ApplicationOil return line
Bend radius min (inch)4.920
Bend radius min (mm)125.000
BrandWeatherhead by Danfoss
Burst pressure (bar)280
Burst pressure (psi)4000
CertificationsUSCG
ColorBlack
CompliancesSAE J1942
ConductivityConductive
Construction2 Ply braid
Cover materialChloroprene (CR)
Impulse cycle (cycles)200000
Inside diameter (inch)0.50
Inside diameter (mm)12.70
Lay line styleInk jet
Length (in)3000.00000
Length (mm)76200.00000
Outside diameter (inch)0.93
Outside diameter (mm)23.62
Package formReel
Product height in0.500
Product height mm12.700
Product width in0.500
Product width mm12.7
Qualified hose fittings4SA
Reinforcement materialFabric
SeriesH0170 Series
Size-8
Tube materialNitrile (NBR)
Working pressure max (bar)70
Working pressure max (psi)1000
Working temperature max (C)100
Working temperature max (F)212.0
Working temperature min (C)-40
Working temperature min (F)-40.0
