Danfoss H01716-250R

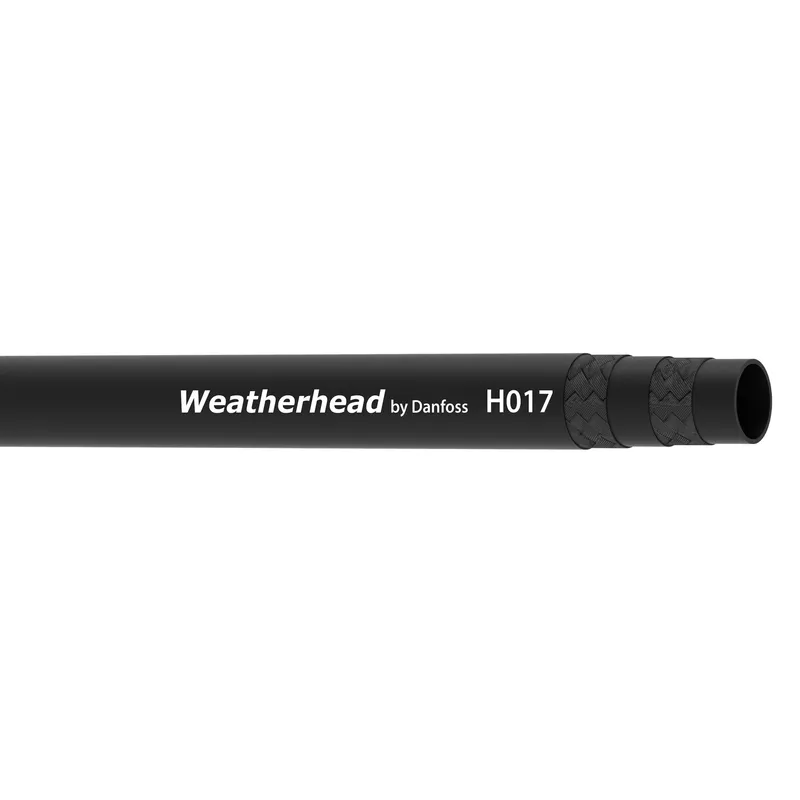

HOSE-WTH, H017, -16, 250FT, RL, R3

MPN
H01716-250R
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss H01716-250R?

Danfoss HOSE-WTH, H017, -16, 250FT, RL, R3, manufacturer part number H01716-250R. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

EAN/UPC725975009994
Abrasion resistanceStandard
ApplicationOil return line
Bend radius min (inch)5.910
Bend radius min (mm)150.000
BrandWeatherhead by Danfoss
Burst pressure (bar)208
Burst pressure (psi)3000
CertificationsUSCG
ColorBlack
CompliancesSAE J1942
ConductivityConductive
Construction2 Ply braid
Cover materialChloroprene (CR)
Impulse cycle (cycles)200000
Inside diameter (inch)1.00
Inside diameter (mm)25.40
Lay line styleInk jet
Length (in)3000.00000
Length (mm)76200.00000
Outside diameter (inch)1.50
Outside diameter (mm)38.10
Package formReel
Product height in1.000
Product height mm25.400
Product width in1.000
Product width mm25.4
Qualified hose fittings4SA
Reinforcement materialFabric
SeriesH017 Series
Size-16
Tube materialNitrile (NBR)
Working pressure max (bar)52
Working pressure max (psi)750
Working temperature max (C)100
Working temperature max (F)212.0
Working temperature min (C)-40
Working temperature min (F)-40.0
