Danfoss H01716

Bulk Hose Fiber Reinforc

MPN
H01716
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

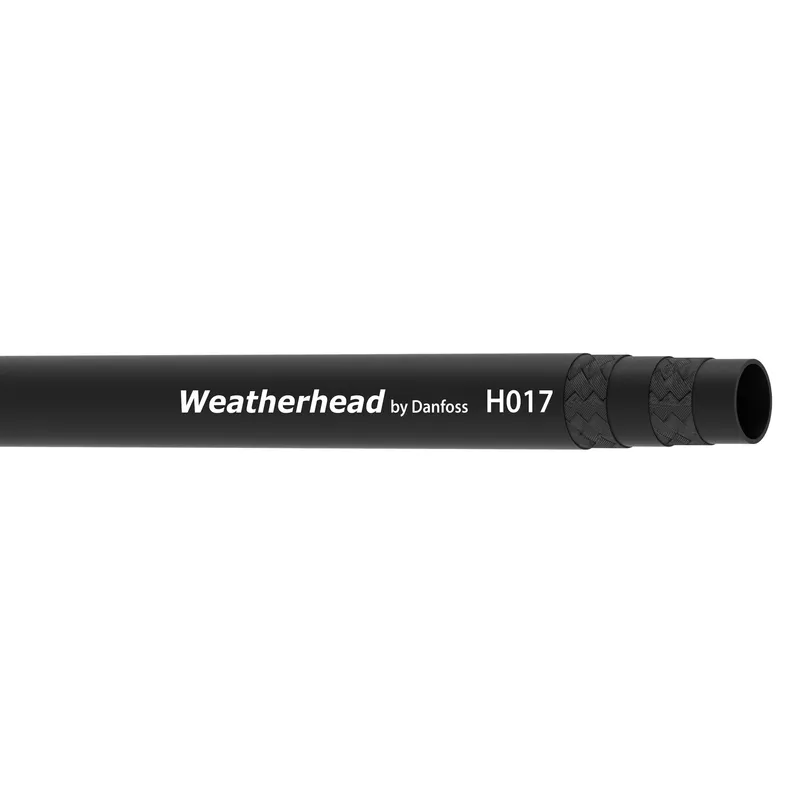

What is the Danfoss H01716?

Danfoss Bulk Hose Fiber Reinforc - -, manufacturer part number H01716. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

EAN/UPC725975009987
Abrasion resistanceStandard
ApplicationOil return line
Bend radius min (inch)8.070
Bend radius min (mm)205.000
BrandWeatherhead by Danfoss
Burst pressure (bar)156
Burst pressure (psi)2260
CertificationsUSCG
ColorBlack
CompliancesSAE J1942
ConductivityConductive
Construction2 Ply braid
Cover materialChloroprene (CR)
Impulse cycle (cycles)200000
Inside diameter (inch)1.00
Inside diameter (mm)25.40
Lay line styleInk jet
Outside diameter (inch)1.50
Outside diameter (mm)38.10
Package formBulk
Product height in1.000
Product height mm25.400
Product width in1.000
Product width mm25.4
Qualified hose fittings4SA
Reinforcement materialFabric
SeriesH017 Series
Size-16
Tube materialNitrile (NBR)
Working pressure max (bar)39
Working pressure max (psi)565
Working temperature max (C)100
Working temperature max (F)212.0
Working temperature min (C)-40
Working temperature min (F)-40.0

H01716: frequently asked questions

When can H01716 be shipped?

H01716 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up H01716 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for H01716 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for H01716, subject to availability and destination.
