What is the Danfoss H01706-250R?

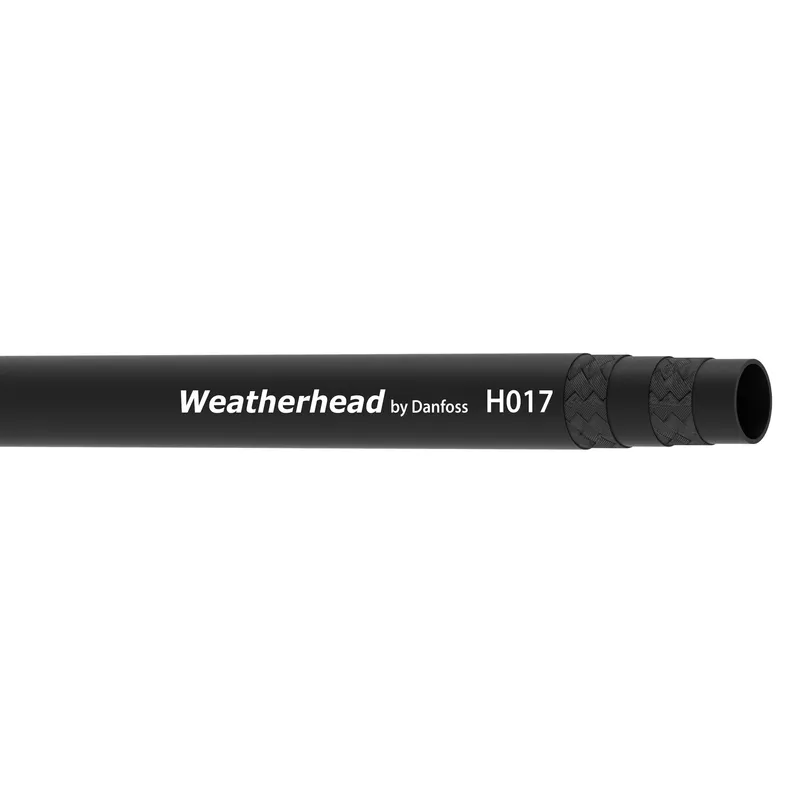

Danfoss HOSE-WTH, H017, -6, 250FT, RL, R3, manufacturer part number H01706-250R. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

EAN/UPC725975009932
Abrasion resistanceStandard
ApplicationOil return line
Bend radius min (inch)3.940
Bend radius min (mm)100.000
BrandWeatherhead by Danfoss
Burst pressure (bar)312
Burst pressure (psi)4500
CertificationsUSCG
ColorBlack
CompliancesSAE J1942
ConductivityConductive
Construction2 Ply braid
Cover materialChloroprene (CR)
Impulse cycle (cycles)200000
Inside diameter (inch)0.38
Inside diameter (mm)9.50
Lay line styleInk jet
Length (in)3000.00000
Length (mm)76200.00000
Outside diameter (inch)0.76
Outside diameter (mm)19.30
Package formReel
Product height in0.380
Product height mm9.500
Product width in0.380
Product width mm9.5
Qualified hose fittings4SA
Reinforcement materialFabric
SeriesH0170 Series
Size-6
Tube materialNitrile (NBR)
Working pressure max (bar)78
Working pressure max (psi)1125
Working temperature max (C)100
Working temperature max (F)212.0
Working temperature min (C)-40
Working temperature min (F)-40.0
