Danfoss 4T12EK8

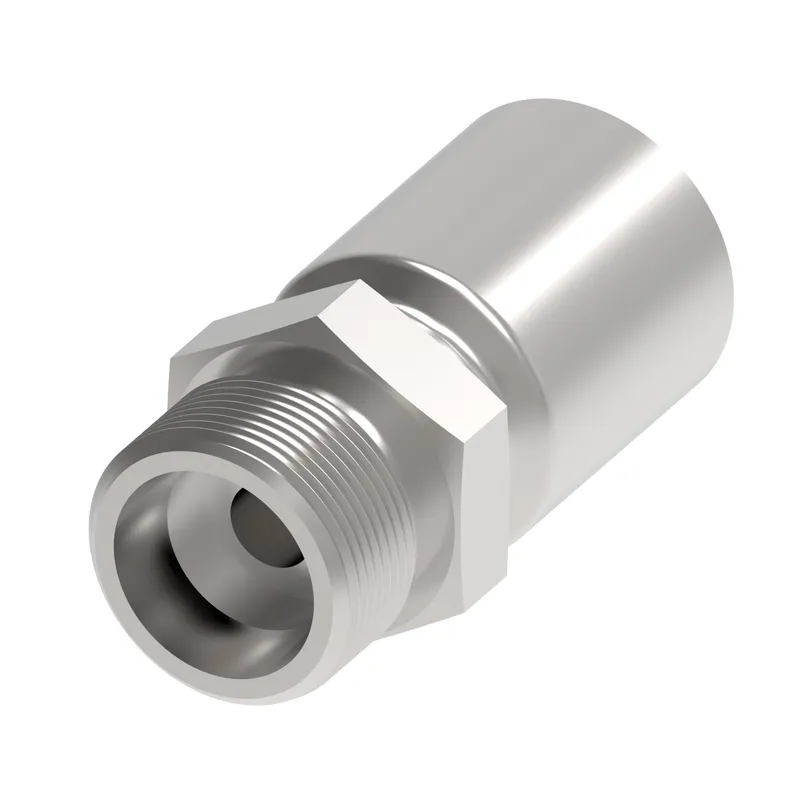

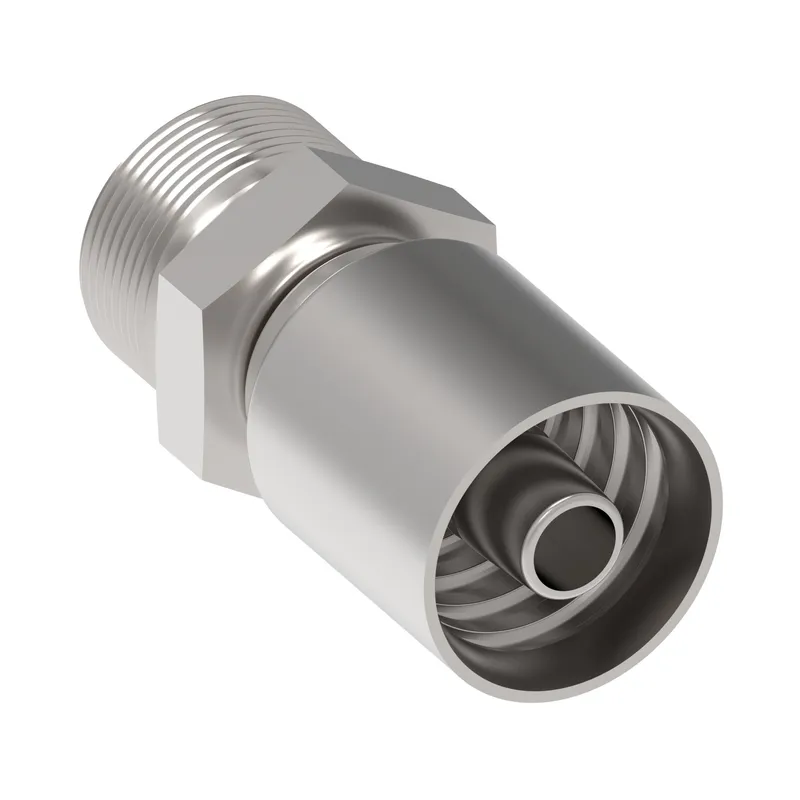

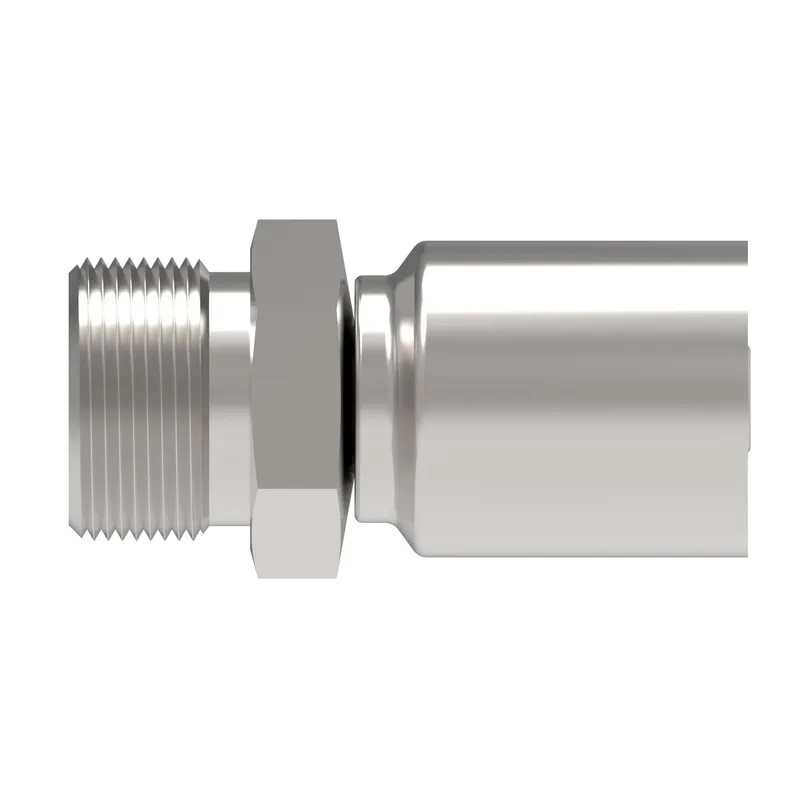

HOSE FTG, 4T/08, DKH-M/12, CS, STR

MPN: 4T12EK8
Category: Thermoplastic hydraulic hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 4T12EK8?

Danfoss HOSE FTG, 4T/08, DKH-M/12, CS, STR, manufacturer part number 4T12EK8. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.280
A dimension MM	58.000
Angle shape	Straight
Compatible hose ID IN	0.500
Compatible hose ID MM	12.700
Construction Style	Crimp
End size 1	-12
End Type 1	24 deg. tube port heavy duty
Finish plating	Zinc plating
Hex size 1 IN	1.063
Hex size 1 MM	27.000
Hose cut off factor IN	1.110
Hose cut off factor MM	28.300
Hose size	-8
Inside diameter IN	0.3800
Inside diameter MM	9.6000
Product height in	1.063
Product height mm	27.000
Product length in	2.283
Product length mm	58.000
Product material	Carbon steel
Product width in	1.063
Product width mm	27
Thread sealant	No
Thread size 1	M24x1.5
Working pressure max BAR	400.00
Working pressure max PSI	5800.00
