Danfoss 24241-10-08H16TZF

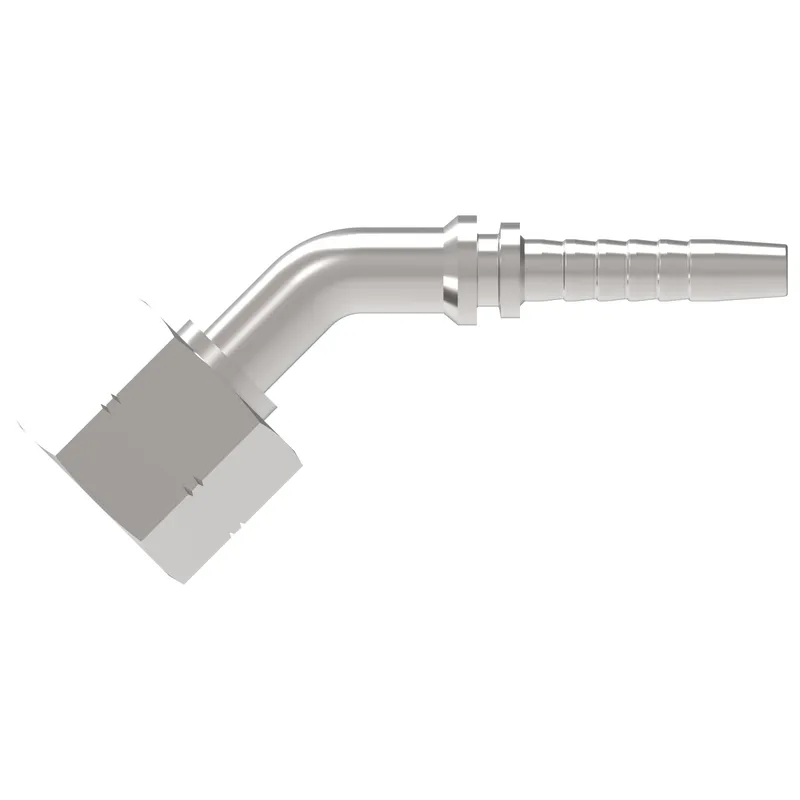

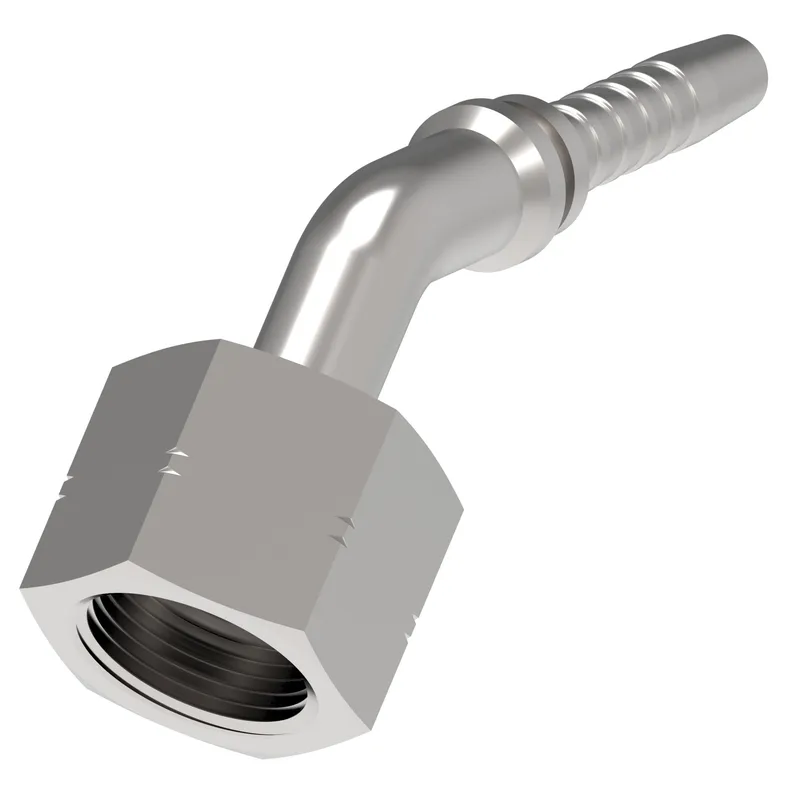

HOSE NIPPLE ASSY,2P/08,ORS-F/10,CS,45D

MPN
24241-10-08H16TZF
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 24241-10-08H16TZF?

Danfoss HOSE NIPPLE ASSY,2P/08,ORS-F/10,CS,45D, manufacturer part number 24241-10-08H16TZF. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN3.244
A dimension MM82.400
Angle shape45 Degree
Compatible hose ID IN0.500
Compatible hose ID MM12.700
Compatible hoses EC110, EC115, EC210, EC215
Construction StyleCrimp
Drop dimension IN0.620
Drop dimension MM16.00
End size 1-10
End Type 1Female ORFS swivel
Finish platingZinc plating
Hex size 1 IN1.188
Hex size 1 MM30.000
Hose cut off factor IN2.003
Hose cut off factor MM50.900
Hose size-8
Inside diameter IN0.390
Inside diameter MM10.000
Product height in1.516
Product height mm38.501
Product length in3.531
Product length mm89.700
Product materialCarbon steel
Product width in1.181
Product width mm30
Thread sealantNo
Thread size 11-14 UNS
Working pressure max BAR552
Working pressure max PSI8100
