Danfoss 24241-10-12Z

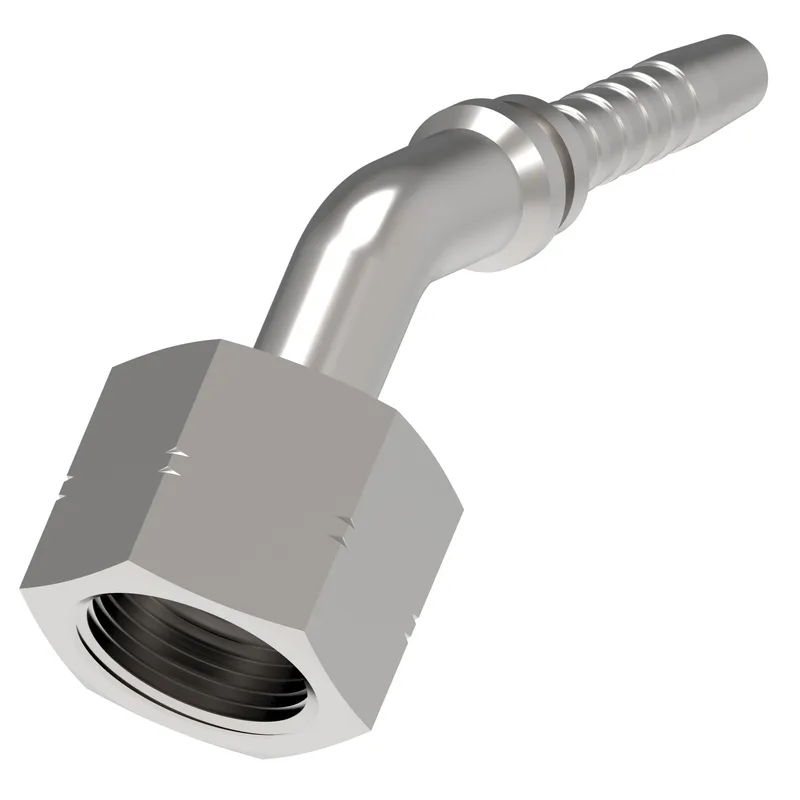

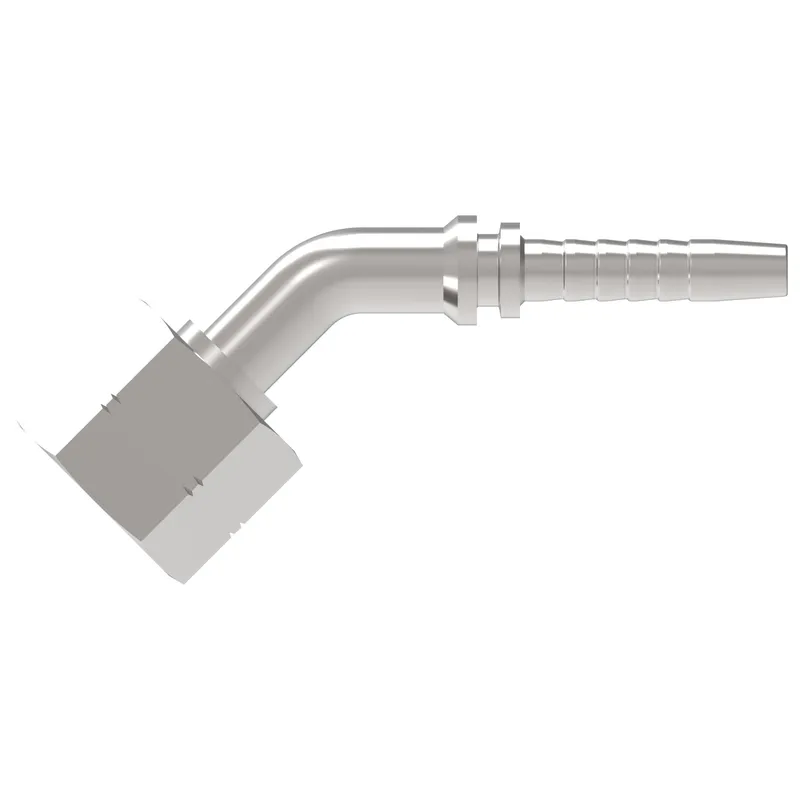

HOSE NIPPLE, 2P/12, ORS-F/10, CS, 45D

MPN
24241-10-12Z
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 24241-10-12Z?

Danfoss HOSE NIPPLE, 2P/12, ORS-F/10, CS, 45D, manufacturer part number 24241-10-12Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN4.890
A dimension MM124.400
Angle shape45 Degree
BrandWinner by Danfoss
Compatible hose ID IN0.750
Construction StyleCrimp
Drop dimension IN1.490
Drop dimension MM38.00
End size 1-10
End Type 1Female ORFS swivel
Finish platingZinc plating
Hose cut off factor IN3.381
Hose cut off factor MM85.900
Inside diameter IN0.590
Inside diameter MM15.000
Product height in3.210
Product height mm81.534
Product length in6.091
Product length mm154.711
Product materialCarbon steel
Product width in1.181
Product width mm29.997
Proposition 65Cancer and Reproductive Harm
Thread sealantNo
Working pressure max BAR552
Working pressure max PSI8100
