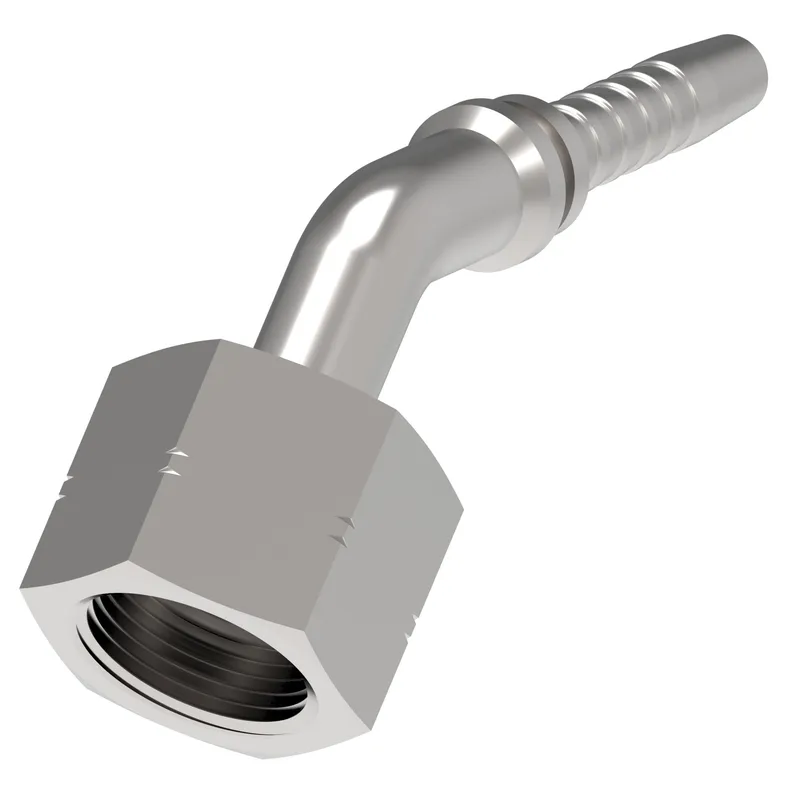

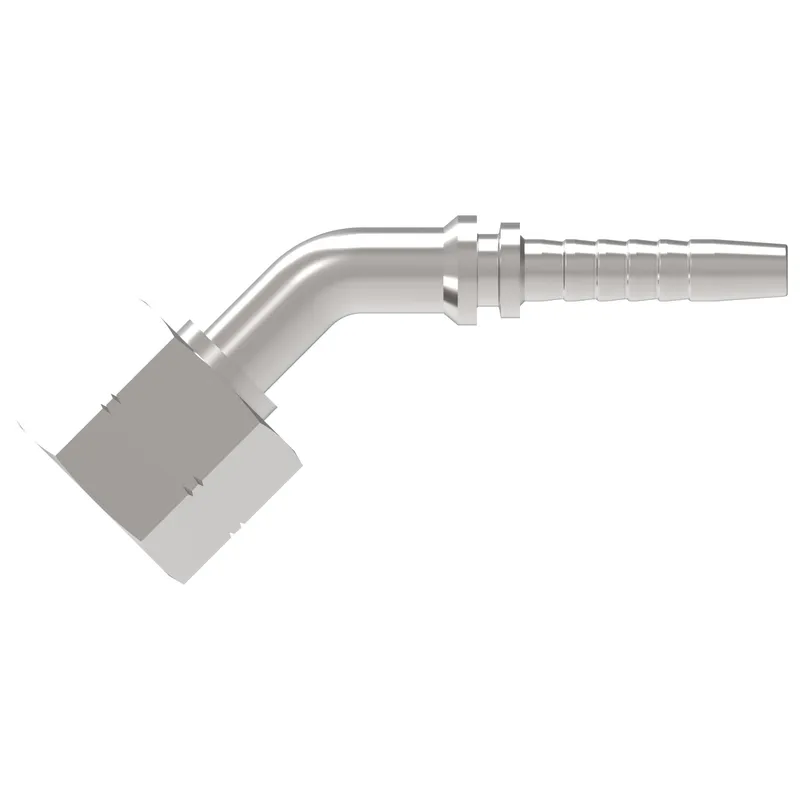

What is the Danfoss 24241-08-08H19Z?

Danfoss HOSE NIPPLE, 2P/08, ORS-F/08, CS, 45D, manufacturer part number 24241-08-08H19Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN3.280
A dimension MM83.400
Angle shape45 Degree
BrandWinner by Danfoss
Compatible hose ID IN0.500
Compatible hose ID MM12.700
Compatible hoses EC110, EC210, FC686, FC687, GH663, GH781, GH793
Construction StyleCrimp
Drop dimension IN0.740
Drop dimension MM18.90
End size 1-8
End Type 1Female ORFS swivel
Finish platingZinc plating
Hex size 2 IN0.940
Hex size 2 MM23.876
Hose cut off factor IN2.043
Hose cut off factor MM51.900
Hose size-8
Inside diameter IN0.390
Inside diameter MM10.000
Product height in1.653
Product height mm41.986
Product length in4.188
Product length mm106.375
Product materialCarbon steel
Product width in0.944
Product width mm23.978
Thread sealantNo
Working pressure max BAR552
Working pressure max PSI8100
