Danfoss 24241-08-08H15ZF

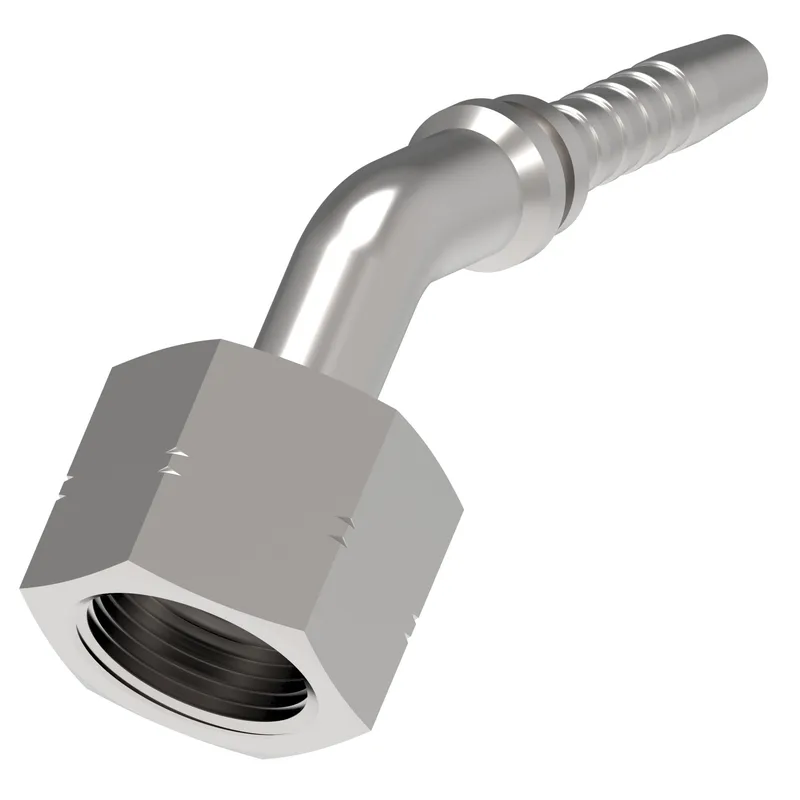

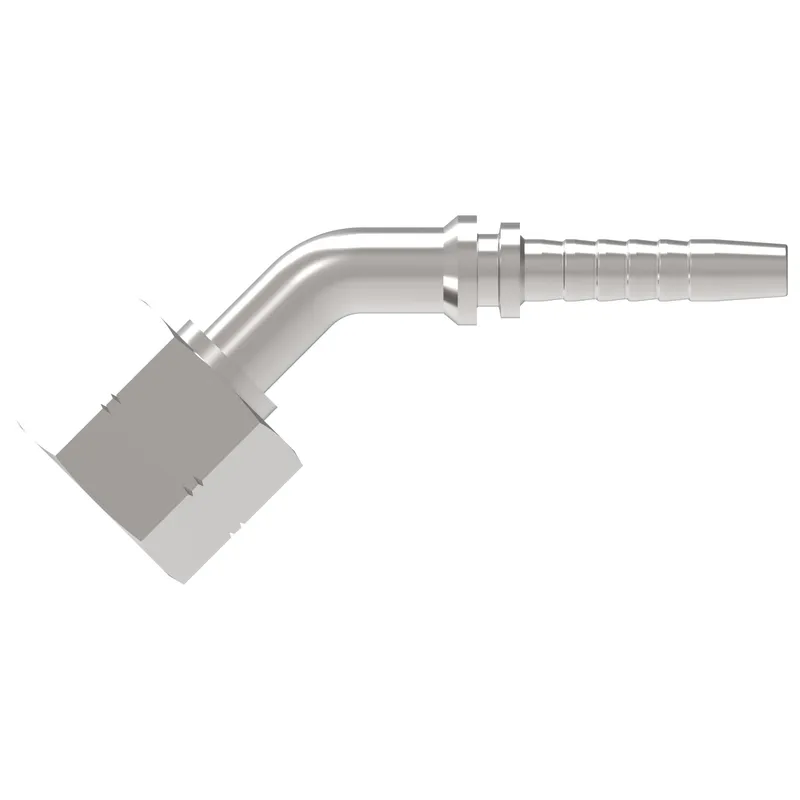

HOSE NIPPLE ASSY,2P/08,ORS-F/08,CS,45D

MPN
24241-08-08H15ZF
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 24241-08-08H15ZF?

Danfoss HOSE NIPPLE ASSY,2P/08,ORS-F/08,CS,45D, manufacturer part number 24241-08-08H15ZF. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

EAN/UPC678146192004
A dimension IN3.190
A dimension MM80.900
Angle shape45 Degree
Compatible hose ID IN0.500
Construction StyleCrimp
Drop dimension IN0.590
Drop dimension MM15.00
End size 1-8
End Type 1Female ORFS swivel
Finish platingZinc plating
Hex size 1 IN0.944
Hex size 1 MM24.000
Hose cut off factor IN1.940
Hose cut off factor MM49.400
Inside diameter IN0.390
Inside diameter MM9.900
Product height in2.134
Product height mm54.201
Product length in3.827
Product length mm97.201
Product materialCarbon steel
Product width in1.063
Product width mm27
Thread sealantNo
Thread size 113/16-16 UN
Working pressure max BAR552
Working pressure max PSI8100
