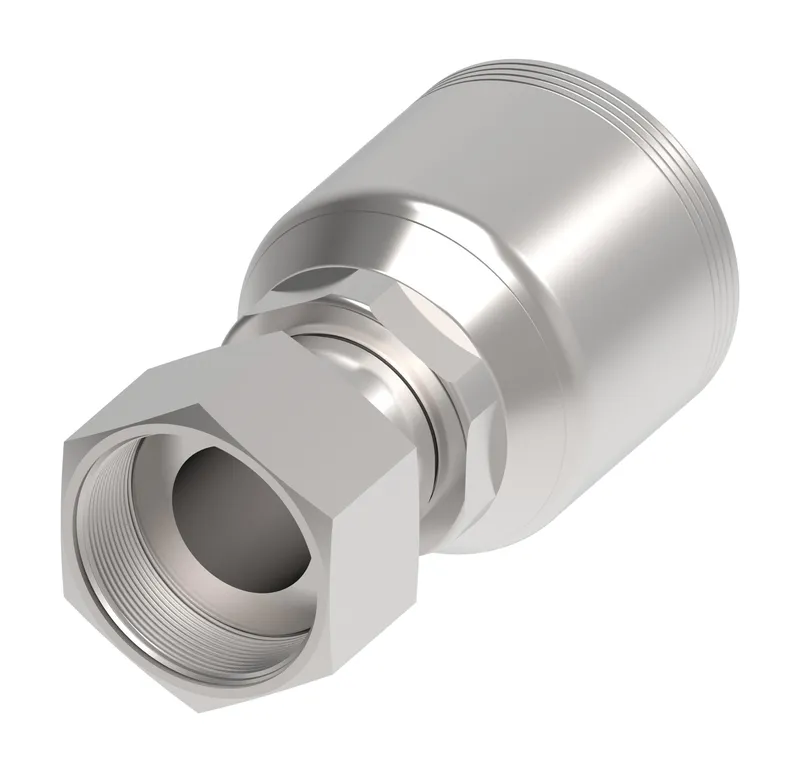

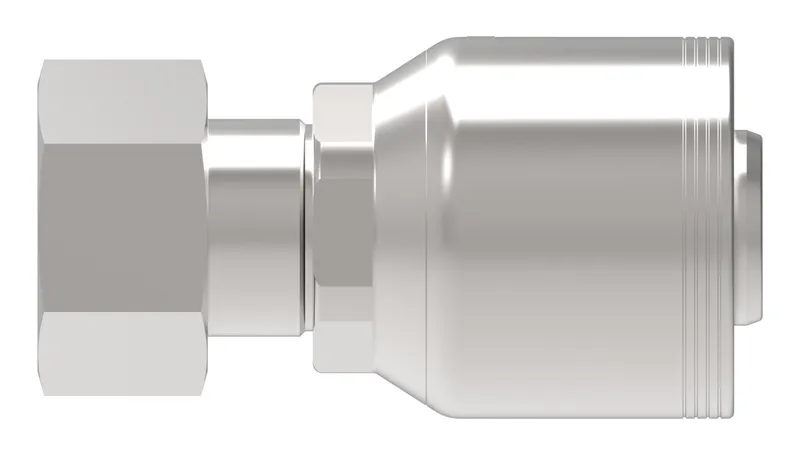

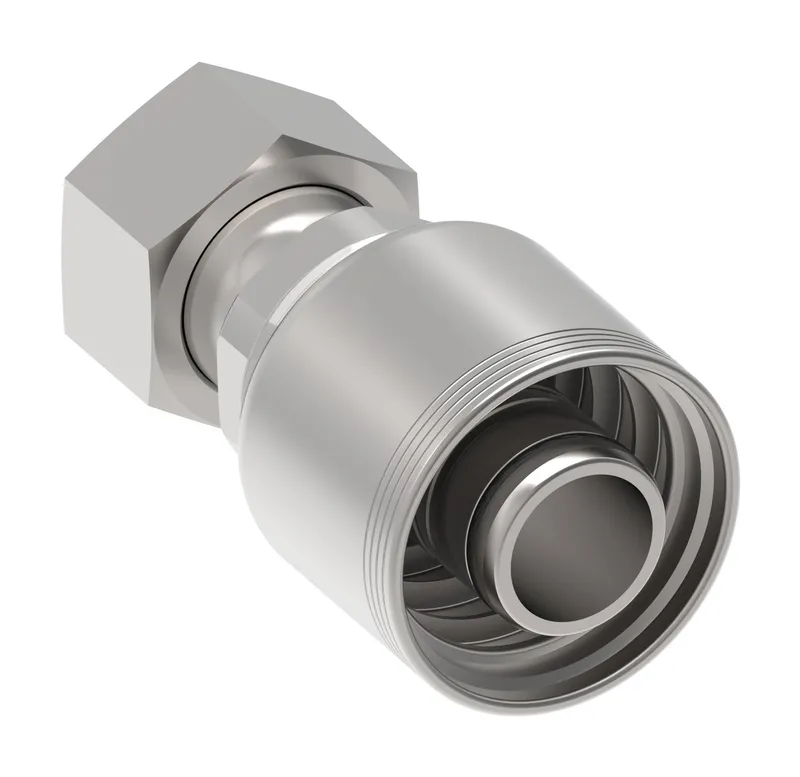

Danfoss 1EA16FR12

HOSE FTG, 1A/12, ORS-F/16, CS, STR

MPN
1EA16FR12
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1EA16FR12?

Danfoss HOSE FTG, 1A/12, ORS-F/16, CS, STR, manufacturer part number 1EA16FR12. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

EAN/UPC678146132550
A dimension IN3.120
A dimension MM79.200
Angle shapeStraight
Compatible hose ID IN0.750
Compatible hose ID MM19.000
Compatible hosesFC273, FC273B, FC500, GH810, FC254, GH506
Compatible tube OD IN0.75
Compatible tube OD MM19.050
Construction StyleCrimp
End connection torque92-100 lb-ft(125-136 Nm)
End size 1-16
End type 1Female ORFS swivel
Finish platingDura-Kote
Hex size 2 MM30.000
Hose cut off factor IN1.700
Hose cut off factor MM43.100
Hose size-12
Inside diameter IN0.560
Inside diameter MM14.200
Product height in1.779
Product height mm45.187
Product length in3.330
Product length mm84.582
Product materialCarbon steel
Product width in1.779
Product width mm45.187 mm
Seal materialEthylene propylene (EPDM)
Series1A/Z Series
Thread sealantNo
Thread size 11 7/16-12 UN
Tube OD 1 IN0.750
Tube OD 1 MM19.050
Working pressure max BAR414
Working pressure max PSI6000
Working temperature max C121
Working temperature max F250
Working temperature min C-40
Working temperature min F-40

1EA16FR12: frequently asked questions

When can 1EA16FR12 be shipped?

1EA16FR12 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1EA16FR12 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1EA16FR12 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1EA16FR12, subject to availability and destination.
