Danfoss 1EA16FRB16

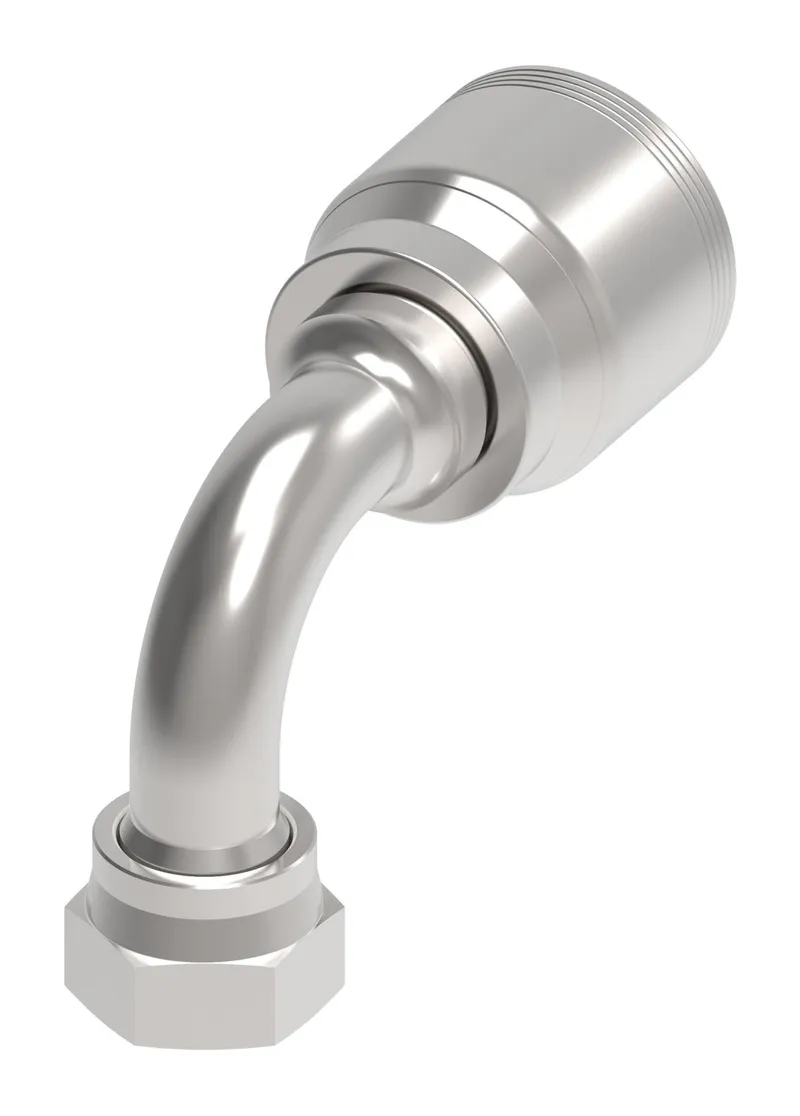

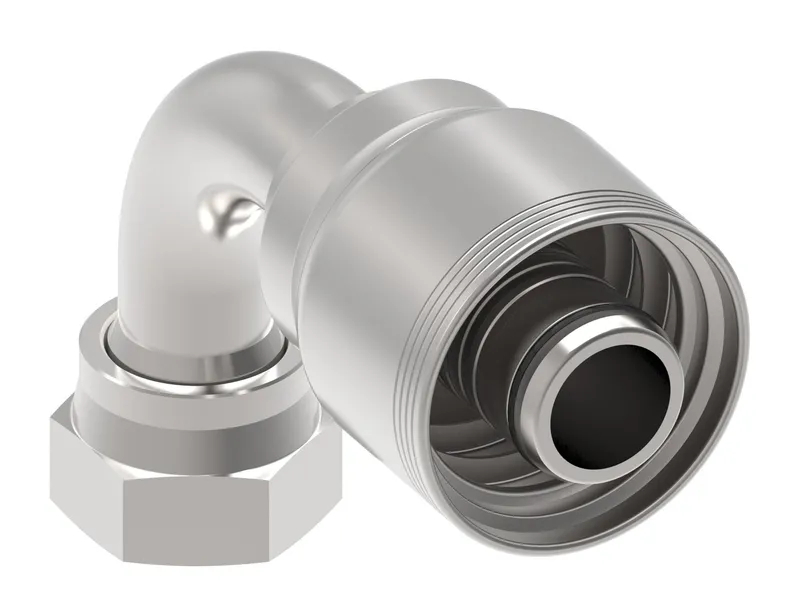

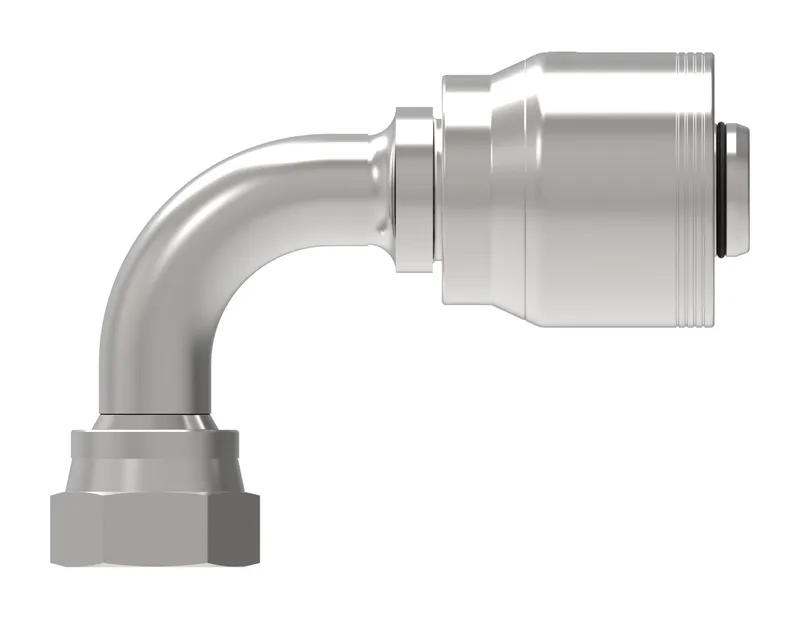

HOSE FTG, 1A/16, ORS-F/16, CS, 90D

MPN
1EA16FRB16
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1EA16FRB16?

Danfoss HOSE FTG, 1A/16, ORS-F/16, CS, 90D, manufacturer part number 1EA16FRB16. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

EAN/UPC678146132604
A dimension IN4.440
A dimension MM112.800
Angle shape90 Degree
BrandAeroquip by Danfoss
Compatible hose ID IN1.000
Compatible hose ID MM25.400
Compatible hosesFC273, FC273B, FC500, GH810, FC254, GH506
Compatible tube OD IN1.00
Compatible tube OD MM25.400
Construction StyleCrimp
Drop dimension IN2.800
Drop dimension MM71.00
End connection torque92-100 lb-ft(125-136 Nm)
End size 1-16
End size 2-16
End type 1Female ORFS swivel
Finish platingDura-Kote
Hex size 1 IN1.625
Hex size 1 MM41.000
Hex size 2 IN0.000
Hose cut off factor IN2.870
Hose cut off factor MM73.000
Hose size-16
Inside diameter IN0.760
Inside diameter MM19.200
Product height in2.800
Product height mm71.120
Product length in5.930
Product length mm150.622
Product materialCarbon steel
Product width in2.126
Product width mm54.000 mm
Seal materialEthylene propylene (EPDM)
Series1A/Z Series
Thread sealantNo
Thread size 11 7/16-12 UN
Tube OD 1 IN1.000
Tube OD 1 MM25.400
Working pressure max BAR414
Working pressure max PSI6000
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40

1EA16FRB16: frequently asked questions

When can 1EA16FRB16 be shipped?

1EA16FRB16 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1EA16FRB16 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1EA16FRB16 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1EA16FRB16, subject to availability and destination.
