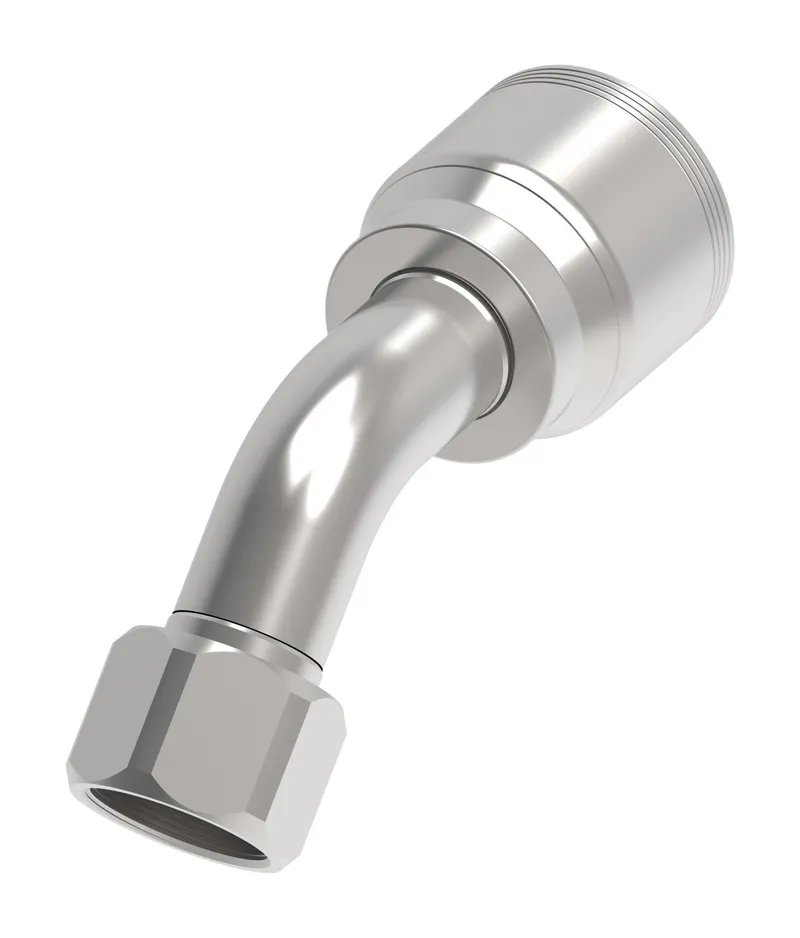

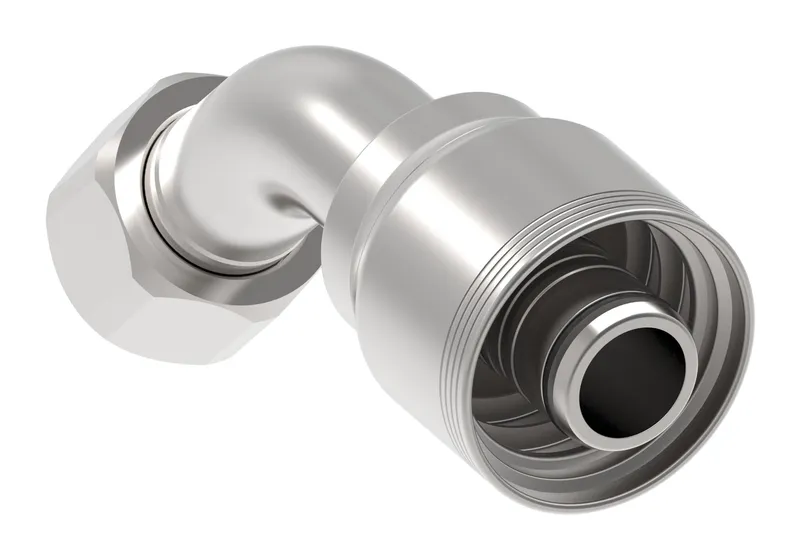

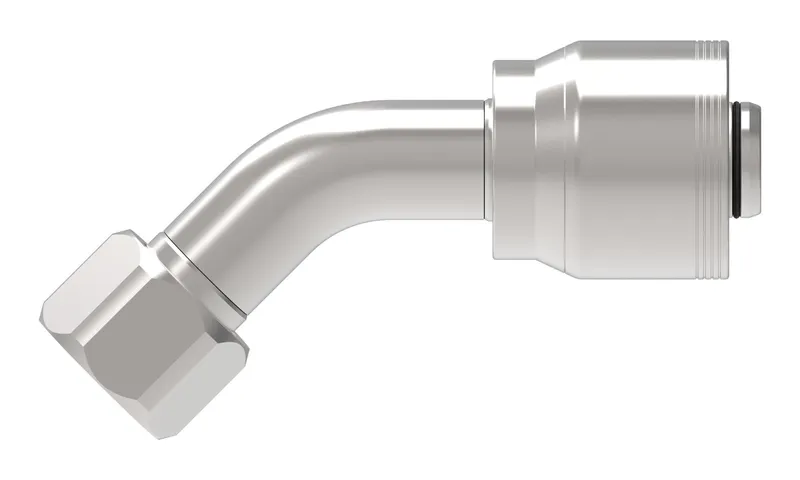

Danfoss 1EA16FJA12

HOSE FTG, 1A/12, JIC-F/16, CS, 45D

MPN
1EA16FJA12
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1EA16FJA12?

Danfoss HOSE FTG, 1A/12, JIC-F/16, CS, 45D, manufacturer part number 1EA16FJA12. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

EAN/UPC678146132512
A dimension IN5.260
A dimension MM133.600
Angle shape45 Degree
Compatible hose ID IN0.750
Compatible hose ID MM19.000
Compatible hosesFC273, FC273B, FC500, GH810, FC254, GH506
Construction StyleCrimp
Drop dimension IN1.500
Drop dimension MM38.00
End connection torque108-113 lb-ft(148-154 Nm)
End size 1-16
End type 1Female 37 degree swivel
Finish platingDura-Kote
Hex size 1 IN1.496
Hex size 1 MM38.000
Hex size 2 IN0.000
Hose cut off factor IN3.840
Hose cut off factor MM97.500
Hose size-12
Inside diameter IN0.560
Inside diameter MM14.200
Product height in1.500
Product height mm38.000
Product length in5.260
Product length mm133.600
Product materialCarbon steel
Product width in1.836
Product width mm46.640 mm
Seal materialEthylene propylene (EPDM)
Series1A/Z Series
Thread sealantNo
Thread size 11 5/16-12 UN
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40

1EA16FJA12: frequently asked questions

When can 1EA16FJA12 be shipped?

1EA16FJA12 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1EA16FJA12 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1EA16FJA12 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1EA16FJA12, subject to availability and destination.
