Danfoss 1EA16MP16

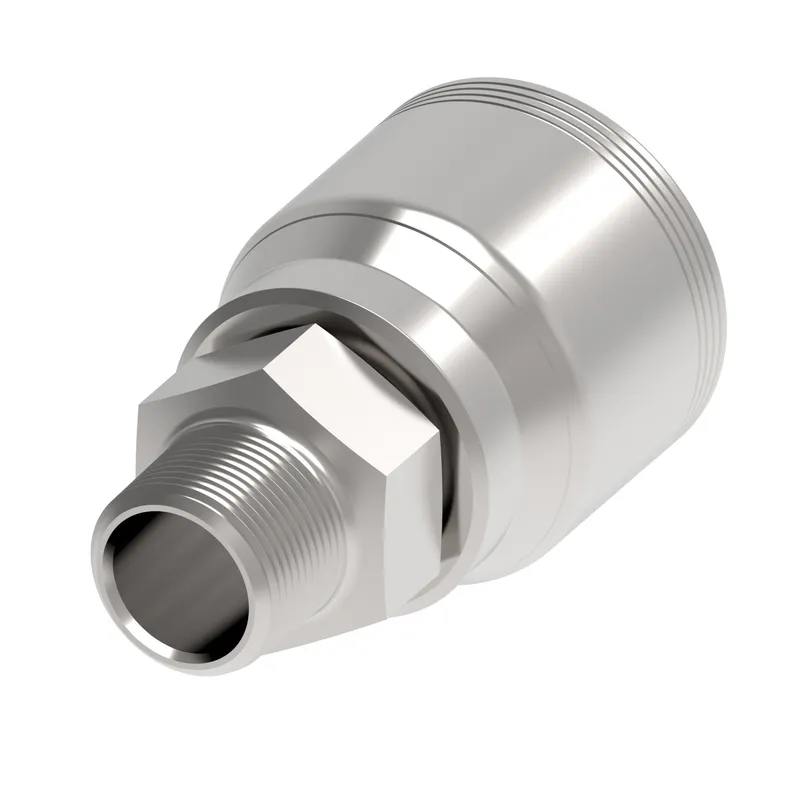

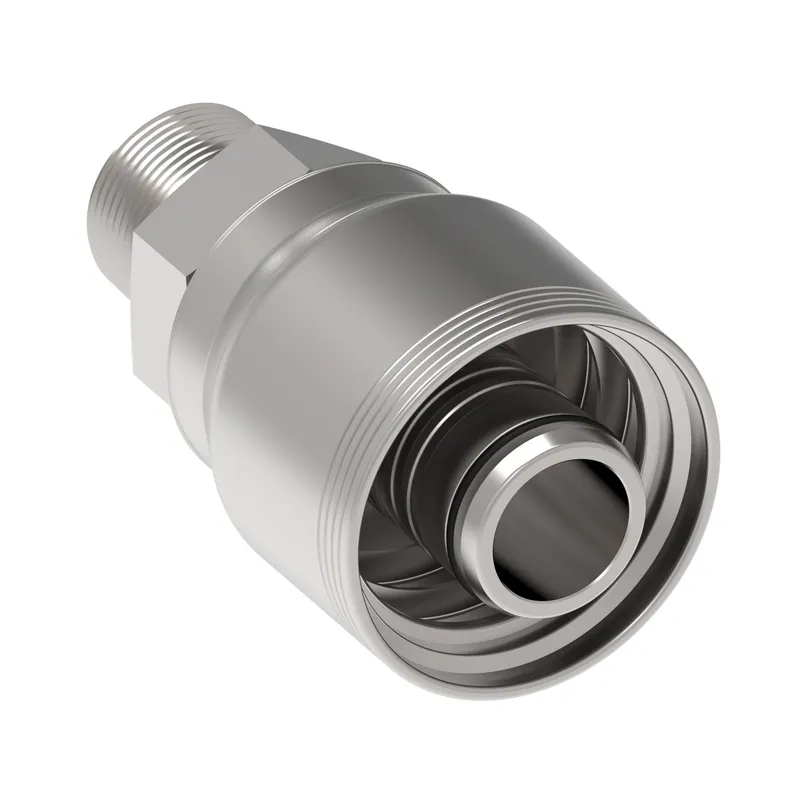

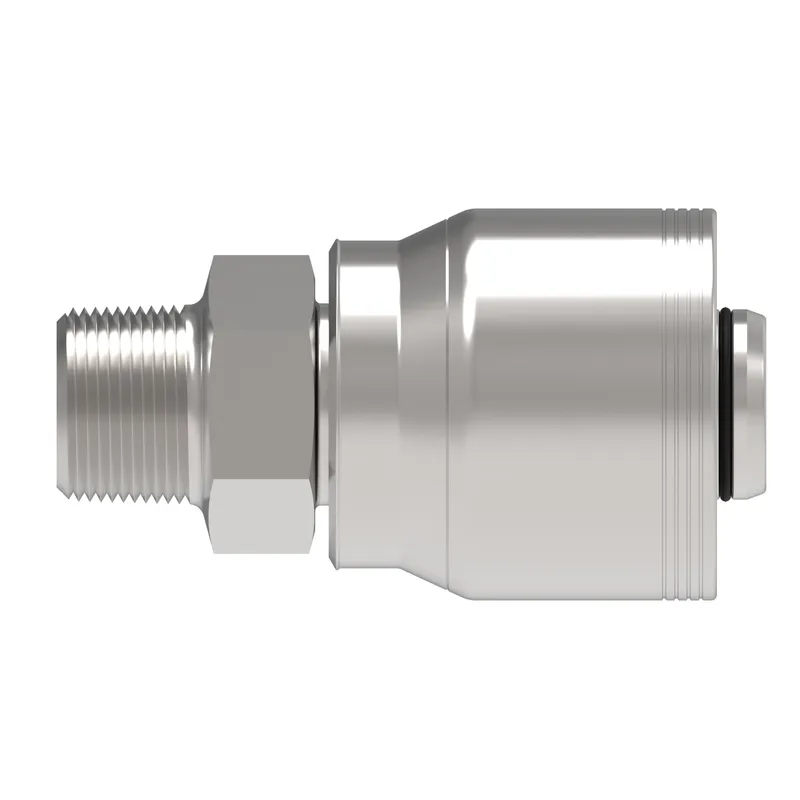

HOSE FTG, 1A/16, NPTF-M/16, CS, STR

MPN: 1EA16MP16
Category: Spiral hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1EA16MP16?

Danfoss HOSE FTG, 1A/16, NPTF-M/16, CS, STR, manufacturer part number 1EA16MP16. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146132611
A dimension IN	3.700
A dimension MM	94.000
Angle shape	Straight
Compatible hose ID IN	1.000
Compatible hose ID MM	25.400
Compatible hoses	FC273, FC273B, FC500, GH810, FC254, GH506
Construction Style	Crimp
End size 1	-16
End size 2	-16
End type 1	Male pipe (NPTF)
Finish plating	Dura-Kote
Hex size 1 IN	1.500
Hex size 1 MM	38.100
Hose cut off factor IN	2.130
Hose cut off factor MM	54.100
Hose size	-16
Inside diameter IN	0.750
Inside diameter MM	19.200
Product height in	2.126
Product height mm	54.000
Product length in	4.940
Product length mm	125.476
Product material	Carbon steel
Product width in	2.126
Product width mm	54.000 mm
Seal material	Ethylene propylene (EPDM)
Series	1A/Z Series
Thread sealant	No
Working pressure max BAR	276
Working pressure max PSI	4000
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
