Danfoss 1EA16FRA16

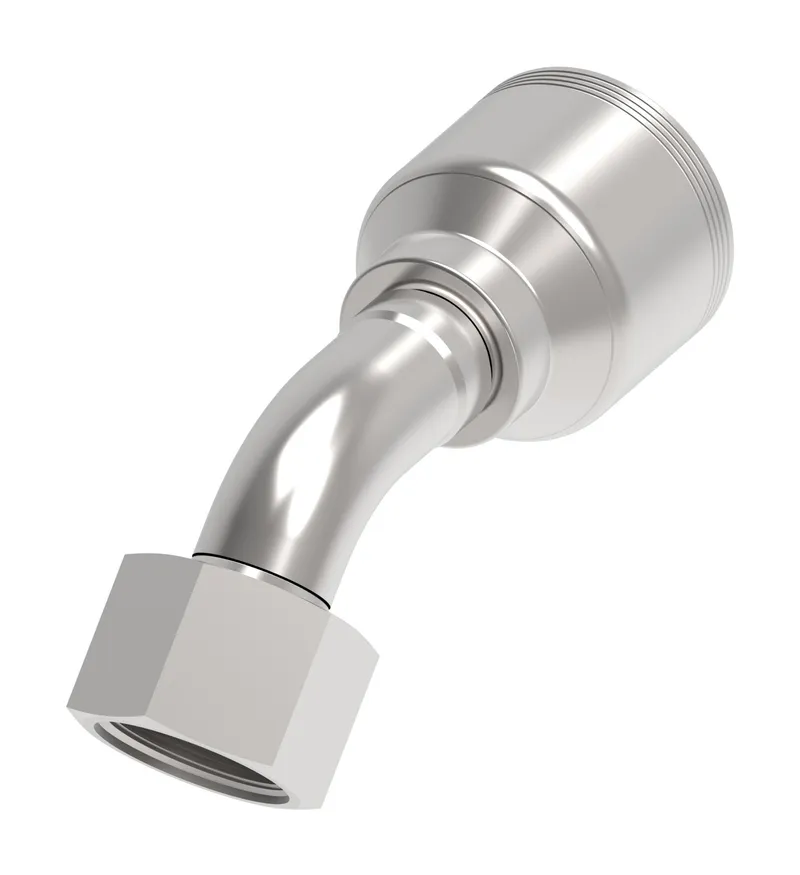

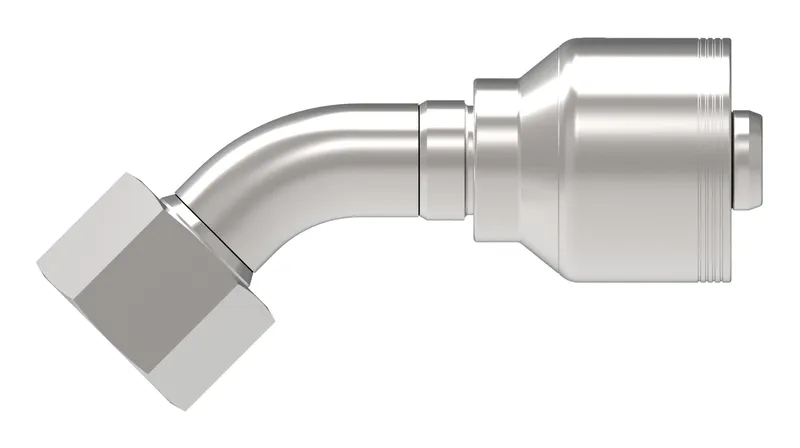

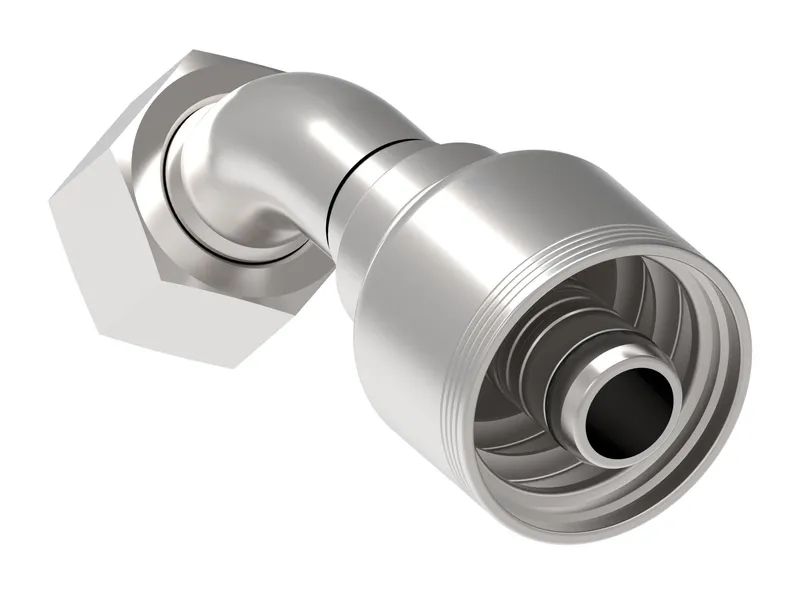

HOSE FTG, 1A/16, ORS-F/16, CS, 45D

MPN: 1EA16FRA16
Category: Spiral hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1EA16FRA16?

Danfoss HOSE FTG, 1A/16, ORS-F/16, CS, 45D, manufacturer part number 1EA16FRA16. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146132581
A dimension IN	4.440
A dimension MM	112.800
Angle shape	45 Degree
Brand	Aeroquip by Danfoss
Compatible hose ID IN	1.000
Compatible hose ID MM	25.400
Compatible hoses	FC273, FC273B, FC500, GH810, FC254, GH506
Compatible tube OD IN	1.00
Compatible tube OD MM	25.400
Construction Style	Crimp
Drop dimension IN	1.100
Drop dimension MM	28.00
End connection torque	92-100 lb-ft(125-136 Nm)
End size 1	-16
End size 2	-16
End type 1	Female ORFS swivel
Finish plating	Dura-Kote
Hex size 1 IN	1.625
Hex size 1 MM	41.275
Hose cut off factor IN	2.870
Hose cut off factor MM	73.000
Hose size	-16
Inside diameter IN	0.760
Inside diameter MM	19.200
Product height in	1.100
Product height mm	27.940
Product length in	6.040
Product length mm	153.416
Product material	Carbon steel
Product width in	2.126
Product width mm	54.000 mm
Seal material	Ethylene Propylene (EPDM)
Series	1A/Z Series
Thread sealant	No
Thread size 1	1 7/16-12 UN
Tube OD 1 IN	1.000
Tube OD 1 MM	25.400
Working pressure max BAR	414
Working pressure max PSI	6000
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
