Danfoss 1BA20FJ20

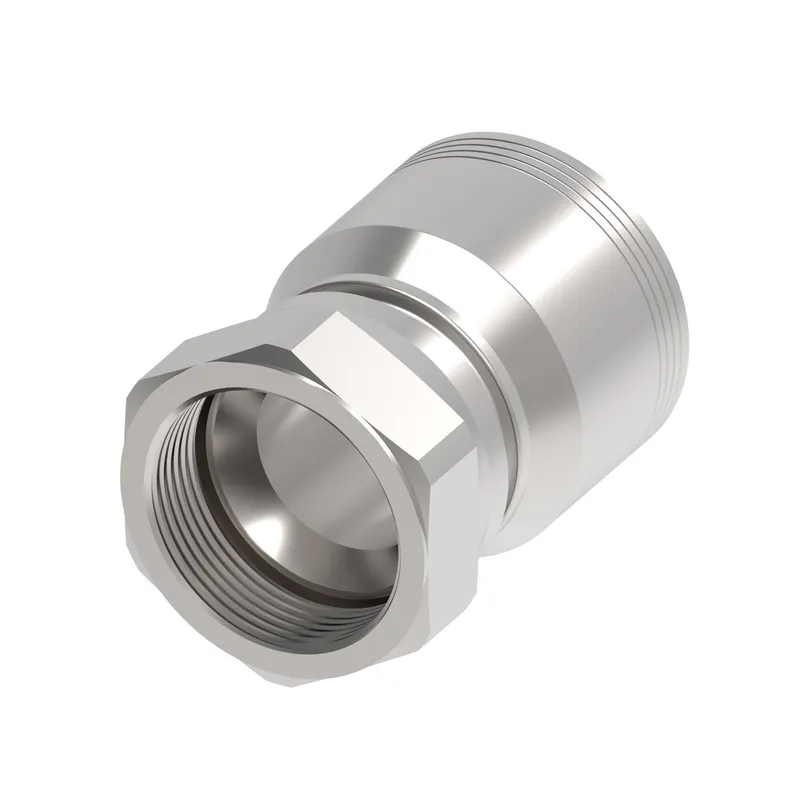

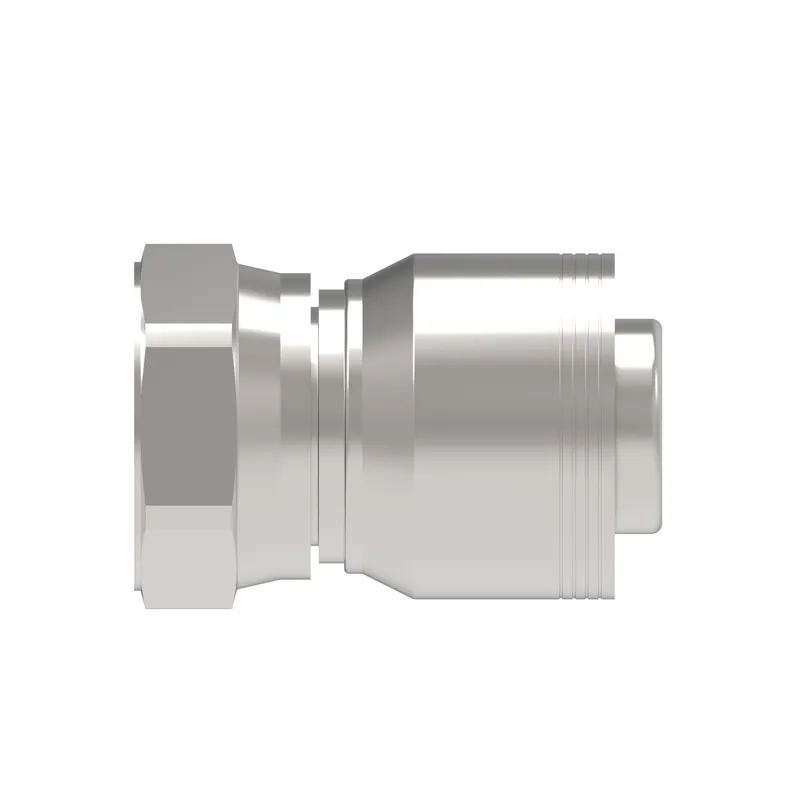

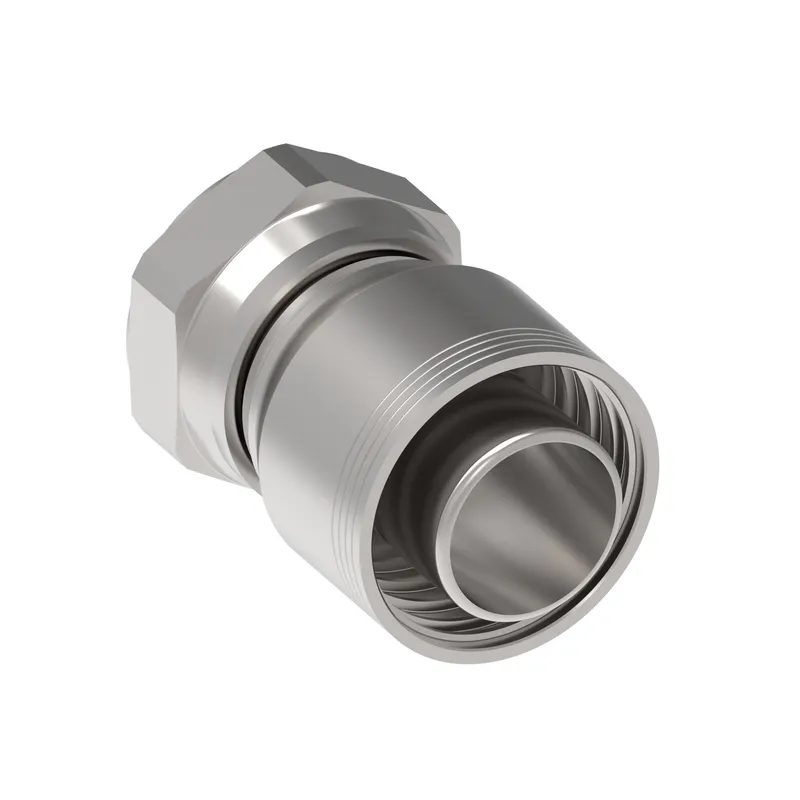

HOSE NIPPLE ASSY,4S/20,JIC-F/20,CS,STR

MPN: 1BA20FJ20
Category: Spiral hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1BA20FJ20?

Danfoss HOSE NIPPLE ASSY,4S/20,JIC-F/20,CS,STR, manufacturer part number 1BA20FJ20. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146130877
A dimension IN	3.430
A dimension MM	87.100
Angle shape	Straight
Compatible hose ID IN	1.250
Compatible hose ID MM	31.800
Compatible hoses	FC736, GH493, EC525 (Size dependent), FC636
Compatible tube OD IN	1.25
Compatible tube OD MM	31.750
Construction Style	Crimp
End connection torque	127-133 lb-ft(173-182 Nm)
End size 1	-20
End type 1	Female 37 degree swivel
Finish plating	Dura-Kote
Hex size 1 IN	2.000
Hex size 1 MM	50.800
Hose cut off factor IN	1.880
Hose cut off factor MM	47.800
Hose size	-20
Inside diameter IN	1.050
Inside diameter MM	26.600
Product height in	2.430
Product height mm	61.722
Product length in	3.430
Product length mm	87.122
Product material	Carbon steel
Product width in	2.430
Product width mm	61.722 mm
Series	B Series
Thread sealant	No
Thread size 1	1 5/8-12 UN
Tube OD 1 IN	1.250
Tube OD 1 MM	31.750
Working pressure max BAR	172
Working pressure max PSI	2500
Working temperature max C	149
Working temperature max F	300
Working temperature min C	-40
Working temperature min F	-40
