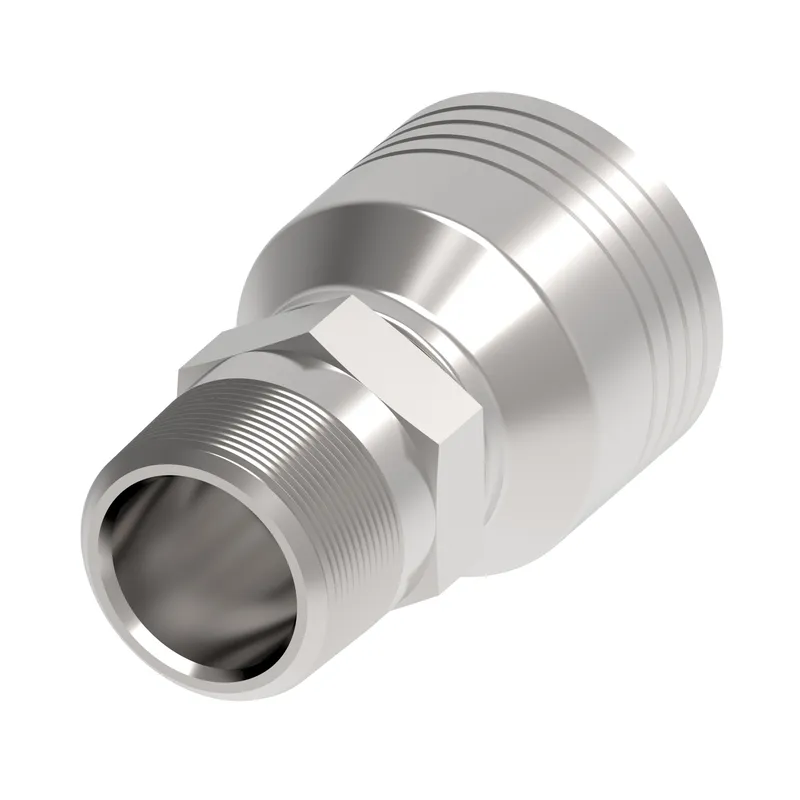

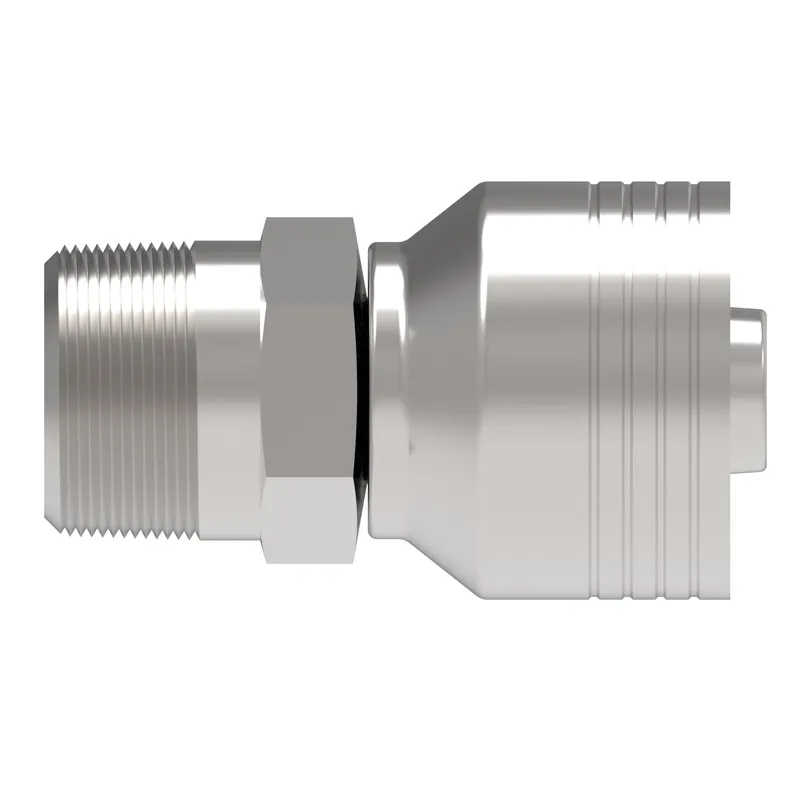

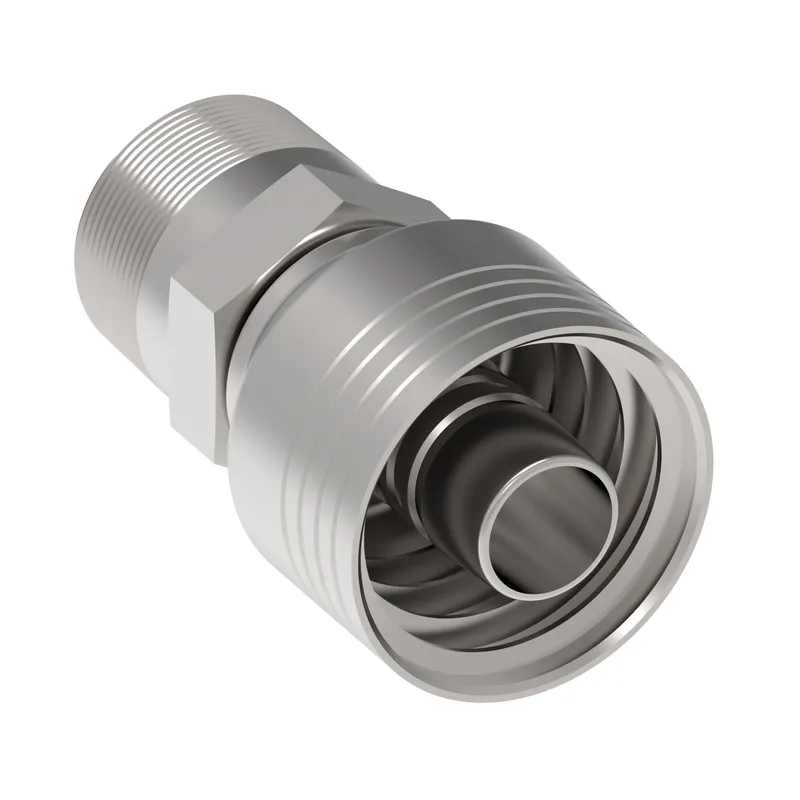

Danfoss 1BA16MP16

HOSE FTG, 4S/16, NPTF-M/16, CS, STR

MPN: 1BA16MP16
Category: Spiral hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1BA16MP16?

Danfoss HOSE FTG, 4S/16, NPTF-M/16, CS, STR, manufacturer part number 1BA16MP16. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146130822
A dimension IN	3.190
A dimension MM	81.100
Angle shape	Straight
Compatible hose ID IN	1.000
Compatible hose ID MM	25.400
Compatible hoses	EC525, FC736, GH493, FC636
Compatible tube OD IN	1.00
Compatible tube OD MM	25.400
Construction Style	Crimp
End size 1	-16
End type 1	Male pipe (NPTF)
Finish plating	Zinc plating
Hex size 1 IN	1.375
Hex size 1 MM	34.0
Hex size 2 IN	0.000
Hose cut off factor IN	1.860
Hose cut off factor MM	47.300
Hose size	-16
Inside diameter IN	0.8100
Inside diameter MM	20.7000
Product height in	2.080
Product height mm	52.832
Product length in	3.190
Product length mm	81.026
Product material	Carbon steel
Product width in	2.080
Product width mm	52.832 mm
Series	B Series
Thread sealant	No
Tube OD 1 IN	1.000
Tube OD 1 MM	25.400
Working pressure max BAR	276.00
Working pressure max PSI	4000.00
Working temperature max C	93
Working temperature max F	200
Working temperature min C	-40
Working temperature min F	-40
