Danfoss 1BA20FJ16

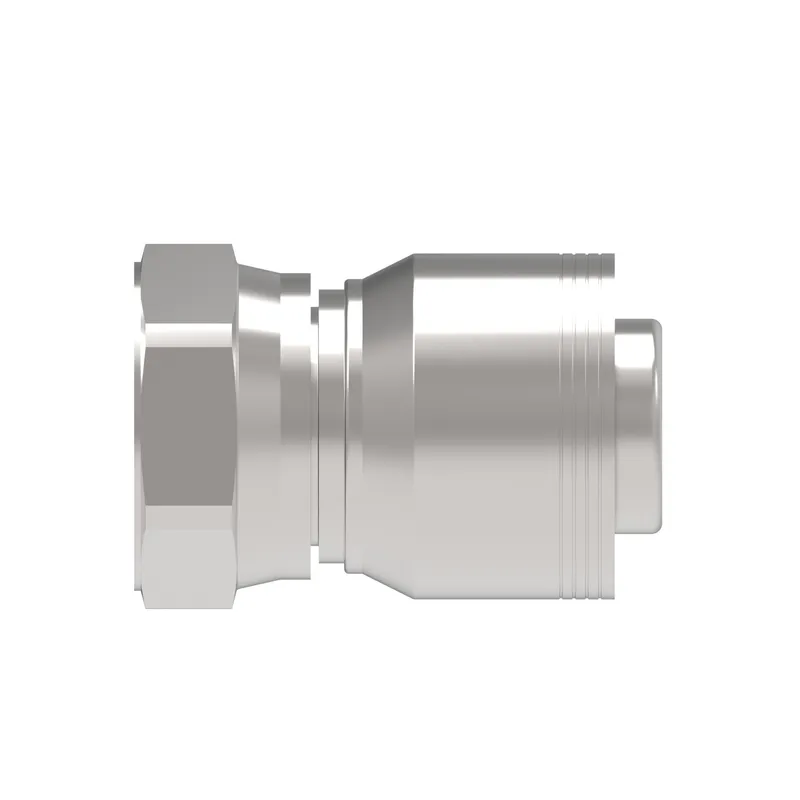

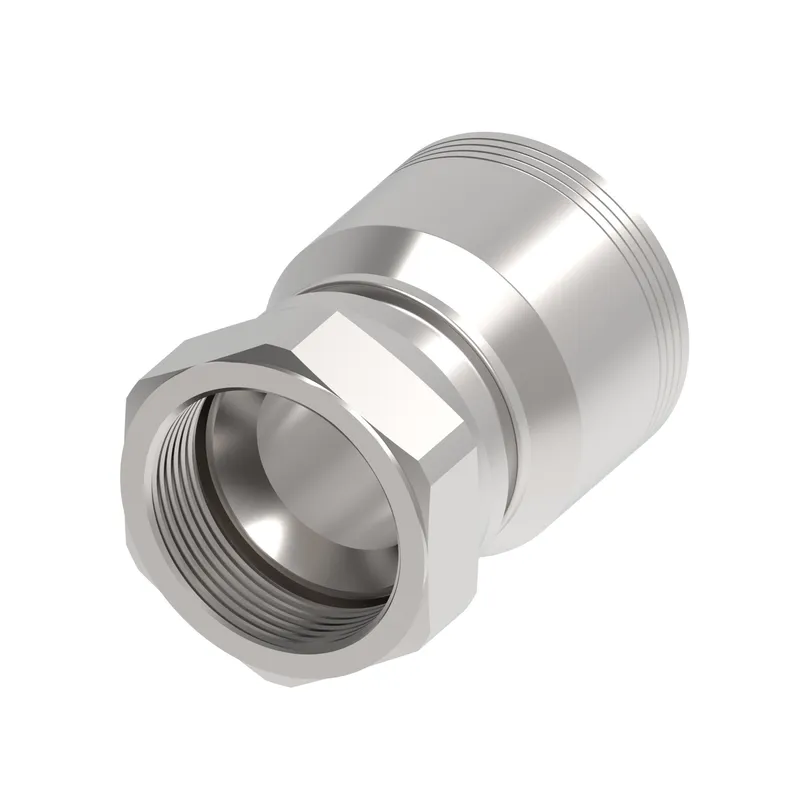

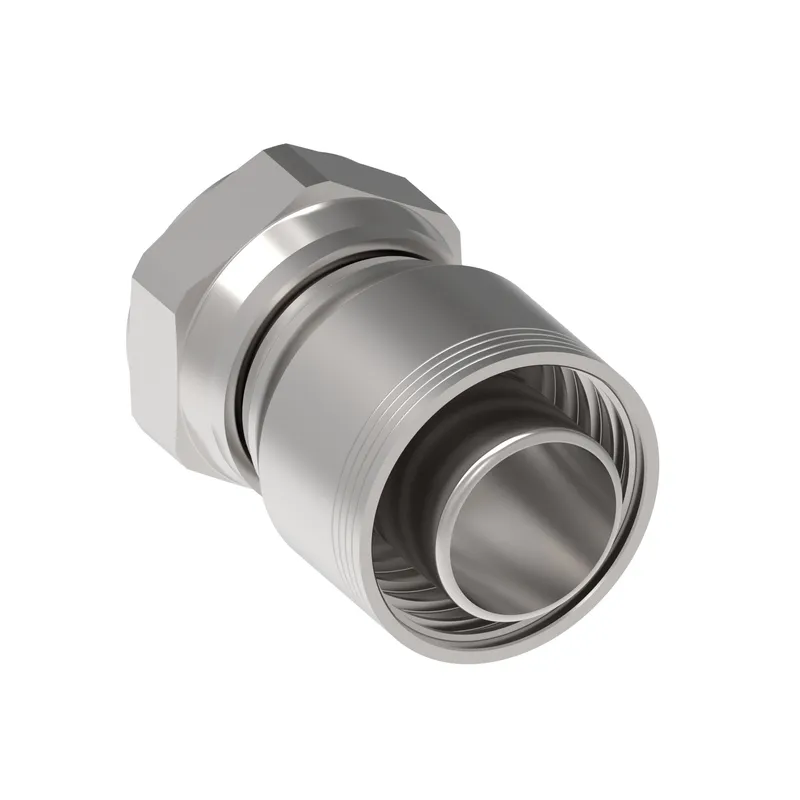

HOSE NIPPLE ASSY,4S/16,JIC-F/20,CS,STR

MPN: 1BA20FJ16
Category: Spiral hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1BA20FJ16?

Danfoss HOSE NIPPLE ASSY,4S/16,JIC-F/20,CS,STR, manufacturer part number 1BA20FJ16. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146130860
A dimension IN	3.150
A dimension MM	79.900
Angle shape	Straight
Brand	Aeroquip by Danfoss
Compatible hose ID IN	1.000
Compatible hose ID MM	25.400
Compatible hoses	EC525, FC736, GH493, FC636
Compatible tube OD IN	1.25
Compatible tube OD MM	31.750
Construction Style	Crimp
End connection torque	127-133 lb-ft(173-182 Nm)
End size 1	-20
End type 1	Female 37 degree swivel
Finish plating	Dura-Kote
Hex size 1 IN	2.000
Hex size 1 MM	50.800
Hose cut off factor IN	1.810
Hose cut off factor MM	46.100
Hose size	-16
Inside diameter IN	0.810
Inside diameter MM	20.700
Product height in	2.080
Product height mm	52.832
Product length in	3.150
Product length mm	80.010
Product material	Carbon steel
Product width in	2.080
Product width mm	52.832 mm
Series	B Series
Thread sealant	No
Thread size 1	1 5/8-12 UN
Tube OD 1 IN	1.250
Tube OD 1 MM	31.750
Working pressure max BAR	172
Working pressure max PSI	2500
Working temperature max C	149
Working temperature max F	300
Working temperature min C	-40
Working temperature min F	-40
