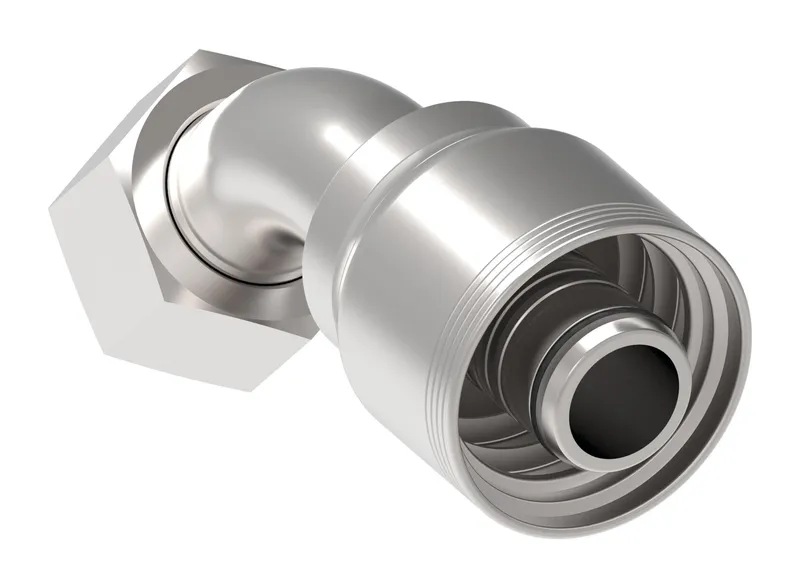

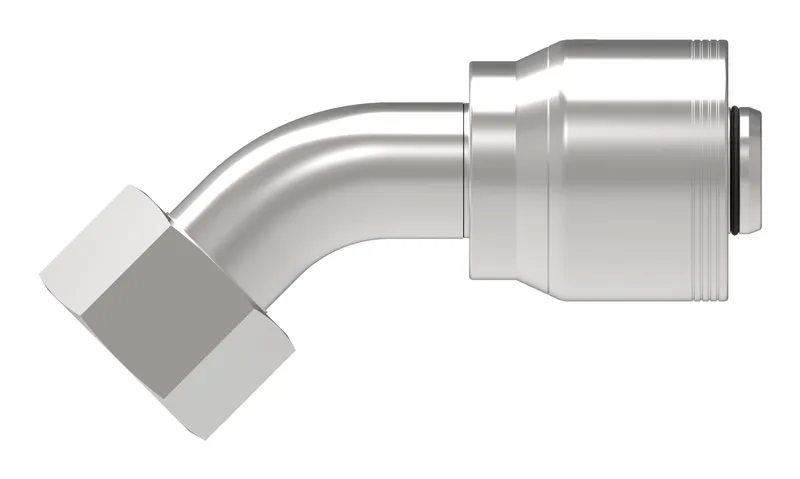

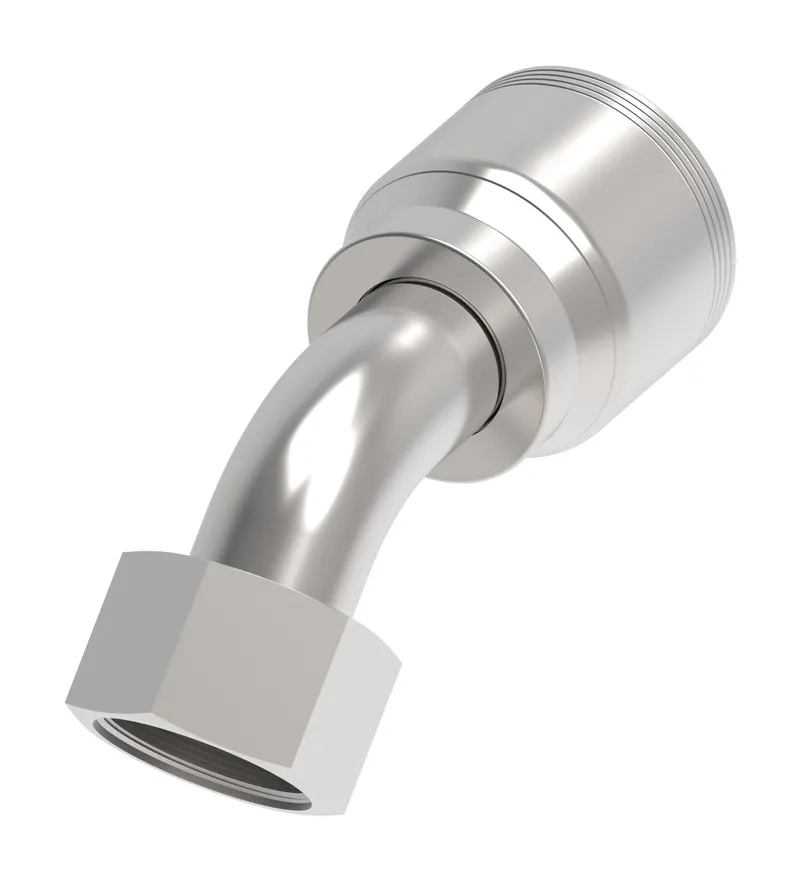

HOSE NIPPLE ASSY,4S/20,ORS-F/20,CS,45D
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Spiral hose and fittings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 1BA20FRA20 be shipped?
1BA20FRA20 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1BA20FRA20 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1BA20FRA20 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1BA20FRA20, subject to availability and destination.
Danfoss HOSE NIPPLE ASSY,4S/20,ORS-F/20,CS,45D, manufacturer part number 1BA20FRA20. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| EAN/UPC | 678146130938 |
| A dimension IN | 4.920 |
| A dimension MM | 124.900 |
| Angle shape | 45 Degree |
| Compatible hose ID IN | 1.250 |
| Compatible hose ID MM | 31.800 |
| Compatible hoses | EC525, FC736, GH493, FC636 |
| Construction Style | Crimp |
| Drop dimension IN | 1.000 |
| Drop dimension MM | 25.40 |
| End connection torque | 125-140 lb-ft(170-190 Nm) |
| End size 1 | -20 |
| End type 1 | Female ORFS swivel |
| Finish plating | Zinc plating |
| Hex size 1 IN | 1.875 |
| Hex size 1 MM | 47.625 |
| Hose cut off factor IN | 3.370 |
| Hose cut off factor MM | 85.600 |
| Hose size | -20 |
| Inside diameter IN | 1.020 |
| Inside diameter MM | 26.000 |
| Product height in | 1.670 |
| Product height mm | 0.757 |
| Product length in | 4.920 |
| Product length mm | 124.968 |
| Product material | Carbon steel |
| Product width in | 2.430 |
| Product width mm | 61.722 mm |
| Series | B Series |
| Thread sealant | No |
| Thread size 1 | 1 11/16-12 UN |
| Working pressure max BAR | 310 |
| Working pressure max PSI | 4500 |
| Working temperature max C | 149 |
| Working temperature max F | 300 |
| Working temperature min C | -40 |
| Working temperature min F | -40 |
