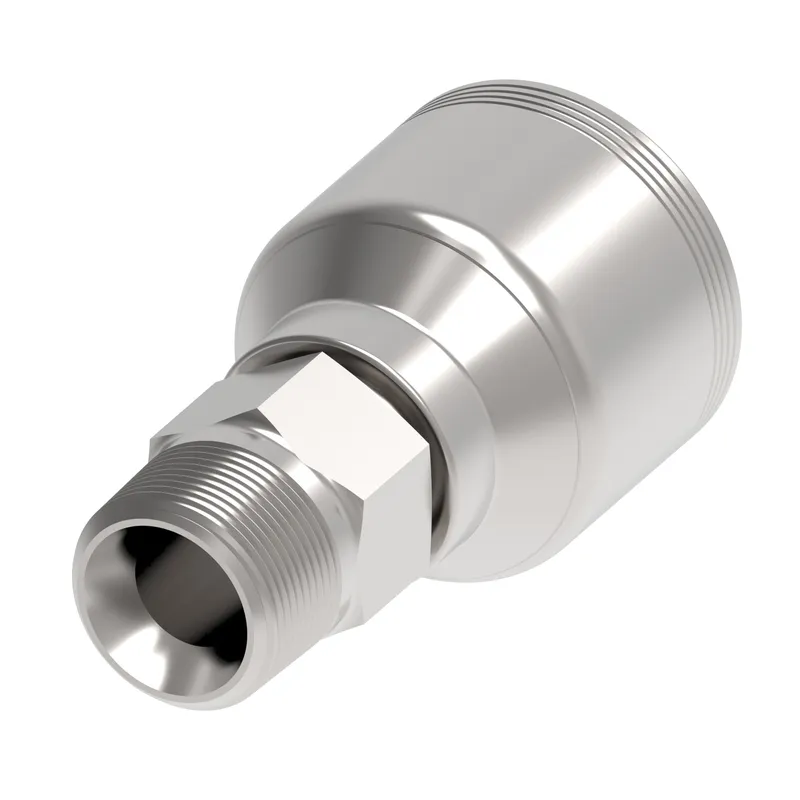

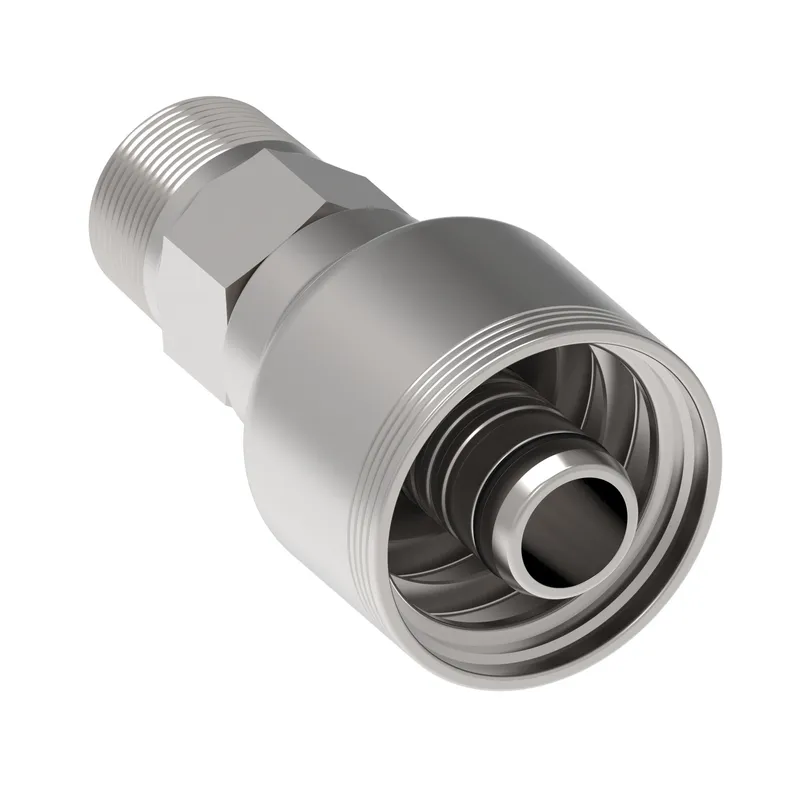

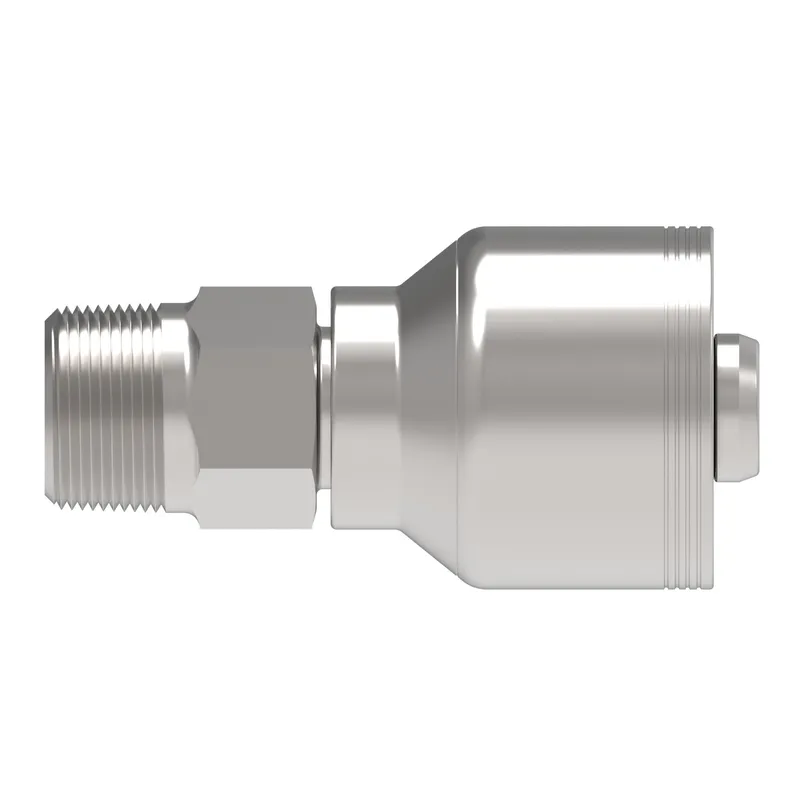

Danfoss 1BA16MP12

HOSE NIPPLE ASSY,4S/12,NPTF-M/16,CS,STR

MPN: 1BA16MP12
Category: Spiral hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1BA16MP12?

Danfoss HOSE NIPPLE ASSY,4S/12,NPTF-M/16,CS,STR, manufacturer part number 1BA16MP12. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146130815
A dimension IN	3.340
A dimension MM	84.800
Angle shape	Straight
Compatible hose ID IN	0.750
Compatible hose ID MM	19.000
Compatible hoses	FC616, FC659, FC736, GH493, 2661 (Size dependent), FC136, FC318 (Size dependent), FC636
Compatible tube OD IN	1.00
Compatible tube OD MM	25.400
Construction Style	Crimp
End size 1	-16
End type 1	Male pipe (NPTF)
Finish plating	Dura-Kote
Hex size 1 IN	1.375
Hex size 1 MM	34.925
Hose cut off factor IN	1.910
Hose cut off factor MM	48.600
Hose size	-12
Inside diameter IN	0.560
Inside diameter MM	14.200
Product height in	1.657
Product height mm	42.087
Product length in	2.800
Product length mm	71.120
Product material	Carbon steel
Product width in	1.657
Product width mm	42.087 mm
Series	B Series
Thread sealant	No
Tube OD 1 IN	1.000
Tube OD 1 MM	25.400
Working pressure max BAR	276
Working pressure max PSI	4000
Working temperature max C	93
Working temperature max F	200
Working temperature min C	-40
Working temperature min F	-40

1BA16MP12: frequently asked questions

When can 1BA16MP12 be shipped?

1BA16MP12 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1BA16MP12 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1BA16MP12 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1BA16MP12, subject to availability and destination.
