Danfoss 1BA16FRB12

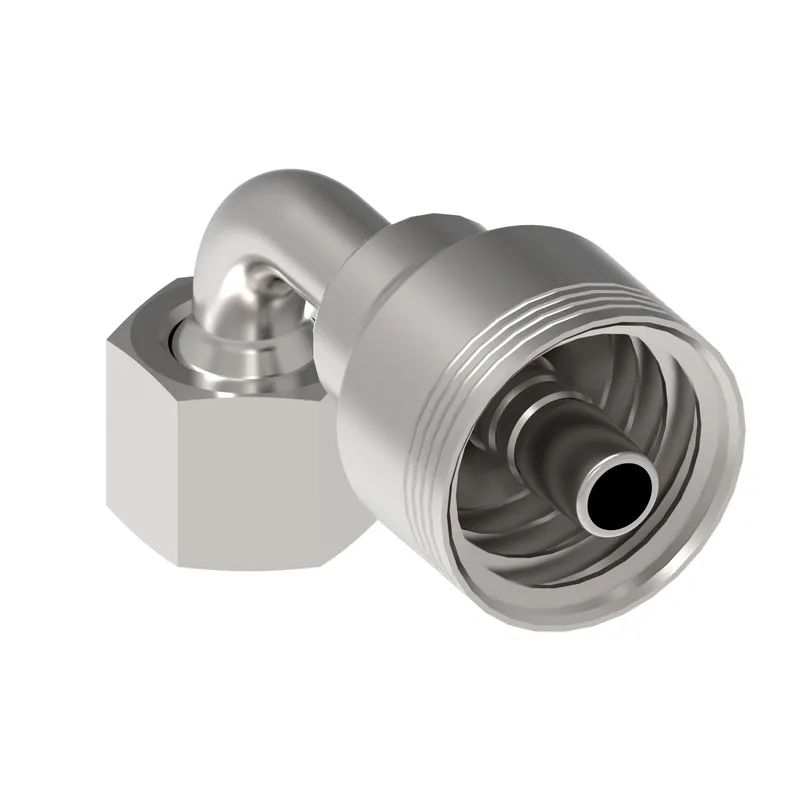

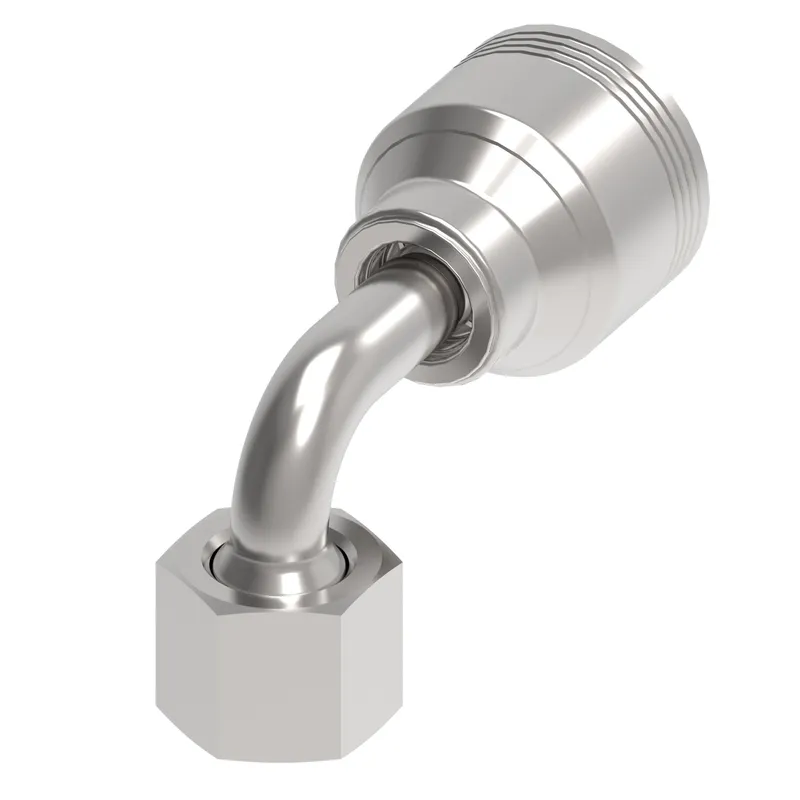

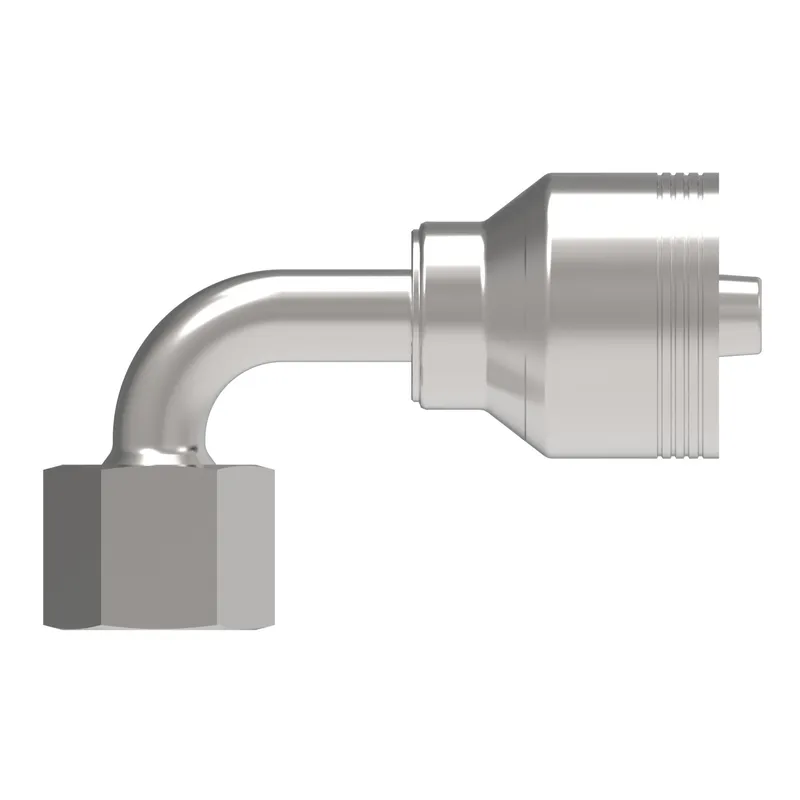

HOSE NIPPLE ASSY,4S/12,ORS-F/16,CS,90D

MPN: 1BA16FRB12
Category: Spiral hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1BA16FRB12?

Danfoss HOSE NIPPLE ASSY,4S/12,ORS-F/16,CS,90D, manufacturer part number 1BA16FRB12. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146130754
A dimension IN	3.910
A dimension MM	99.400
Angle shape	90 Degree
Compatible hose ID IN	0.750
Compatible hose ID MM	19.000
Compatible hoses	FC616, FC659, FC736, GH493, 2661 (Size dependent), FC136, FC318 (Size dependent), FC636
Compatible tube OD IN	1.00
Compatible tube OD MM	25.400
Construction Style	Crimp
Drop dimension IN	2.210
Drop dimension MM	56.10
End connection torque	92-100 lb-ft(125-136 Nm)
End size 1	-16
End type 1	Female ORFS swivel
Finish plating	Dura-Kote
Hex size 1 IN	1.625
Hex size 1 MM	41.000
Hex size 2 IN	0.000
Hex size 2 MM	41.148
Hose cut off factor IN	2.850
Hose cut off factor MM	72.300
Hose size	-12
Inside diameter IN	0.550
Inside diameter MM	13.900
Product height in	2.210
Product height mm	56.134
Product length in	4.040
Product length mm	102.616
Product material	Carbon steel
Product width in	1.657
Product width mm	42.087 mm
Series	B Series
Thread sealant	No
Thread size 1	1 7/16-12 UN
Tube OD 1 IN	1.000
Tube OD 1 MM	25.400
Working pressure max BAR	414
Working pressure max PSI	6000
Working temperature max C	149
Working temperature max F	300
Working temperature min C	-40
Working temperature min F	-40
