Danfoss 1B24FLE20

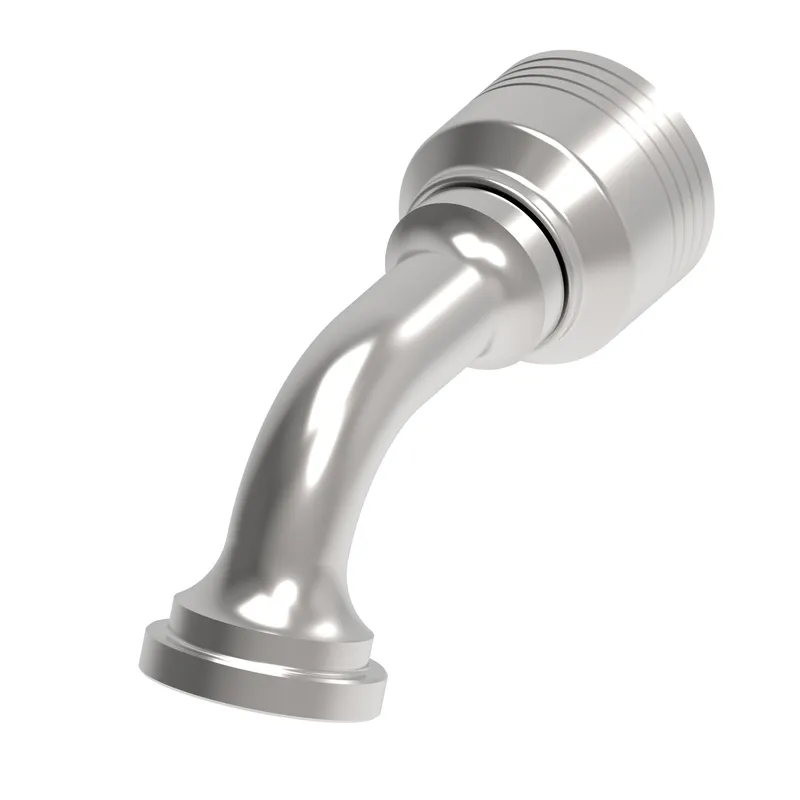

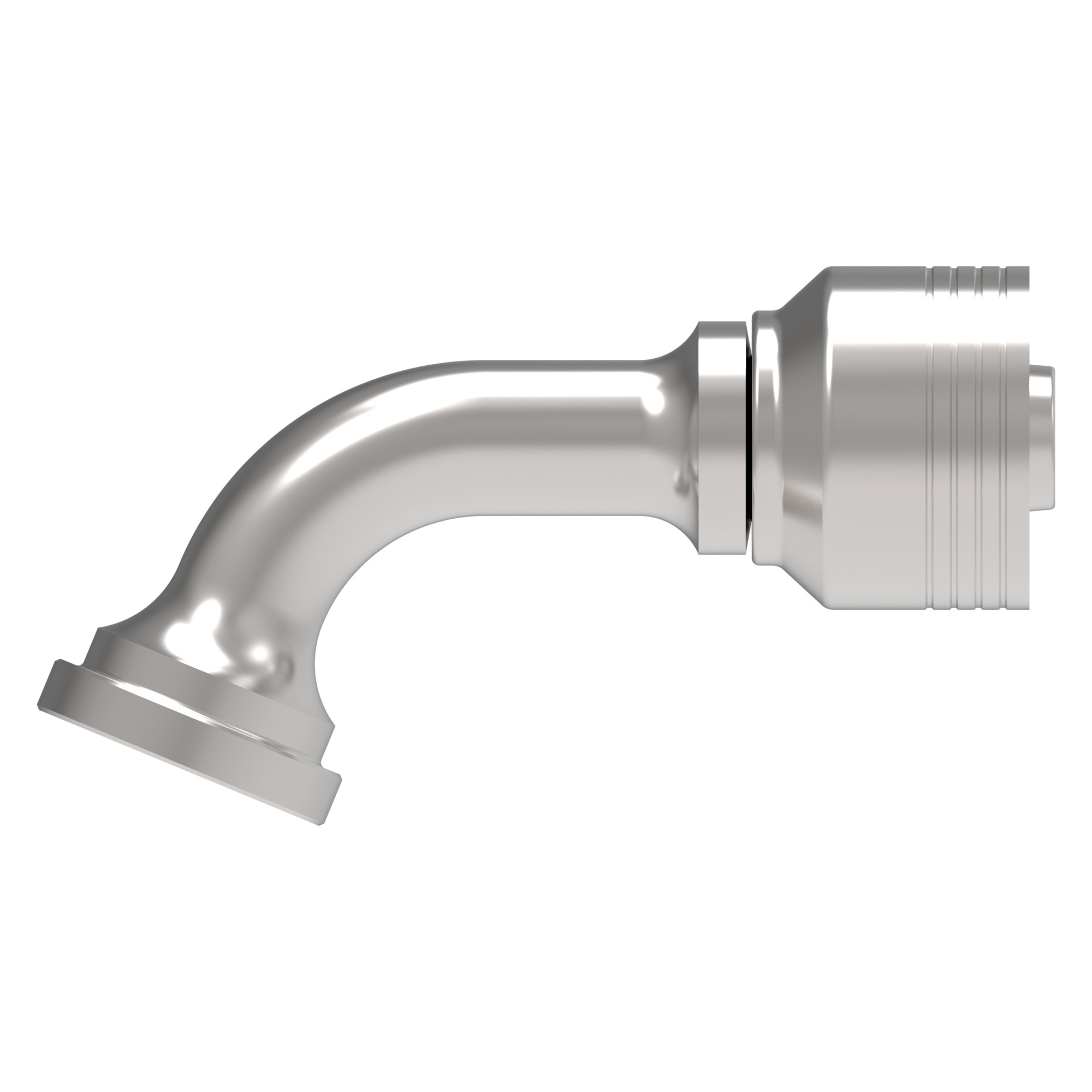

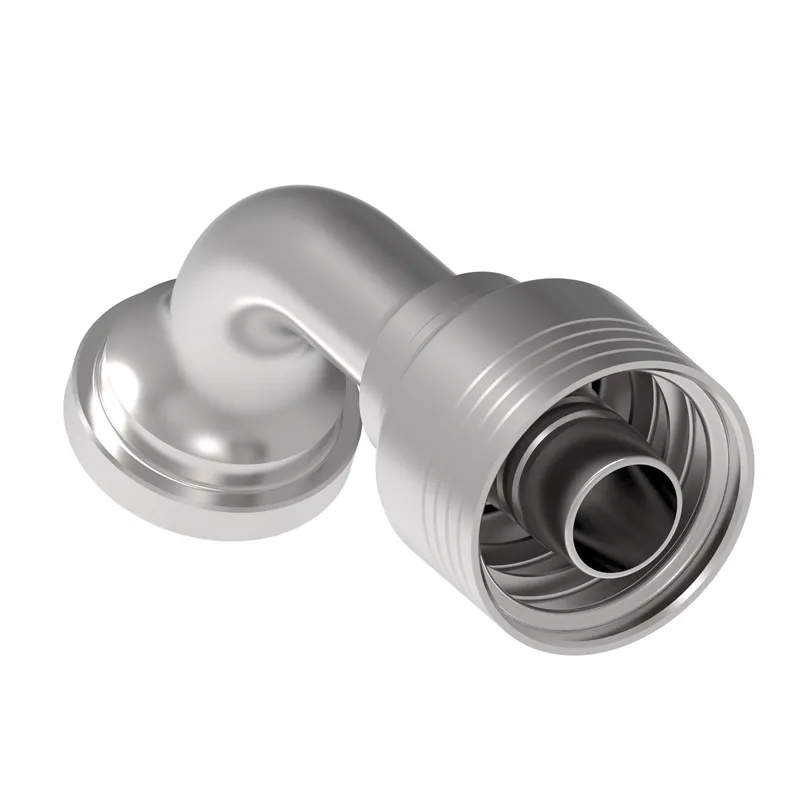

HOSE NIPPLE ASSY,4S/20,C61/24,CS,67.5D

MPN
1B24FLE20
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1B24FLE20?

Danfoss HOSE NIPPLE ASSY,4S/20,C61/24,CS,67.5D, manufacturer part number 1B24FLE20. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

EAN/UPC678146129673
A dimension IN5.990
A dimension MM152.100
Angle shape67.5 Degree
Compatible hose ID IN1.250
Compatible hose ID MM31.800
Compatible hosesGH493
Construction StyleCrimp
Drop dimension IN1.836
Drop dimension MM46.63
End size 1-24
End type 1Split flange code 61
Finish platingZinc plating
Hose cut off factor IN4.440
Hose cut off factor MM112.900
Hose size-20
Inside diameter IN1.010
Inside diameter MM25.700
Product height in3.050
Product height mm77.490
Product length in7.173
Product length mm182.200
Product materialCarbon steel
Product width in2.429
Product width mm61.720 mm
SeriesB Series
Thread sealantNo
Working pressure max BAR206
Working pressure max PSI2950
Working temperature max C126
Working temperature max F260
Working temperature min C-40
Working temperature min F-40

1B24FLE20: frequently asked questions

When can 1B24FLE20 be shipped?

1B24FLE20 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1B24FLE20 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1B24FLE20 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1B24FLE20, subject to availability and destination.
