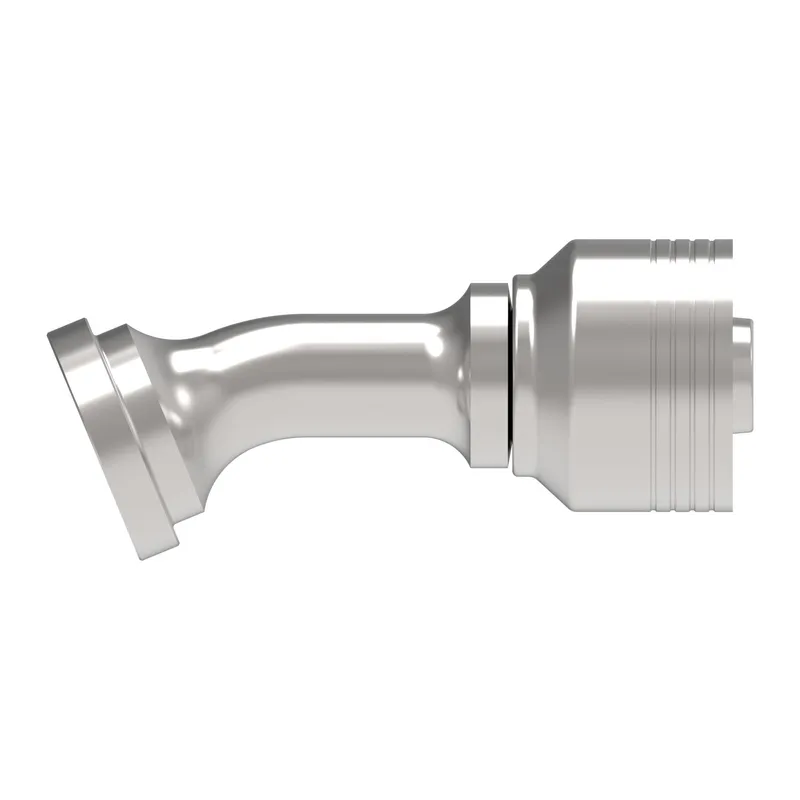

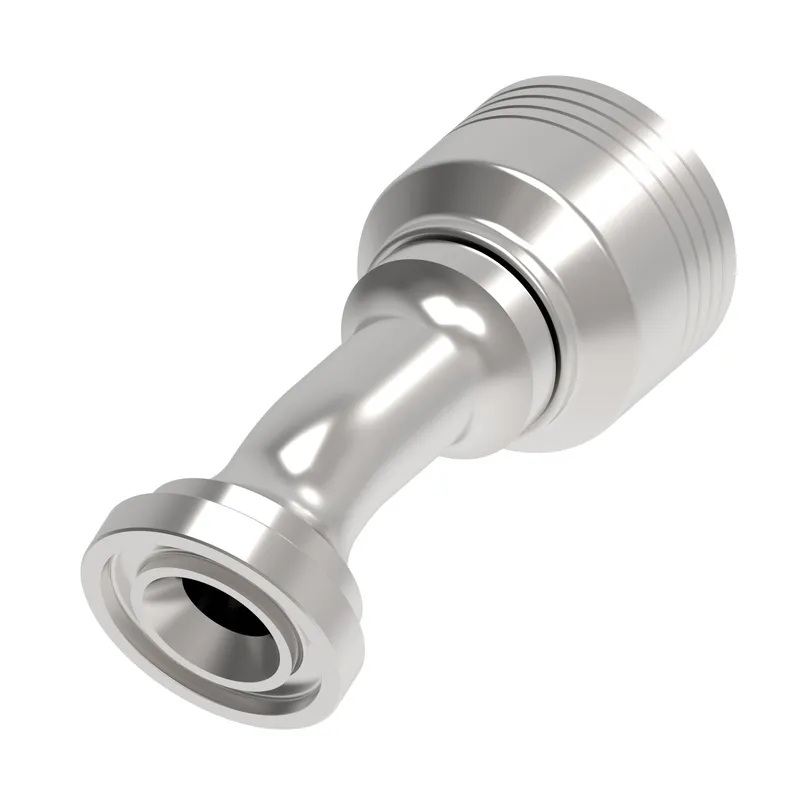

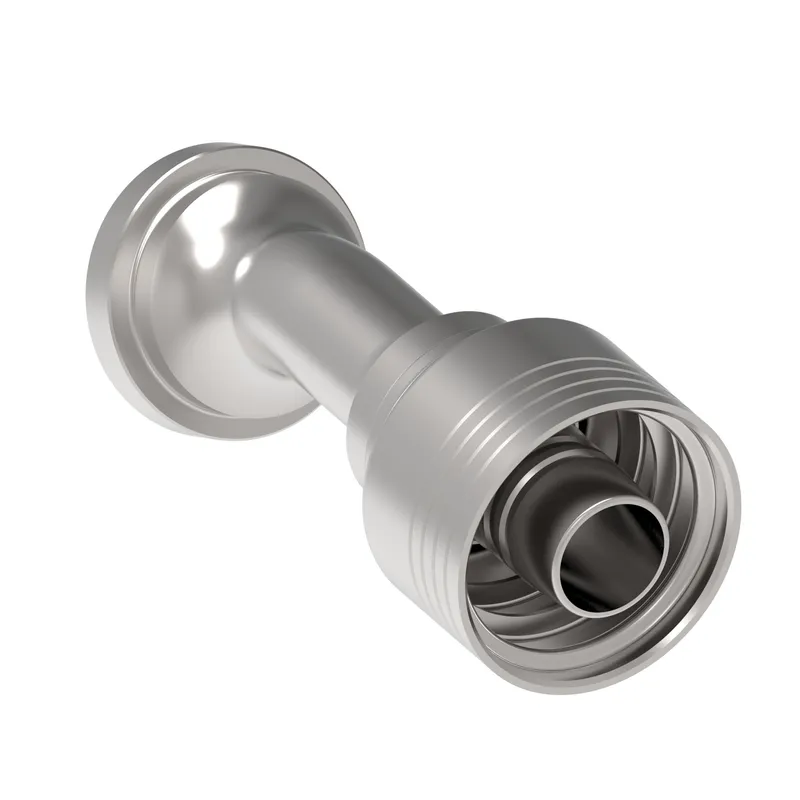

HOSE NIPPLE ASSY,4S/20,C61/24,CS,22.5D
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Spiral hose and fittings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 1B24FLD20 be shipped?
1B24FLD20 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1B24FLD20 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1B24FLD20 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1B24FLD20, subject to availability and destination.
Danfoss HOSE NIPPLE ASSY,4S/20,C61/24,CS,22.5D, manufacturer part number 1B24FLD20. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| EAN/UPC | 678146129659 |
| A dimension IN | 6.129 |
| A dimension MM | 155.700 |
| Angle shape | 22.5 Degree |
| Compatible hose ID IN | 1.250 |
| Compatible hose ID MM | 31.800 |
| Compatible hoses | GH493 |
| Construction Style | Crimp |
| Drop dimension IN | 0.562 |
| Drop dimension MM | 14.30 |
| End size 1 | -24 |
| End type 1 | Split flange code 61 |
| Finish plating | Zinc plating |
| Hex size 1 IN | 0.000 |
| Hex size 1 MM | 0.000 |
| Hex size 2 IN | 0.000 |
| Hose cut off factor IN | 4.582 |
| Hose cut off factor MM | 116.400 |
| Hose size | -20 |
| Inside diameter IN | 1.011 |
| Inside diameter MM | 25.700 |
| Product height in | 1.770 |
| Product height mm | 45.160 |
| Product length in | 6.129 |
| Product length mm | 155.700 |
| Product material | Carbon steel |
| Product width in | 2.429 |
| Product width mm | 61.720 mm |
| Series | B Series |
| Thread sealant | No |
| Working pressure max BAR | 206 |
| Working pressure max PSI | 2950 |
| Working temperature max C | 121 |
| Working temperature max F | 250 |
| Working temperature min C | -40 |
| Working temperature min F | -40 |
