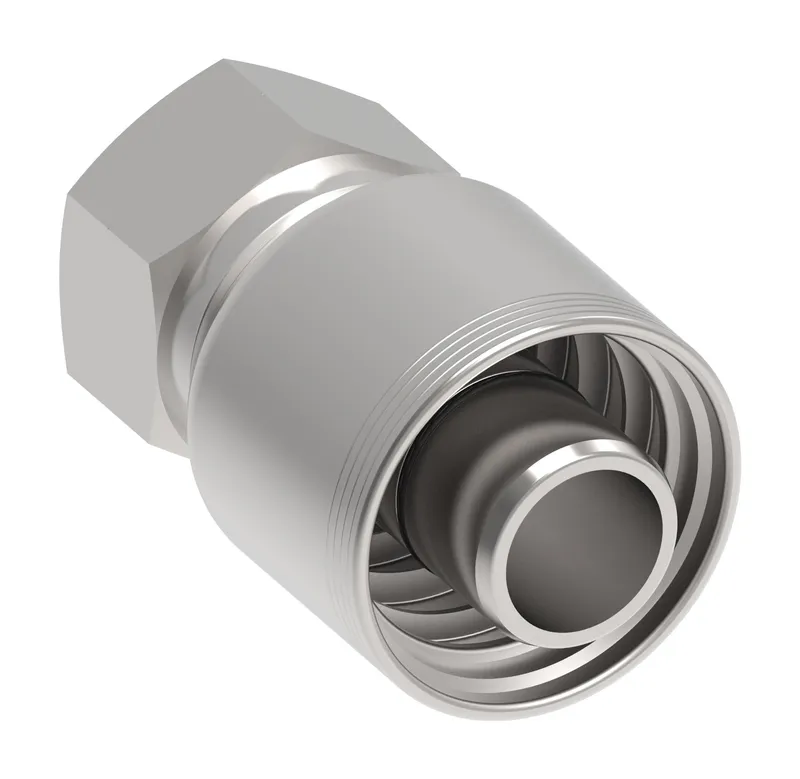

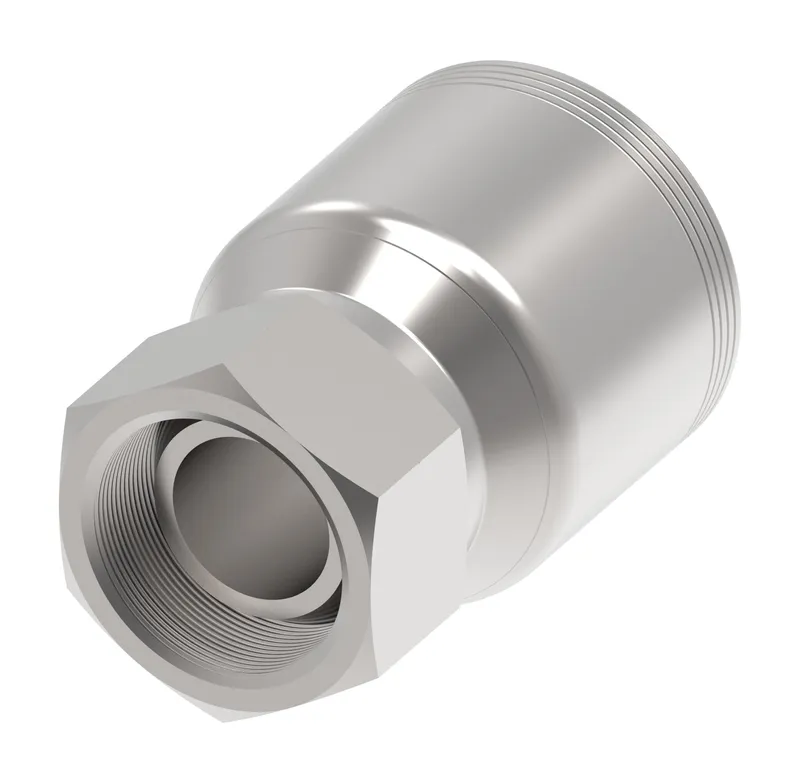

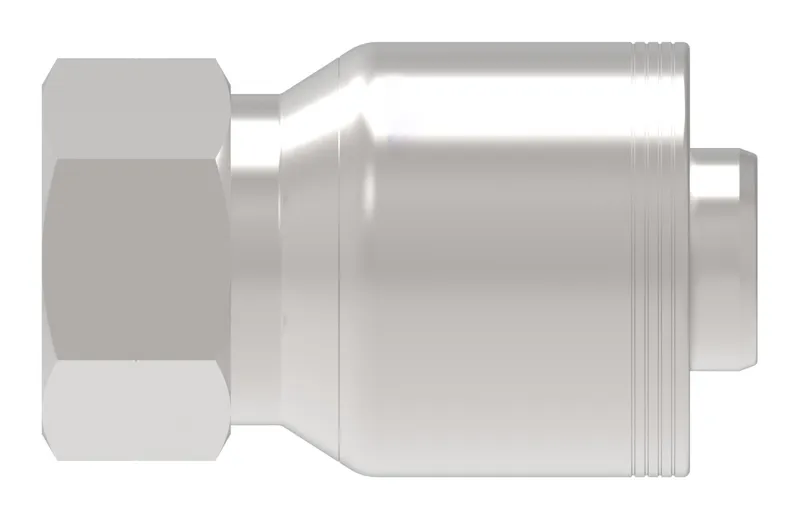

Danfoss 1B24BF24

HOSE NIPPLE ASSY, 4S/24, BF/24, CS, STR

MPN
1B24BF24
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1B24BF24?

Danfoss HOSE NIPPLE ASSY, 4S/24, BF/24, CS, STR, manufacturer part number 1B24BF24. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

EAN/UPC678146129505
A dimension IN4.640
A dimension MM117.900
Angle shapeStraight
Compatible hose ID IN1.500
Compatible hose ID MM38.100
Compatible hosesFC616, FC659, FC736, GH493, 2661 (Size dependent), FC136, FC318 (Size dependent), FC636
Compatible tube OD IN1.50
Compatible tube OD MM38.100
Construction StyleCrimp
End connection torque258-347 lb-ft(350-470 Nm)
End size 1-24
End type 1Female BSPP swivel
Finish platingDura-Kote
Hex size 1 IN2.165
Hex size 1 MM54.991
Hose cut off factor IN1.570
Hose cut off factor MM39.800
Hose size-24
Inside diameter IN1.220
Inside diameter MM31.100
Product height in2.731
Product height mm69.367
Product length in3.149
Product length mm79.984
Product materialCarbon steel
Product width in2.731
Product width mm69.367 mm
Seal materialEthylene propylene (EPDM)
SeriesB Series
Thread sealantNo
Thread size 1G 1 1/2
Tube OD 1 IN1.500
Tube OD 1 MM38.100
Working pressure max BAR138
Working pressure max PSI2000
Working temperature max C121
Working temperature max F250
Working temperature min C-40
Working temperature min F-40

1B24BF24: frequently asked questions

When can 1B24BF24 be shipped?

1B24BF24 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1B24BF24 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1B24BF24 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1B24BF24, subject to availability and destination.
